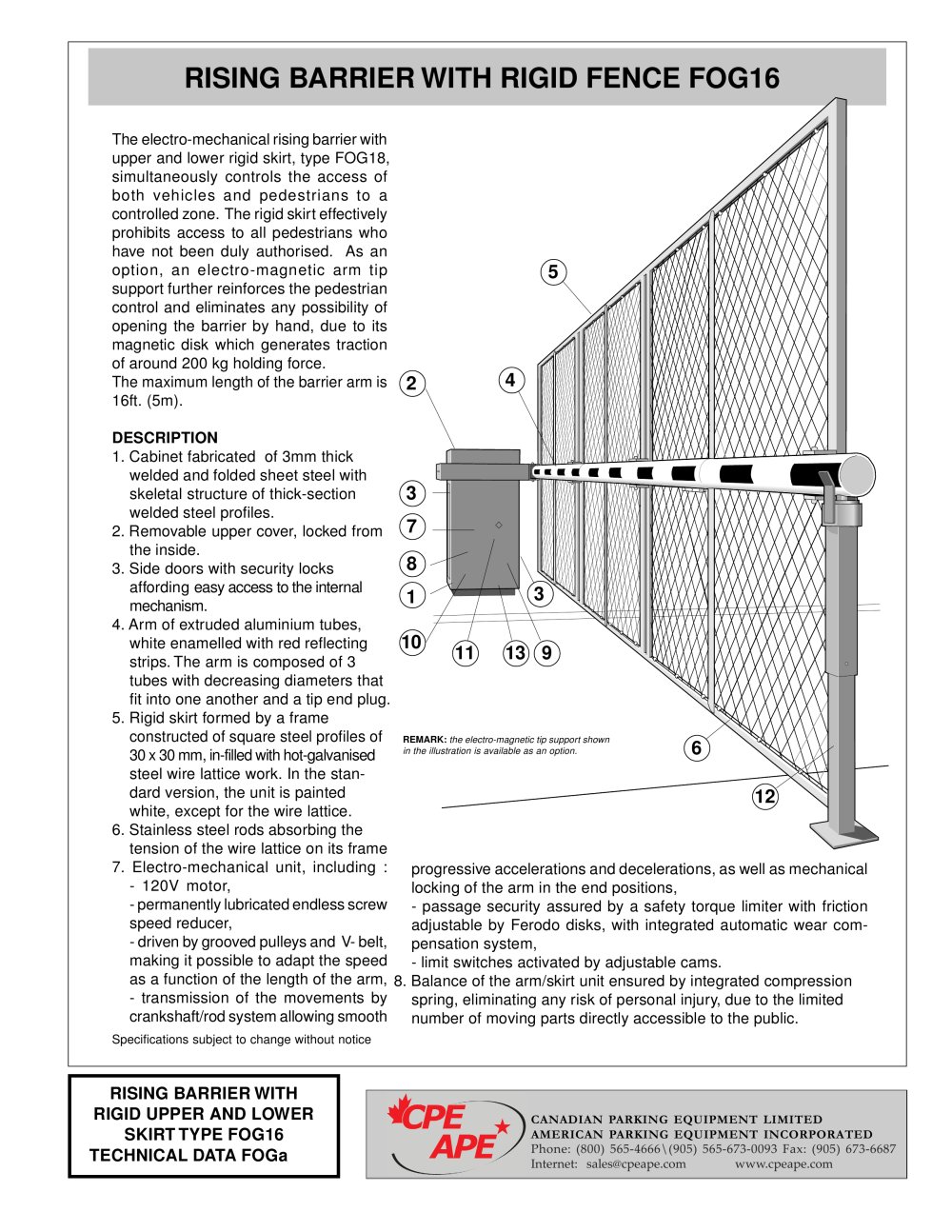

FOG-16 Rising Fence Barrier
2Pages

The electro-mechanical rising barrier with upper and lower rigid skirt, type FOG18, simultaneously controls the access of both vehicles and pedestrians to a controlled zone. The rigid skirt effectively prohibits access to all pedestrians who have not been duly authorised. As an option, an electro-magnetic arm tip support further reinforces the pedestrian control and eliminates any possibility of opening the barrier by hand, due to its magnetic disk which generates traction of around 200 kg holding force. The maximum length of the barrier arm is 16ft. (5m). DESCRIPTION 1. Cabinet fabricated of 3mm thickwelded and folded sheet steel with skeletal structure of thick-section welded steel profiles.2. Removable upper cover, locked fromthe inside.3. Side doors with security locksaffording easy access to the internalmechanism.4. Arm of extruded aluminium tubes,white enamelled with red reflecting strips. The arm is composed of 3 tubes with decreasing diameters that fit into one another and a tip end plug.5. Rigid skirt formed by a frame > constructed of square steel profiles of 30 x 30 mm, in-filled with hot- > REMARK: the electro-magnetic tip support shownin the illustration is available as an option. galvanisedsteel wire lattice work. In the stan- dard version, the unit is painted white, except for the wire lattice.6. Stainless steel rods absorbing thetension of the wire lattice on its frame7. Electro-mechanical unit, including :- 120V motor, - permanently lubricated endless screw speed reducer, - driven by grooved pulleys and V- belt, making it possible to adapt the speed as a function of the length of the arm, - transmission of the movements by crankshaft/rod system allowing smoothprogressive accelerations and decelerations, as well as mechanicallocking of the arm in the end positions, - passage security assured by a safety torque limiter with friction adjustable by Ferodo disks, with integrated automatic wear com- pensation system, - limit switches activated by adjustable cams.8. Balance of the arm/skirt unit ensured by integrated compressionspring, eliminating any risk of personal injury, due to the limited number of moving parts directly accessible to the public. > Specifications subject to change without notice CANADIAN PARKING EQUIPMENT LIMITEDAMERICAN PARKING EQUIPMENT INCORPORATED
