Coxreels EZ-Coil Catalog

Product catalog summary

Introduction to EZ-Coil® Technology
Coxreels' EZ-Coil® products, painted blue starting January 1st, 2007, feature patented technology (U.S. Patents No. 6,799,738 and No. 6,234,417) that reduces retraction speed by up to 80%, enhancing safety and reducing wear.

The Coxreels Advantage
Coxreels manufactures high-quality hose, cord, and cable reels in the USA, offering a 2-year limited warranty. The company uses proprietary powder coating and automated systems for unmatched manufacturing quality.

Product Specifications

EZ-SH, MP & HP Series: Heavy-duty safety hose reels with hose I.D. from 1/4” to 3/4”, pressures up to 5,000 PSI, and lengths up to 100’.
EZ-P Series: Performance safety hose reels with hose I.D. from 1/4” to 1/2”, pressures up to 5,000 PSI, and lengths up to 50’.
EZ-E Series: Enclosed metal cabinets with specifications similar to the EZ-P series.
EZ-T Series: Supreme duty safety hose reels for rugged mobile applications, featuring dual pedestal-style support arms and base.

Performance and Safety Features

Significantly reduced retraction speed minimizes accident risks.
Heavy-duty steel construction with durable powder coat paint.
Features include auto rewind, multi-position lock ratchet, and non-corrosive components.

Mounting Options
Various mounting brackets are available for overhead and vertical surface mounting, allowing flexible installation.

Conclusion
Coxreels' EZ-Coil™ Safety Series reels ensure professional-grade performance, safety, and efficiency in industrial settings, setting a high industry standard.

Specifications

Construction: Heavy-duty steel with proprietary CPC powder coat paint for durability.
Spring Motor: Factory-matched cartridge-style spring motor for reliability.
Swivel Inlet: Brass NPT swivel inlet with zinc-plated steel on high-pressure models.
Axle and Bearings: 1” solid steel axle with lubricated precision bearings.
Locking Mechanism: Multi-position lock ratchet for securing hose length.

Features

EZ-Coil™ Technology: Retracts up to 80% slower for enhanced safety and longevity.
Expandable Systems: EZ-E series offers expandable multiple bank systems.
Versatile Mounting: Options for overhead, vertical, and horizontal mounting.
Safety and Protection: Non-corrosive stainless steel spring, pawl, and zinc-plated ratchet.

Models and Applications

Low Pressure Models: Suitable for air or water service, max temperature 150°F.
Medium Pressure Reels: For air, water, or oil, max temperature 250°F.
High Pressure Reels: For grease and hydraulic oil, max temperature 250°F.
Welding Hose Reels: For twin line welding hoses, suitable for gases like MAPP, propane, and natural gas.

Additional Options

Various mounting brackets for different installations.
Solid rubber hose stops and protective spring guards.

Warranty and Support
All products come with a 2-year limited warranty and are made in the USA, with global sales and support.

EZ-PC Series Power Cord Reels

Indoor use only, rated at 115 volts, 60 Hz single phase.
Features EZ-Coil™ technology for slower retraction.
Available with various cord lengths and accessories.
Constructed with heavy gauge powder-coated steel and dual axle support.
Includes a 5’ pigtail and grounded plug, with mounting options.

EZ-SD Series Static Discharge Cable Reels

Designed for combustible environments to prevent static buildup.
Features high visibility orange vinyl cable cover and grounding clamps.
Constructed with heavy-duty steel and non-sparking locking ratchet.
Available with galvanized or stainless steel cables.

Warranty and Return Policy

Two-year limited warranty covering defects in materials and workmanship.
Returns require authorization and are subject to fees.
Custom products and special orders are non-returnable.

Additional Features

Products are made in the USA and supported worldwide.
Includes merchandising display options for sales enhancement.

Catalog excerpts

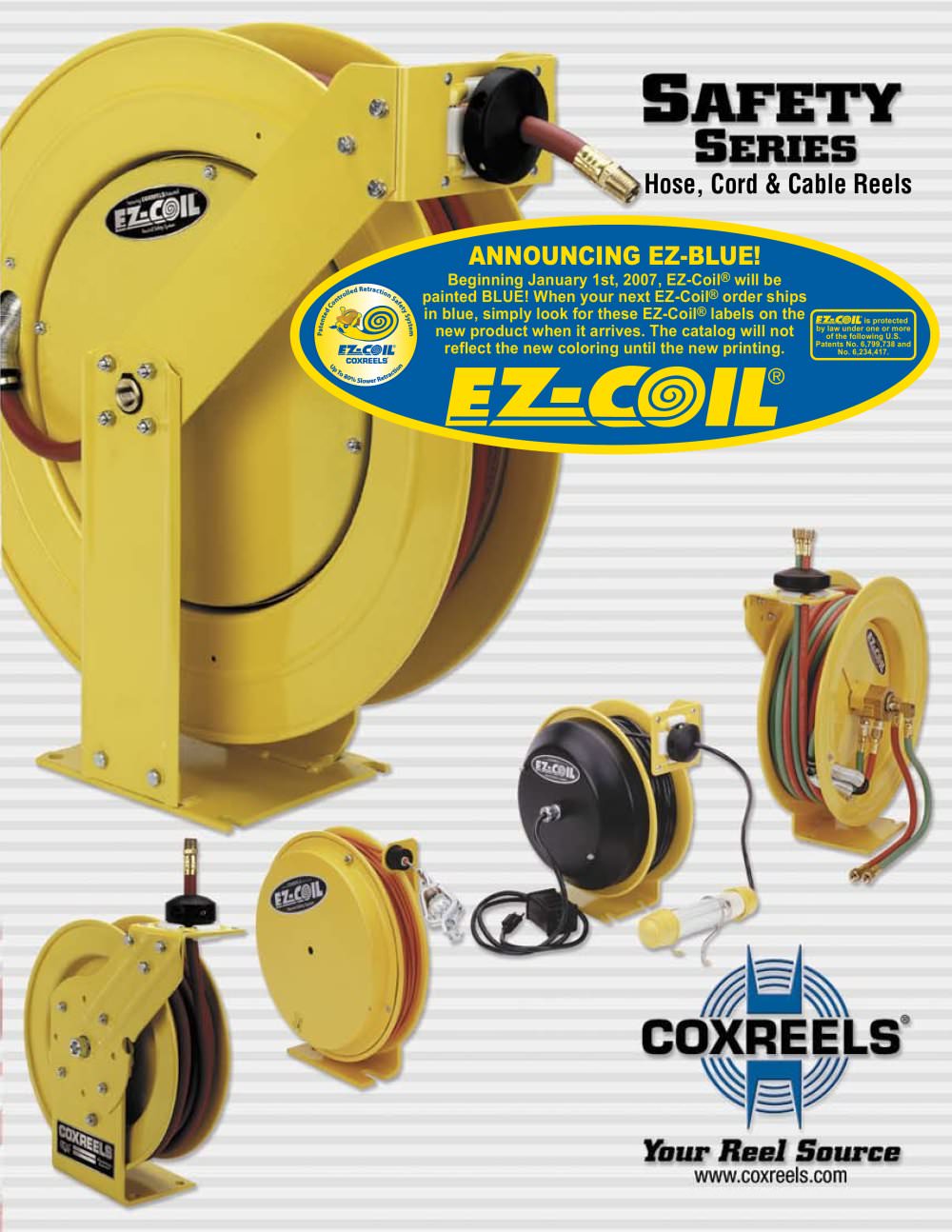

Hose, Cord & Cable Reels ANNOUNCING EZ-BLUE! Beginning January 1st, 2007, EZ-Coil® will be painted BLUE! When your next EZ-Coil® order ships in blue, simply look for these EZ-Coil® labels on the new product when it arrives. The catalog will not reflect the new coloring until the new printing. is protected by law under one or more of the following U.S. Patents No. 6,799,738 and No. 6,234,417.

Open the catalog to page 1

Toll Free 800-COX-REEL • Fax 800-229-REEL • Int 480-820-6396 • Fax 480-820-5132 • www.coxreels.com Page CATALOG #EZ06 ©Copyright 2006 COXREELS EZ-COIL™ SAFETY SERIES RELS THE COXREELS ADVANTAGE Coxreels’ will continue to live the philosophy of being the first to build the best hose, cord and cable reels…always! We take great pride in designing, building and supplying the world’s finest reels made right here in the U.S.A. USA MADE – USA QUALITY – USA SUPPORT 2-YEAR WARRANTY In today’s competitive world, Coxreels’ firmly supports quality statements with the 2-YEAR MANUFACTURER’S LIMITED WARRANTY....

Open the catalog to page 2

CATALOG #EZ06 ©Copyright 2006 COXREELS Toll Free 800-COX-REEL • Fax 800-229-REEL • Int 480-820-6396 • Fax 480-820-5132 • www.coxreels.com Page EZ-S Series Side Mount Hose Reels Coxreels’ EZ-S “Safety Series Side Mount” spring driven hose reels are compact, versatile and unique in the way they mount and operate. They feature a simple two-bolt mounting pattern for easy installation and detachment for multiple workstation applications. The 360¢ª hose direction allows the user to operate the reel from front to back, top to bottom, any direction the job demands. The EZ-S series also features Coxreels’...

Open the catalog to page 7

CATALOG #EZ06 ©Copyright 2006 COXREELS Toll Free 800-COX-REEL • Fax 800-229-REEL • Int 480-820-6396 • Fax 480-820-5132 • www.coxreels.com Page 11 TWO-YEAR LIMITED WARRANTY Products manufactured by Coxreels are warranted for a period of two years from the date of sale to original purchaser. If within such warranty period any such equipment is proved, to Coxreels‘ satisfaction, to be defective, Coxreels shall be liable for the repair or, at Coxreels’ option, replacement when the product is returned, freight prepaid, to Coxreels’ plant or a Coxreels’ service dealer. Coxreels’ obligation hereunder...

Open the catalog to page 11

800-COX-REEL Toll Free Fax 800-229-REEL Int: 480-820-6396 • Fax: 480-820-5132 • Email: [email protected] 6720 South Clementine Court, Tempe, Arizona 85283 USA MADE – USA QUALITY – USA SUPPORT Authorized COXREELS® Reseller/Distributor CATALOG #EZ06 Coxreels Offers A Wide Selection Of Quality Hose, Cord & Cable Reels Available In... SPRING driven, electric, HAND CRANK & Motor driven Call To Order Your FREE Coxreels Main Catalog #CMC06 Today! CATALOG #CMC06 www.coxreels.com

Open the catalog to page 12
