Pneumatic crimping machines - TPM1
Pneumatic crimping machines - TPM1
The TPM1 pneumatic crimping head is designed for air-assisted crimping of various pump types. It is characterized by its ease of handling, facilitated by a suspension system that supports the head. This allows for crimping bottles of different shapes and heights directly in their packaging.
Key Features and Advantages
- Immediate use: The tool is ready for use once connected to an air compressor.
- Cost efficiency: Offers a cost-effective solution for crimping needs.
- Limited air consumption: Operates efficiently with minimal air usage.
- Simple operation: User-friendly design requires no special training.
- No maintenance required: Designed for long-term use without the need for maintenance.
- Safety: Ensures safe operation during use.
Technical Specifications
- Operating pressure: 6 bar
- Net weight: 2 kg
- Gross weight: 2.5 kg
- Supplied accessories: Includes one crimping head (size on request), two centering tools, and service keys.
- Optional accessories: Additional crimping heads available.
Usage and Application
The TPM1 allows for crimping without removing bottles from their original packaging, accommodating bottles of varying shapes and heights. The head's maneuverability, supported by a suspension system, enables easy access to bottle necks regardless of their position on the work surface.
Catalog excerpts

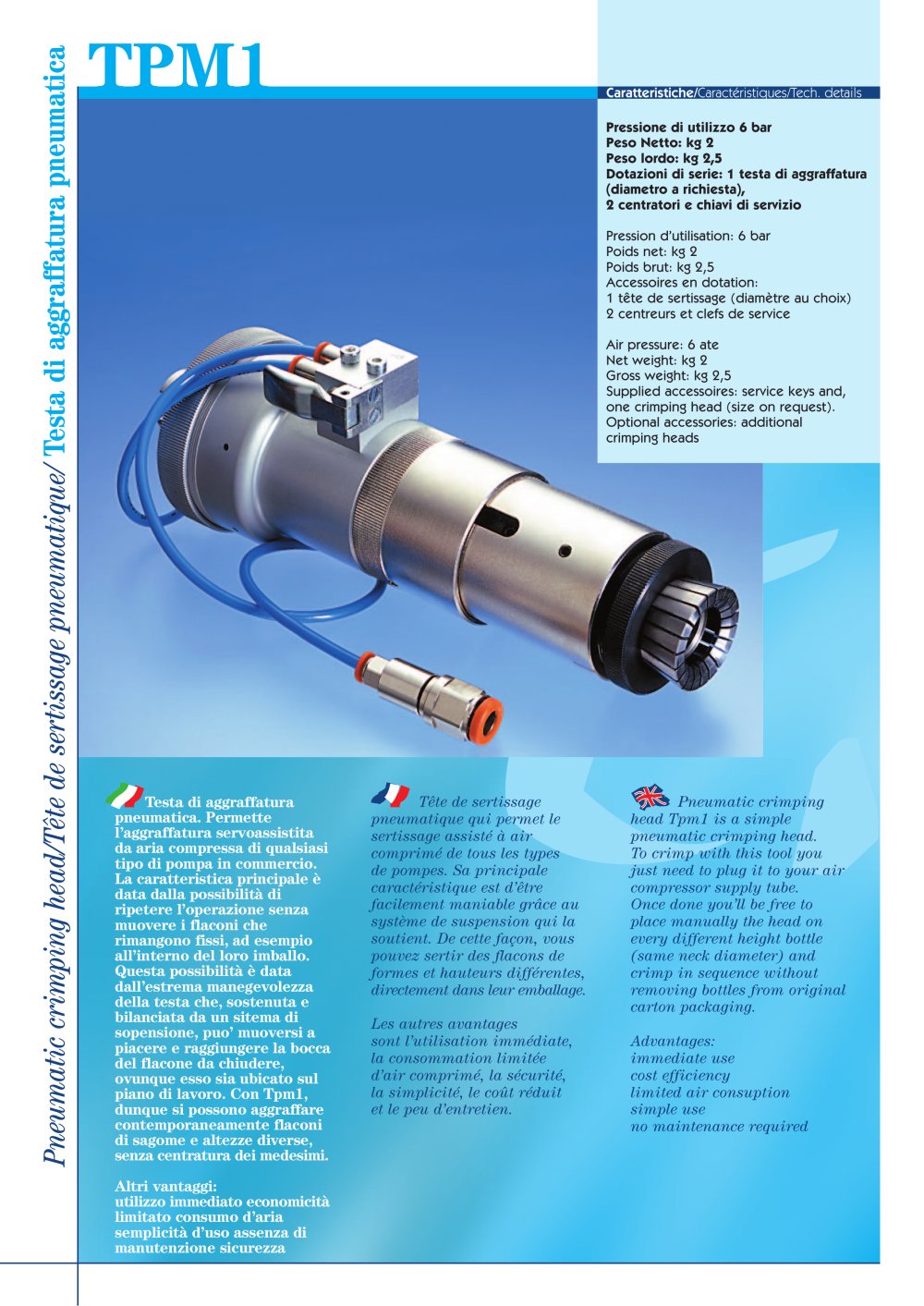

Caratteristiche/ Caractҩristiques/Tech. details Pressione di utilizzo 6 bar Peso Netto: kg 2 Peso lordo: kg 2,5 Dotazioni di serie: 1 testa di aggraffatura(diametro a richiesta), 2 centratori e chiavi di servizio Pression dutilisation: 6 barPoids net: kg 2 Poids brut: kg 2,5 Accessoires en dotation:1 tҪte de sertissage (diamtre au choix)2 centreurs et clefs de serviceAir pressure: 6 ate Net weight: kg 2 Gross weight: kg 2,5 Supplied accessoires: service keys and, one crimping head (size on request). Optional accessories: additional crimping heads > Testa di aggraffatura pneumatica Pneumatic crimping head/TҪte de sertissage pneumatique/ size="-1">
