Collar fitting machine - CF01

Collar fitting machine - CF01
1 / 1 PageView full catalog

Collar fitting machine - CF01

Product catalog summary
Overview: The CF01 is a pneumatic device designed for the semi-automatic fitting of metal pump collars onto glass or plastic bottles, commonly used in the perfume industry. It is characterized by its simplicity and reliability.
Specifications: The machine dimensions are 35x75x36 cm, with a net weight of 20 kg and a gross weight of 35 kg. It operates at a pressure of 6 bar. The packaging dimensions are 66x81x84 cm.
Operation Procedure: To use the CF01, manually place the collar on the bottle pump, position the bottle against the centering tool on the machine base, and press the two 'start' buttons simultaneously. When changing collar types or diameters, replace the plastic collar pressing head inside the machine head using a screw.
Accessories: The machine comes with three collar pressing heads, one centering tool, and one M5 screw. Optional accessories include custom collar pressing heads and centering tools.
Key Features: The CF01 is designed for ease of use, requiring minimal manual intervention. It supports standard perfume bottle diameters and allows for quick accessory changes to accommodate different collar sizes.
See more

Catalog excerpts

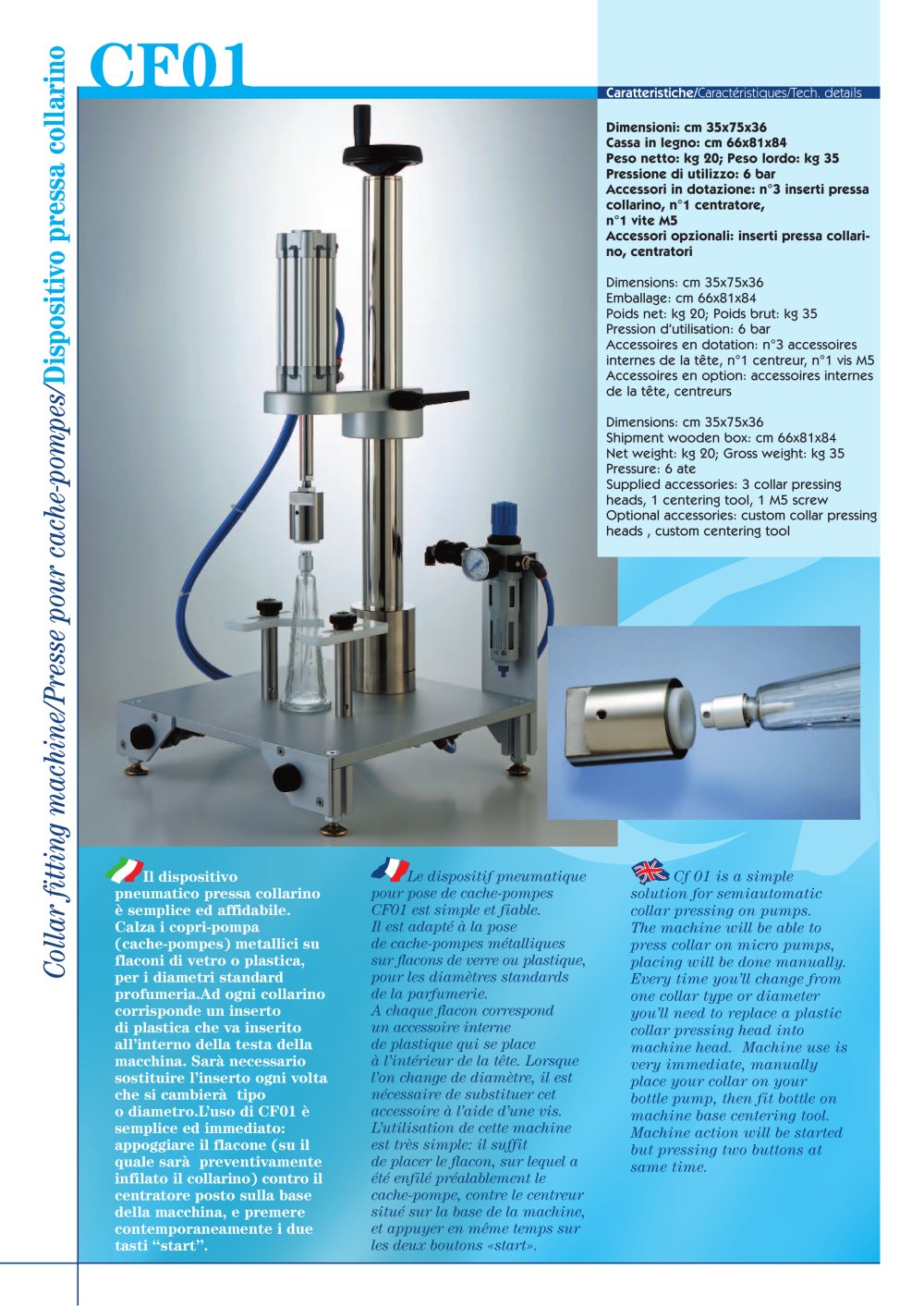

Collar fitting machine - CF01-1

Caratteristiche/ Caractristiques/Tech. details Dimensioni: cm 35x75x36Cassa in legno: cm 66x81x84 Peso netto: kg 20; Peso lordo: kg 35 Pressione di utilizzo: 6 barAccessori in dotazione: n3 inserti pressacollarino, n鰰1 centratore, n1 vite M5 Accessori opzionali: inserti pressa collari- no, centratori Dimensions: cm 35x75x36Emballage: cm 66x81x84 Poids net: kg 20; Poids brut: kg 35 Pression dВutilisation: 6 barAccessoires en dotation: n3 accessoiresinternes de la tЪte, n1 centreur, nа1 vis M5 Accessoires en option: accessoires internes de la tte, centreursDimensions: cm 35x75x36Shipment wooden box: cm 66x81x84 Net weight: kg 20; Gross weight: kg 35 Pressure: 6 ateSupplied accessories: 3 collar pressingheads, 1 centering tool, 1 M5 screw Optional accessories: custom collar pressing heads , custom centering tool > Dispositivo pressa collarino Collar fitting machine/Presse pour cache-pompes/ size="-1">

 Open the catalog to page 1
