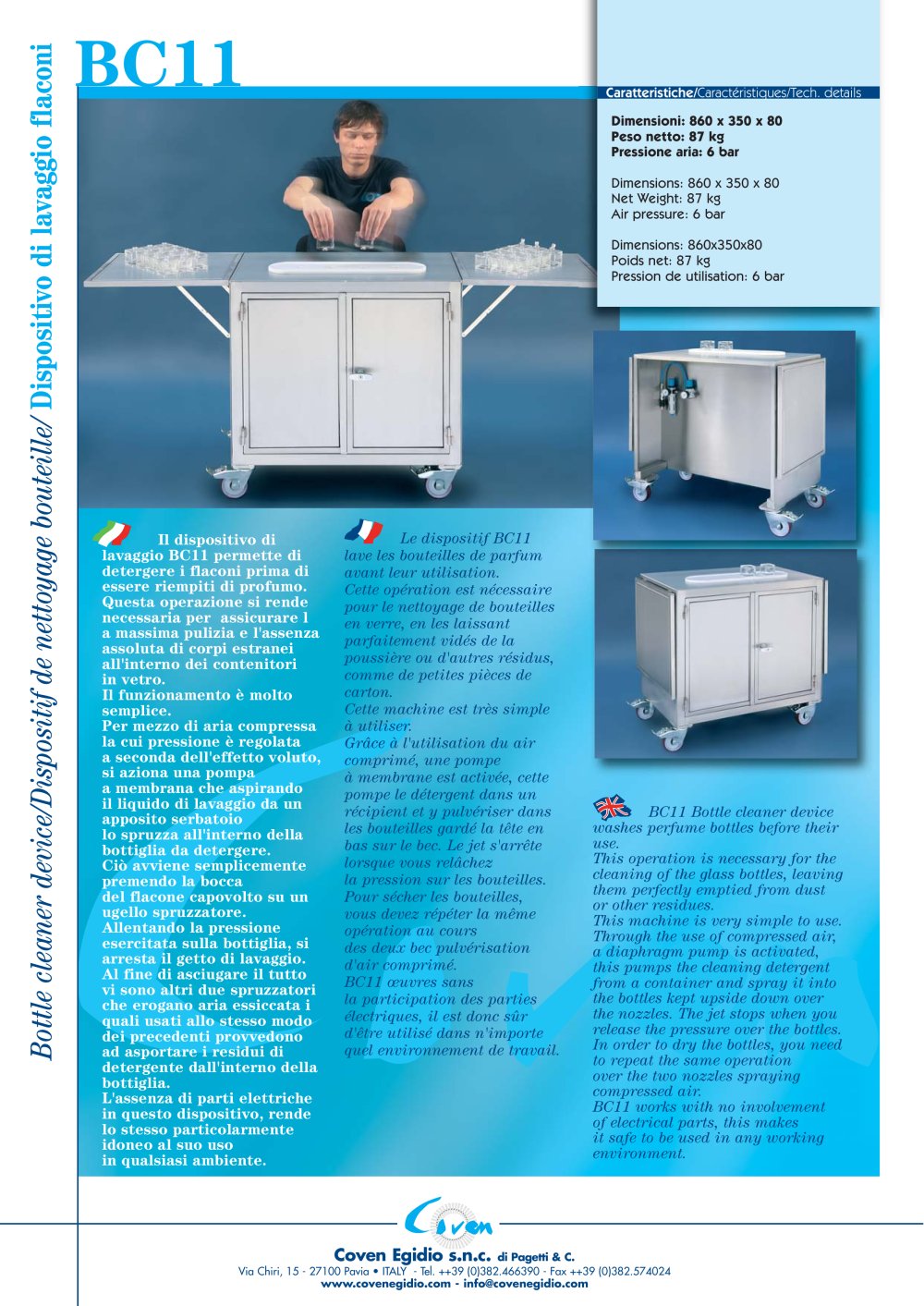

Bottle washing machine - BC11
Product catalog summary
Overview
The BC11 Bottle Cleaner Device is designed to wash perfume bottles before use, ensuring they are free from dust and other residues. This process is essential for maintaining the cleanliness of glass bottles.
Specifications
Operation Procedure
The BC11 operates using compressed air to activate a diaphragm pump. This pump draws cleaning detergent from a container and sprays it into the bottles, which are positioned upside down over the nozzles. The spray stops when pressure is released from the bottles. To dry the bottles, the same operation is repeated using two nozzles that spray compressed air.
Safety and Usability
The BC11 does not involve any electrical parts, making it safe for use in any working environment. Its simple operation ensures ease of use.
The BC11 Bottle Cleaner Device is designed to wash perfume bottles before use, ensuring they are free from dust and other residues. This process is essential for maintaining the cleanliness of glass bottles.
Specifications
- Dimensions: 860 x 350 x 80 mm
- Net Weight: 87 kg
- Air Pressure: 6 bar
Operation Procedure
The BC11 operates using compressed air to activate a diaphragm pump. This pump draws cleaning detergent from a container and sprays it into the bottles, which are positioned upside down over the nozzles. The spray stops when pressure is released from the bottles. To dry the bottles, the same operation is repeated using two nozzles that spray compressed air.
Safety and Usability
The BC11 does not involve any electrical parts, making it safe for use in any working environment. Its simple operation ensures ease of use.
