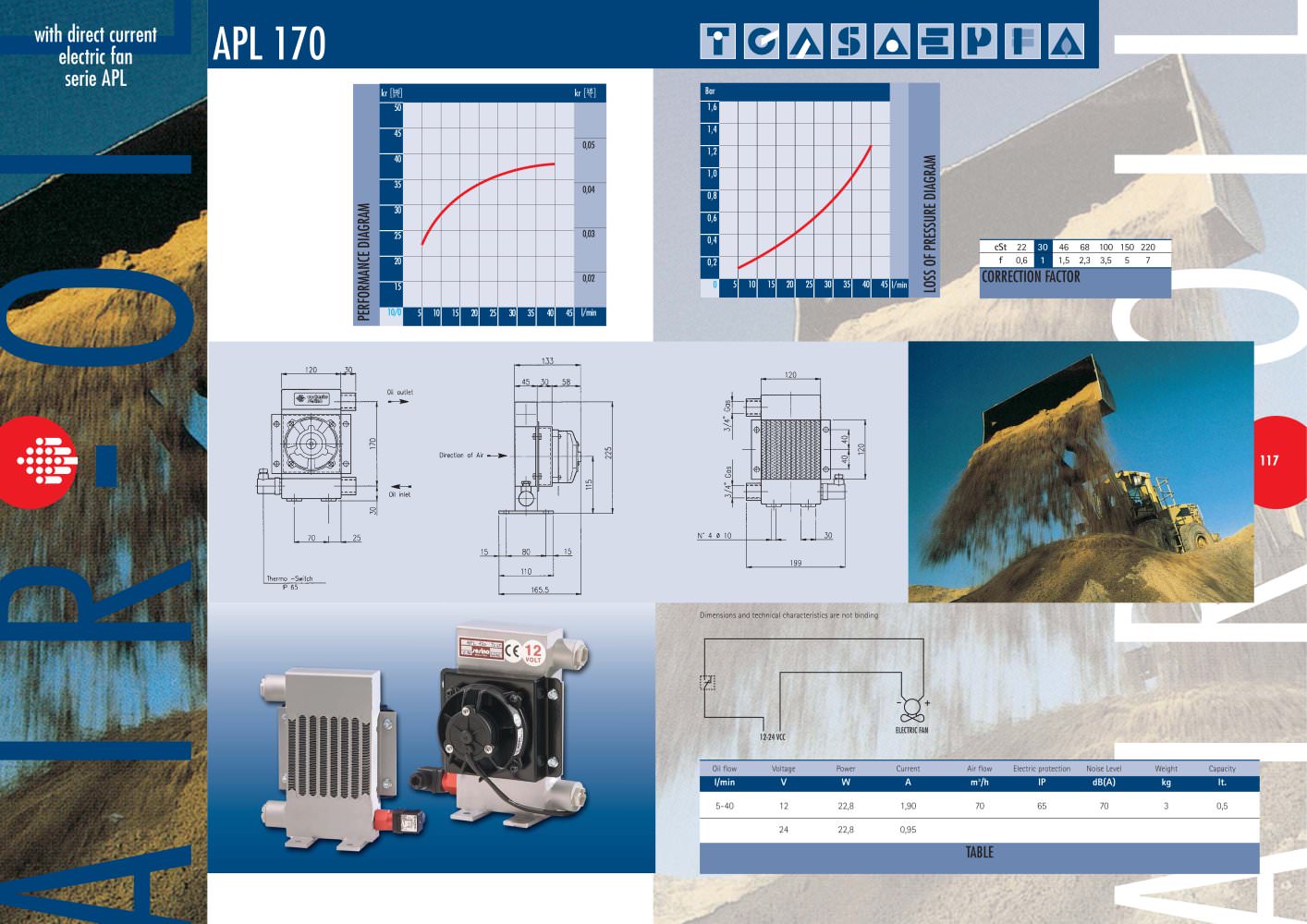

Overview: The document provides technical specifications for the AIR-OIL APL 170 model equipped with a direct current electric fan from the APL series. It includes correction factors, performance data, and diagrams illustrating oil flow and pressure loss.

Correction Factor: The correction factor table lists values for different oil viscosities (cSt) ranging from 22 to 220, with corresponding factors from 0.6 to 7.

Technical Specifications:

• Oil Flow: 5-40 l/min
• Voltage: 12 V and 24 V
• Power: 22.8 W
• Current: 1.90 A (12 V) and 0.95 A (24 V)
• Air Flow: 70 m3/h
• Electric Protection: IP 65
• Noise Level: 70 dB(A)
• Weight: 3 kg
• Capacity: 0.5 liters

Performance Diagram: The diagram illustrates the relationship between oil flow (l/min) and heat dissipation (kcal/h and kW) at various temperatures (°C).

Pressure Loss Diagram: This diagram shows the pressure loss (Bar) against oil flow (l/min), indicating efficiency at different flow rates.

Additional Notes: The electric fan operates on 12-24 VDC, ensuring compatibility with various power sources.
