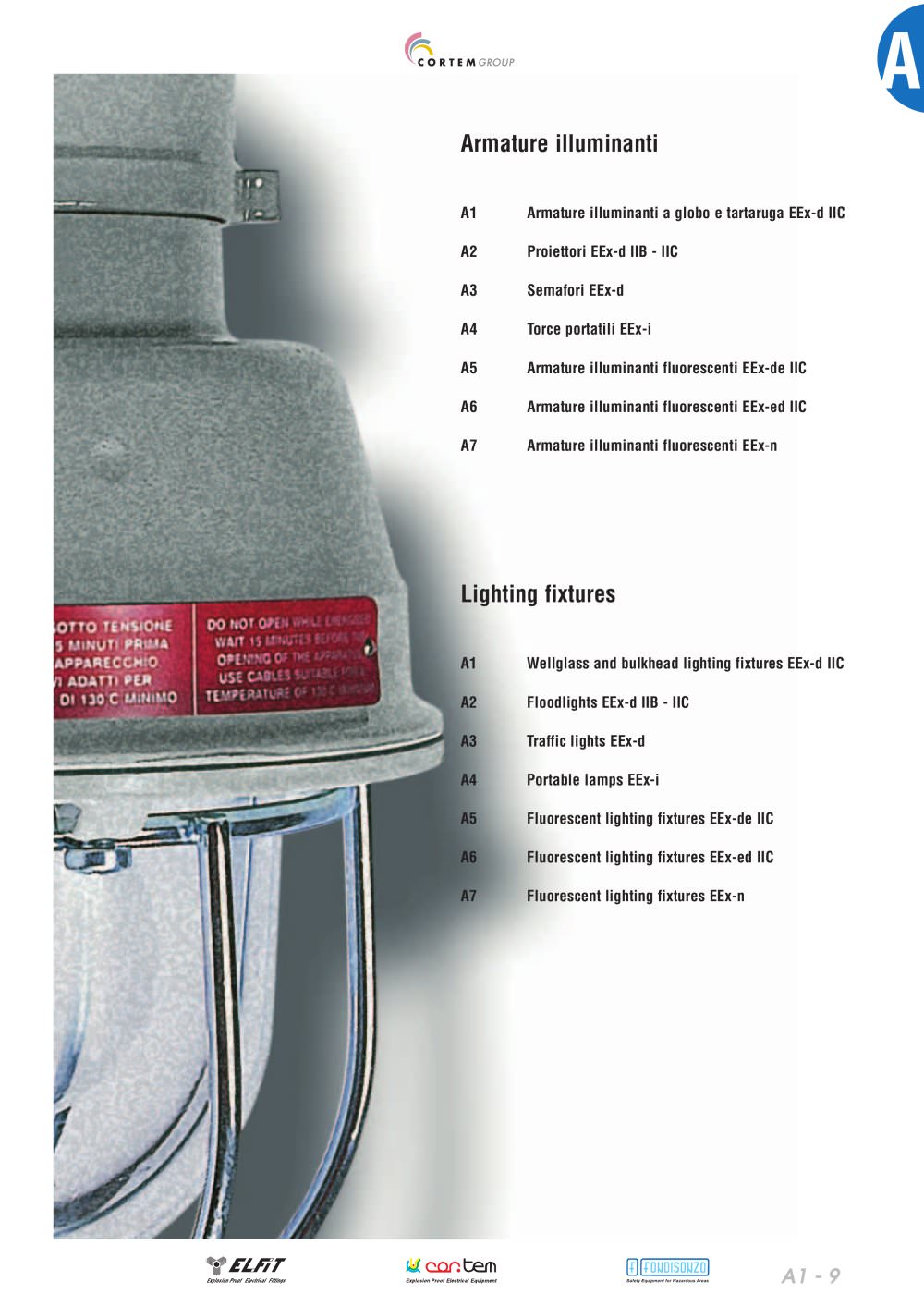

Lighting fixtures
Lighting fixtures
The document outlines specifications and classifications for lighting fixtures designed for hazardous areas, categorized by explosion protection ratings and applications such as wellglass, bulkhead, floodlights, traffic lights, portable lamps, and fluorescent lighting fixtures.
All fixtures comply with the ATEX directive 94/9/CE and EN standards (EN 50014, EN 50018, EN 50281-1-1), suitable for zones 1, 2, 21, and 22, with temperature classes T3/T4 and an IP65 rating for dust and water protection.
- EV Series: For incandescent and energy-saving lamps, with a copper-free aluminum alloy body and borosilicate glass globe.
- EVO Series: Optimized for tank porthole lighting, similar to EV series.
- HI Series: Bulkhead fixtures for compact spaces like tunnels.
- EW Series: For discharge lamps up to 125W.
- EWA Series: For discharge lamps up to 400W.
- XLF Series: Obstruction light fixtures for towers and high buildings.
Fixtures are made with copper-free aluminum alloy, borosilicate glass, and stainless steel, featuring internal/external earth screws and Ral 7035 epoxy coating. Various threading options are available.
Guidelines follow EN 60079.10 standards for safe installation in hazardous environments, with test certificates and compliance documentation provided.
Fixtures for towers or high buildings, constructed with copper-free aluminum alloy and borosilicate glass, with Fresnel globes in some models. They comply with explosion protection standards and EN 60079.10 installation standards.
XLF series uses high-intensity LED bulbs with a lifespan of 50,000 hours. XLI series uses incandescent bulbs with red Fresnel globes. Options for single or double fixtures with various configurations.
Different thread sizes and LED colors available. Coated with RAL 7035 epoxy for durability.
Installation guidelines ensure compliance with explosion protection directives, designed for easy installation with support structures for adjustments.
Numerous product codes detail configurations of the XLF and XLI series, including lamp colors, power, and weight specifications.
Specifications and features of EVF and EXEL series for fluorescent tubes, suitable for hazardous industrial environments, offering uniform lighting with minimal space requirements.
- Automatic activation without voltage supply.
- Copper-free aluminum alloy and borosilicate glass tubes.
- Electronic inverters supporting 110 - 230 V AC/DC.
- Stainless steel ground screws.
- Silicone rubber cables with glass braid insulation.
- Neoprene seals resistant to acids and hydrocarbons.
- RAL 7035 grey epoxy powder coating.
- Antistatic GRP body for EXEL series.
- Transparent diffuser in antistatic polycarbonate.
- Extruded aluminum internal frame and PVC-coated aluminum reflector.
- Stainless steel hardware (AISI 316L).
- Single or double tube configurations with electronic ballasts.
- Various configurations with emergency units (EE and EF types).
- Installation kits for pole, ceiling, and suspension mounting.
- Galvanized and stainless steel guards and reflectors.
- Customizable threading options.
- Explosion protection certified according to EN 60079.10.
- Complies with directives 94/9/CE, EN 50014, EN 50018, EN 50019, and EN 50281-1-1.
- Suitable for zones 1, 2, 21, and 22.
Specifications for fixtures in hazardous environments, suitable for low vertical space, high performance, and low maintenance costs.
Catalog excerpts
Safet y E q ui p ment for Hazardous Areas >
Open the catalog to page 1
PROTEZIONEANTIDEFLAGRANTECERTIFICATO DI CONFORMITA DIRETTIVANORMEINSTALLAZIONE > EXPLOSIONPROTECTION TESTCERTIFICATEDIRECTIVE COMPLIANCEINSTALLATION II 2G EEx-e ib IIC T3 - IP 66CESI 03 ATEX 116 (OVA)94/9/CEEN 50014 - EN 50019 - EN 50020zona 1 - 2 > (secondo le EN 60079.10) (according to EN 60079.10) FEATURES CONSTRUCTION CARATTERISTICHE COSTRUZIONE The SECURLUX portable torch is used for the illumination of sparely accesiblezones in all hazardous areas. The integrated handle make it suitable to be tran- sported and to easily hang up. The recharge of the accumulators must be done in the safe...
Open the catalog to page 19
attacchi a palina - tipo Pattacchi a sospensione con golfare - tipo Ostaffe angolari a 45- tipo Dstaffe a soffitto - tipo Ustaffe a soffitto - tipo V > Codice CortemCodice FondisonzoDescrizioneDescriptionPeso KgCodeCodeWeight Kg KIT-PKIT-O KIT-D KIT-U KIT-V -- - - - KIT-PKIT-O KIT-D KIT-U KIT-V pole suspensions fittings - type Psuspensions fittings with eyebolt - type Oangle brackets 45а- type Dceiling brackets - type Uceiling brackets - type V >
Open the catalog to page 32
attacchi a palina - tipo Pattacchi a sospensione con golfare - tipo Ostaffe angolari a 45- tipo Dstaffe a soffitto - tipo Ustaffe a soffitto - tipo V -- - - - > Codice CortemCodice FondisonzoDescrizioneDescriptionPeso KgCodeCodeWeight KgKIT-PKIT-O KIT-D KIT-U KIT-V KIT-PKIT-O KIT-D KIT-U KIT-V pole suspensions fittings - type Psuspensions fittings with eyebolt - type Oangle brackets 45а- type Dceiling brackets - type Uceiling brackets - type V >
