Electrical fittings

Product catalog summary

Overview: The document details specifications and guidelines for electrical fittings designed for hazardous areas, focusing on explosion-proof equipment. It covers various fittings such as unions, elbows, pulling boxes, sealing fittings, and industrial components like male closing plugs, saddles, conduit clamps, and U-bolts.

Specifications:

Three Piece Unions (G1): These unions facilitate independent rotation and connection between pipes and instruments, available in BFF, BMF, and BMM configurations. Made from galvanized or stainless steel, they comply with EN 60079-0, EN 60079-1, and EN 61241-1 standards.
Elbows (G2): Non-inspectable 90° bends for conduit systems, available in ELF, ELM, and ELMF configurations. Constructed from copper-free aluminum alloy, they meet EN 50014, EN 50018, and EN 50019 standards.
Open Elbows: Designed for cable insertion with a rear opening for inspection, made from copper-free aluminum alloy with optional stainless steel screws.

Compliance and Certification: All products are certified under CESI ATEX standards, adhering to the 94/9/CE directive and relevant EN standards for explosion protection, suitable for hazardous zones 1 and 2.

Materials and Options: Fittings are primarily made from galvanized steel or stainless steel, with customizable threading options available.

Additional Components:

Pulling Boxes: Facilitate cable passage in conduit systems, made from copper-free aluminum alloy with optional stainless steel screws.
Sealing Fittings: EYS and EZS fittings prevent gas, vapor, or flame passage, requiring CRV 420 sealing compound, suitable for vertical and horizontal mounting.
Reducers and Adaptors: Connect equipment, pipes, and hubs of different diameters, available in galvanized steel or copper-free aluminum alloy.

Industrial Components:

Male Closing Plugs: Close unused entries, available in galvanized steel or aluminum, certified for explosion protection.
Saddles: Fix rigid cable-carrying pipes to surfaces, made from galvanized steel or aluminum.
Conduit Clamps: MP series for parallel and MT series for perpendicular mounting, constructed from galvanized steel.
U-bolts: Fix rigid conduit pipes to surfaces, made from galvanized steel with stainless steel available on request.

Catalog excerpts

Safet y E q ui p ment for Hazardous Areas >

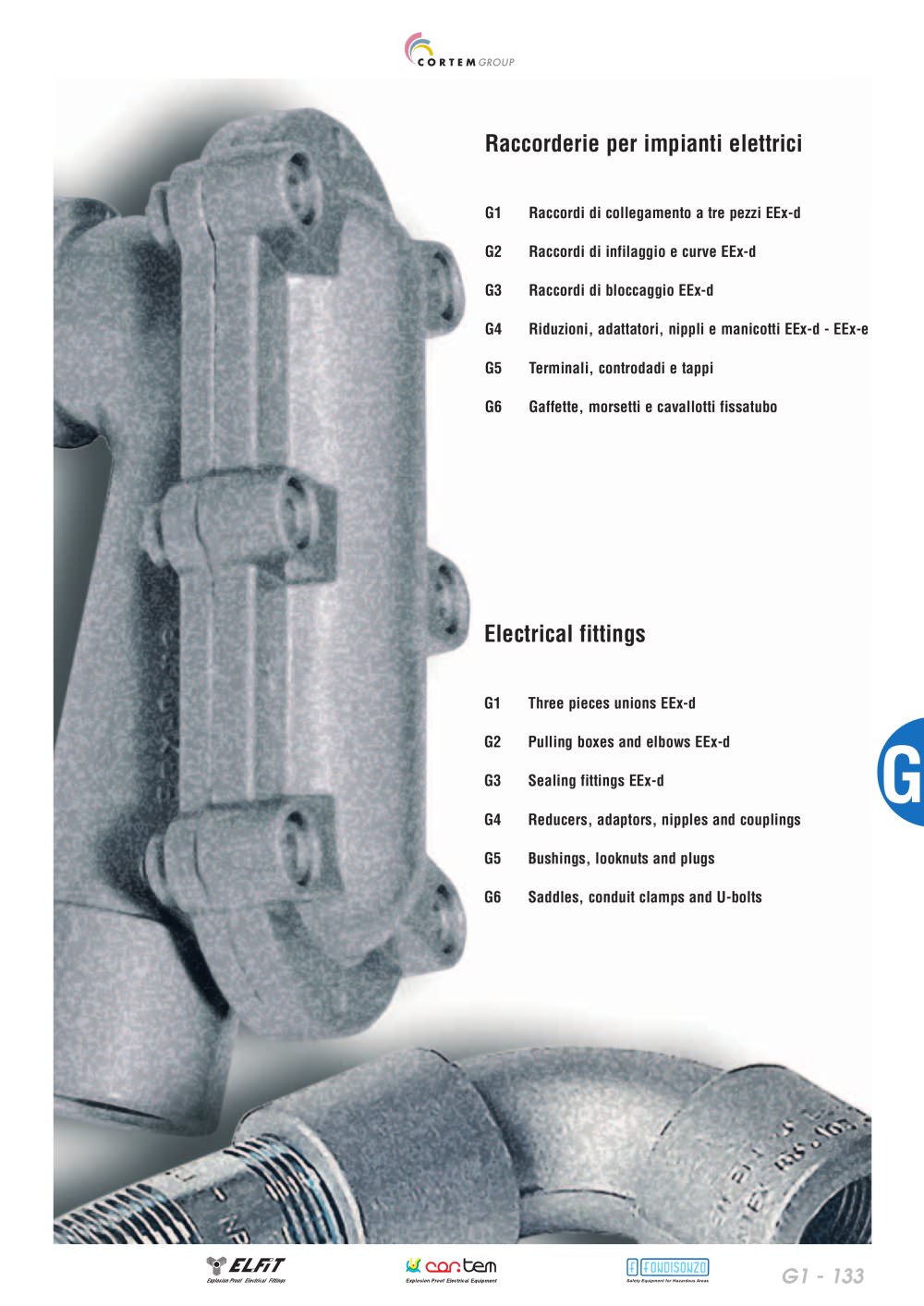

Open the catalog to page 1
