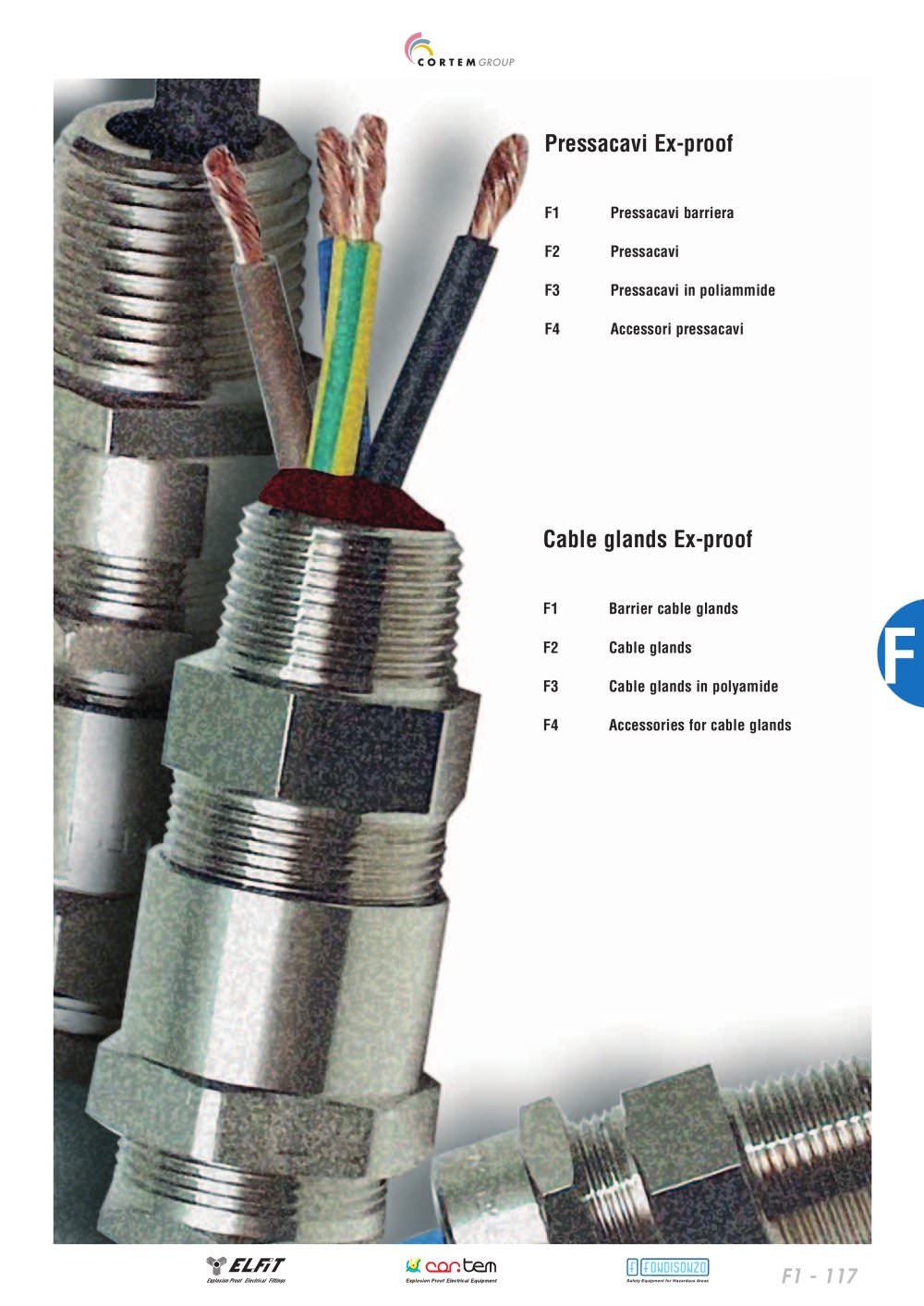

Cable glands Ex-proof

Product catalog summary

Overview: This document outlines the specifications and guidelines for explosion-proof cable glands used in hazardous areas, detailing types for both non-armoured and armoured cables, their construction, features, and compliance with safety standards.

Barrier Cable Glands for Non-Armoured Cables:

Designed for direct insertion into Ex d boxes to prevent flame propagation using a special sealing mixture.
Made from nickel-plated brass with elastomer sealing rings and bi-component polyurethane resin.
Compliant with EN 60079-0, EN 60079-1, EN 60079-7, EN 60529, and EN 61241-1 standards.
Suitable for zones 1, 2, 21, and 22.

Barrier Cable Glands for Armoured Cables:

Used for direct insertion into Ex d boxes, sealing on the armour and external sheath.
Constructed from nickel-plated brass with elastomer sealing rings.
Compliant with the same standards as non-armoured cable glands.

Cable Glands for Non-Armoured Cables:

Facilitate direct insertion into Ex d equipment or enclosures, ensuring optimal earth contact.
Made from nickel-plated brass with elastomer sealing rings.
Available with ISO7/1 threads, with other threads and materials available on request.

Cable Glands for Armoured Cables:

Enable direct insertion into Ex d equipment, featuring a double seal for enhanced safety.
Easy to install with a conical coupling for optimal earth contact.
Constructed from nickel-plated brass, with options for other materials.

Compliance and Certification:

All products are certified under CESI 00 ATEX 075 and CESI 02 ATEX 081X.
Comply with directive 94/9/CE and installation standards according to EN 60079.10.

Additional Features and Options:
