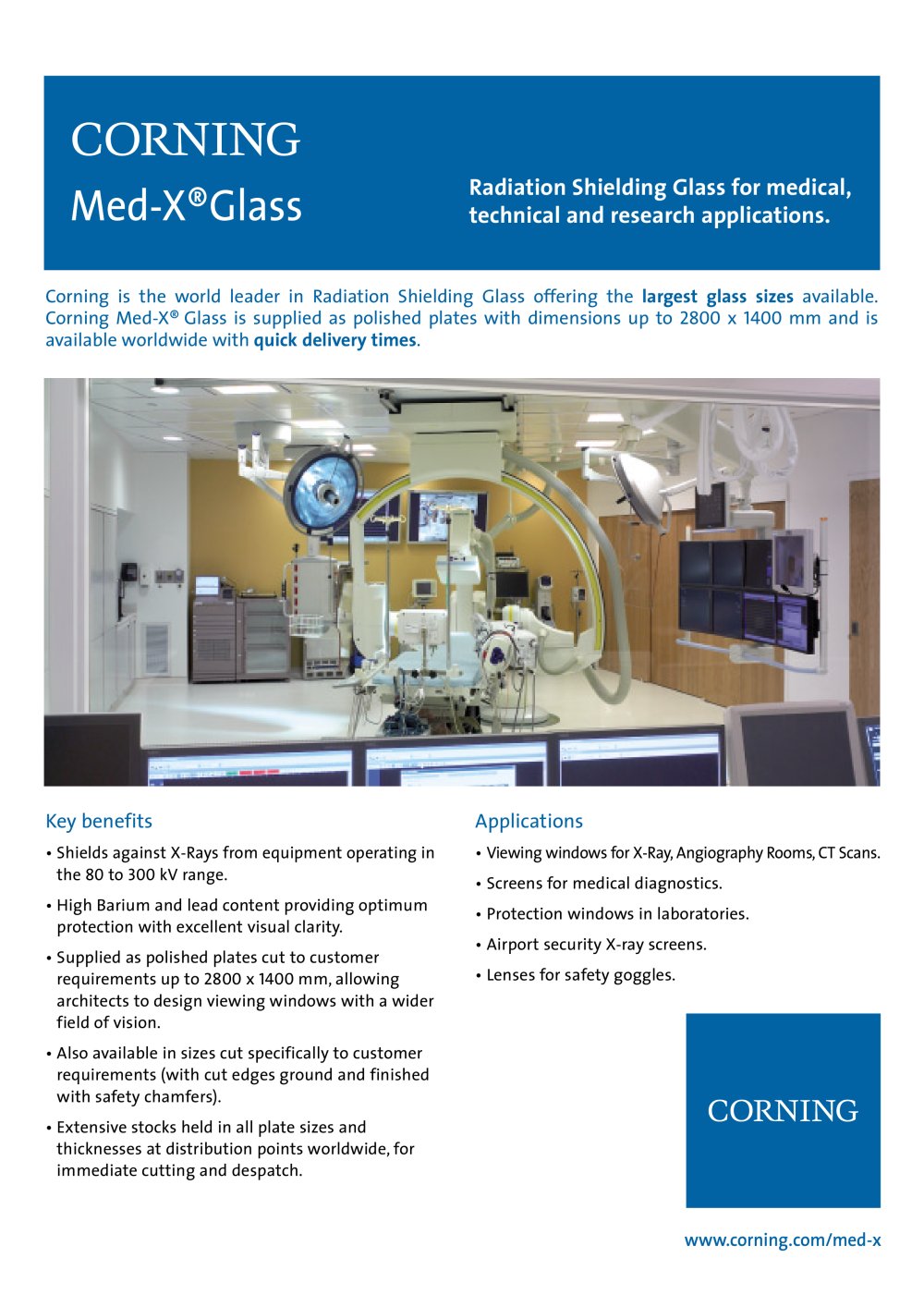

www.corning.com/med-x Radiation Shielding Glass for medical, technical and research applications. Key benefits • Shields against X-Rays from equipment operating in the 80 to 300 kV range. • High Barium and lead content providing optimum protection with excellent visual clarity. • Supplied as polished plates cut to customer requirements up to 2800 x 1400 mm, allowing architects to design viewing windows with a wider field of vision. • Also available in sizes cut specifically to customer requirements (with cut edges ground and finished with safety chamfers). • Extensive stocks held in all plate sizes and thicknesses at distribution points worldwide, for immediate cutting and despatch. Applications • Viewing windows for X-Ray, Angiography Rooms, CT Scans. • Screens for medical diagnostics. • Protection windows in laboratories. • Airport security X-ray screens. • Lenses for safety goggles. Corning is the world leader in Radiation Shielding Glass offering the largest glass sizes available. Corning Med-X® Glass is supplied as polished plates with dimensions up to 2800 x 1400 mm and is available worldwide with quick delivery times.

Shielding Characteristics Thickness Minimum lead equivalence (mm) for stated X-Ray tube voltage Max. Plate Mass mm inches 80kV 100kV 110kV 150kV 200kV 250kV 300kV kg/m2 lbs/ft2 3.5-5.0 0.138-0.197 1.2 1.3 1.2 1.1 1.0 1.0 1.0 24.0 4.9 5.0-6.5 0.197-0.256 1.7 1.7 1.7 1.5 1.3 1.3 1.3 31.2 6.4 7.0-8.5 0.276-0.335 2.3 2.3 2.3 2.0 1.8 1.7 1.8 40.8 8.4 8.5-10.0 0.335-0.394 2.8 2.8 2.8 2.6 2.1 2.1 2.1 48 9.8 10.0-12.0 0.394-0.472 3.3 3.3 3.3 2.9 2.5 2.6 2.6 57.6 11.8 11.0-13.0 0.433-0.512 N/A 3.5 3.6 3.2 2.7 2.7 2.8 62.4 12.8 14.0-16.0 0.551-0.630 N/A 4.4 4.7 4.2 3.5 3.6 4.0 76.8 15.7 16.0-18.0 0.630-0.709...
