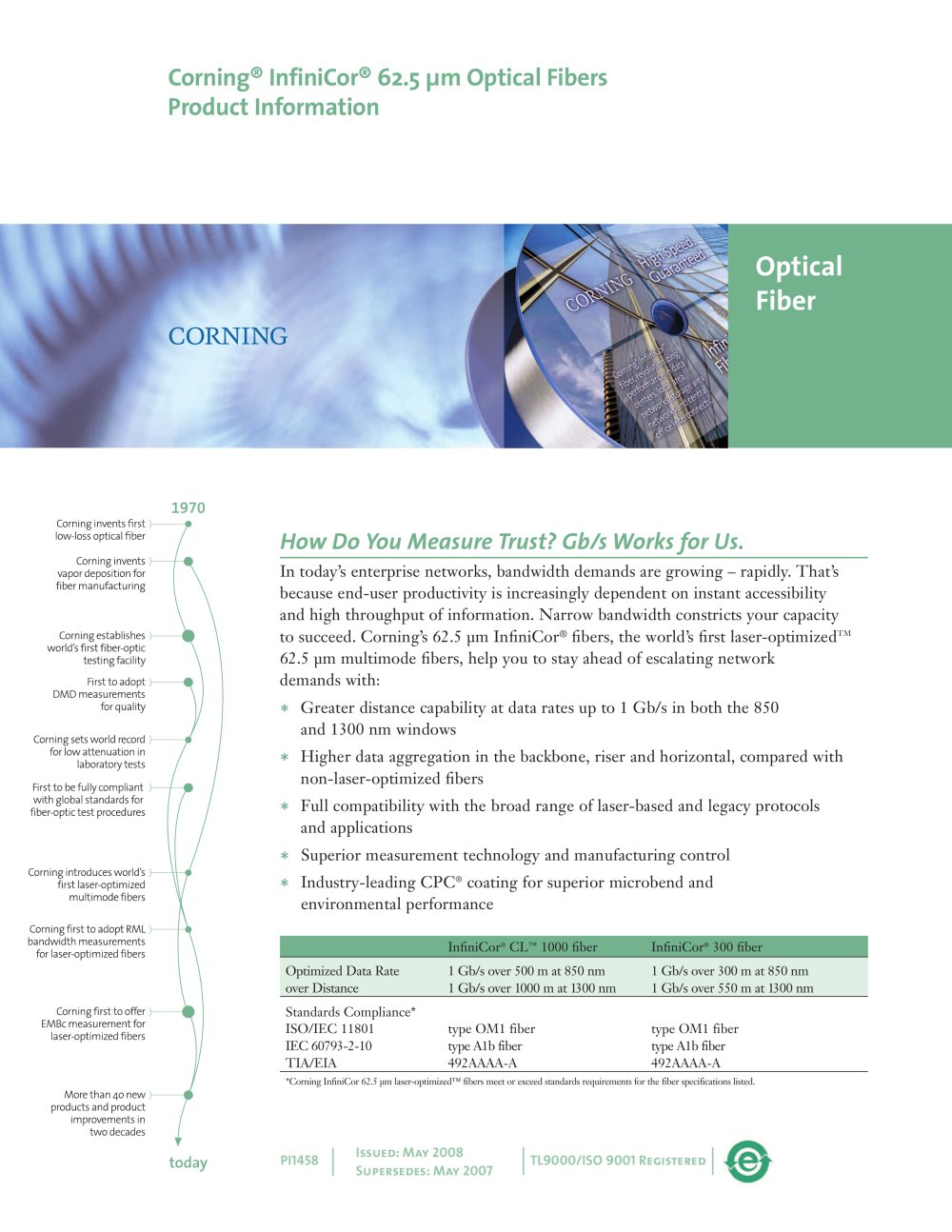

InfiniCor 62.5 µm optical fiber product information sheet

InfiniCor 62.5 µm optical fiber product information sheet

Product catalog summary

Introduction
Corning's InfiniCor® 62.5 µm optical fibers are designed to meet the growing bandwidth demands of modern enterprise networks. These fibers are the first laser-optimized 62.5 µm multimode fibers, offering enhanced performance for high data rate applications.

Key Features

Supports data rates up to 1 Gb/s over distances of 500 m at 850 nm and 1000 m at 1300 nm.
Compatible with a wide range of laser-based and legacy protocols.
Superior measurement technology ensures reliable performance.
Industry-leading CPC® coating enhances microbend and environmental performance.

Specifications

Optical Specifications: Core diameter of 62.5 ± 2.5 µm, cladding diameter of 125.0 ± 2.0 µm, and a numerical aperture of 0.275 ± 0.015.
Environmental Specifications: Operating temperature range from -60ºC to +85ºC, with induced attenuation ≤ 0.10 dB/km under various conditions.
Bandwidth: Intermediate performance EMB of 385 MHz•km at 850 nm for InfiniCor CL 1000 fiber.
Attenuation: Maximum attenuation of ≤ 2.9 dB/km at 850 nm and ≤ 0.6 dB/km at 1300 nm.

Service and Product Advantages

Comprehensive global sales support and customer service.
Enhanced dual acrylate CPC® coatings for mechanical protection.
Real-time web-based customer information and dedicated account support.

Ordering Information
For orders, contact the Optical Fiber Customer Service Department at 607-248-2000 or [email protected]. Specify fiber type, attenuation, and quantity when ordering.

Conclusion
Corning's InfiniCor® 62.5 µm optical fibers provide a reliable and high-performance solution for enterprise networks, ensuring compatibility with current and future network demands.
