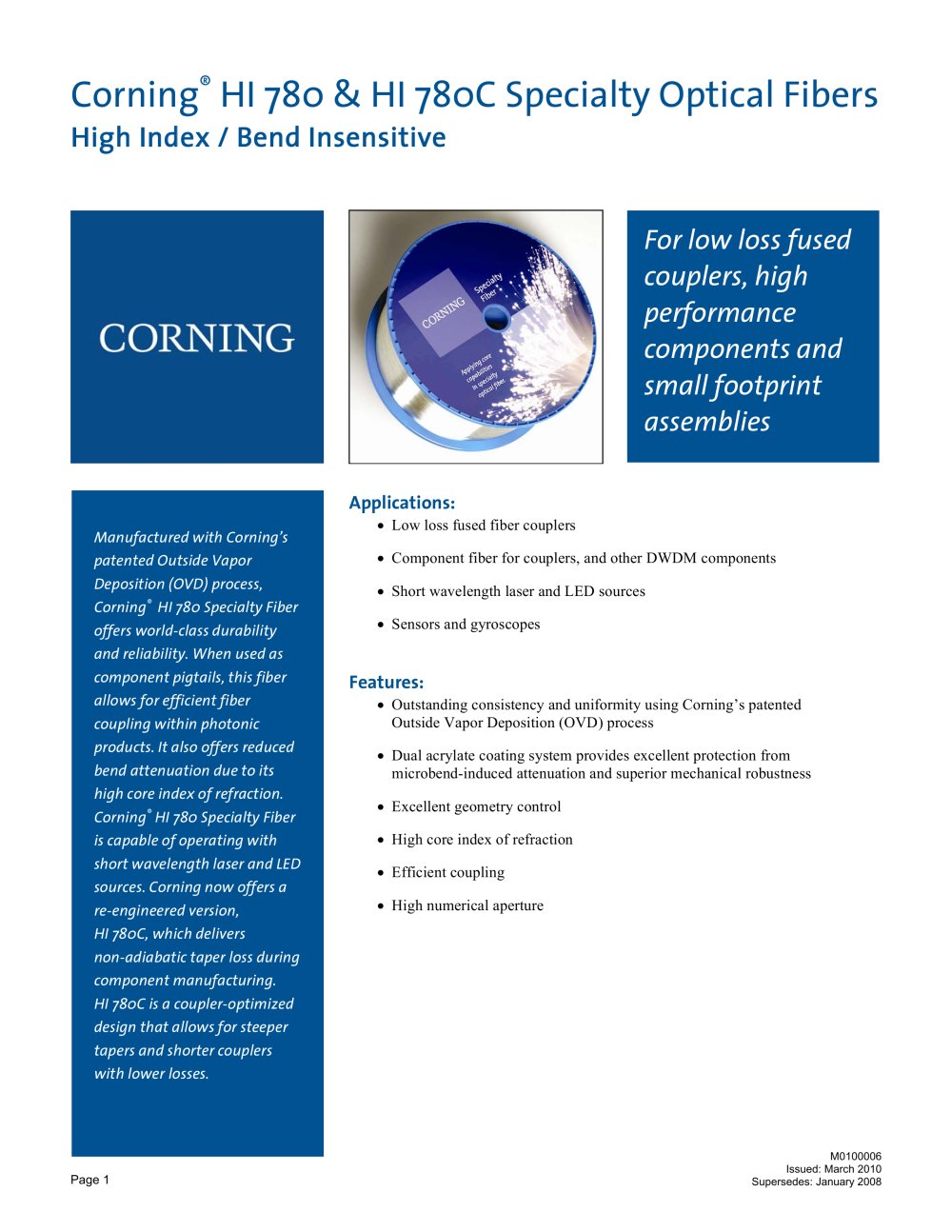

Page 1 Corning® HI 780 & HI 780C Specialty Optical Fibers High Index / Bend Insensitive Manufactured with Corning’s patented Outside Vapor Deposition (OVD) process, Corning® HI 780 Specialty Fiber offers world-class durability and reliability. When used as component pigtails, this fiber allows for efficient fiber coupling within photonic products. It also offers reduced bend attenuation due to its high core index of refraction. Corning® HI 780 Specialty Fiber is capable of operating with short wavelength laser and LED sources. Corning now offers a re-engineered version, HI 780C, which delivers non-adiabatic taper loss during component manufacturing. HI 780C is a coupler-optimized design that allows for steeper tapers and shorter couplers with lower losses. Applications: „h Low loss fused fiber couplers „h Component fiber for couplers, and other DWDM components „h Short wavelength laser and LED sources „h Sensors and gyroscopes Features: „h Outstanding consistency and uniformity using Corning’s patented Outside Vapor Deposition (OVD) process „h Dual acrylate coating system provides excellent protection from microbend-induced attenuation and superior mechanical robustness „h Excellent geometry control „h High core index of refraction „h Efficient coupling „h High numerical aperture M0100006 Issued: March 2010 Supersedes: January 2008 For low loss fused couplers, high performance components and small footprint assemblies
Open the catalog to page 1Page 2 HI 780 and HI 780C* Key Optical Specifications Operating Wavelength (nm) > 780 Cutoff Wavelength (nm) 720 ± 50 Maximum Attenuation (dB/km) 4.3 @ 780 nm 3.0 @ 850 nm Mode-field Diameter (ìm) 4.6 ± 0.5 @ 780 nm 5.0 ± 0.5 @ 850 nm * HI 780C - Coupler optimized (see graph below) Key Geometric, Mechanical and Environmental Specifications Cladding Outside Diameter (ìm) 125 ± 0.5 Coating Outside Diameter (ìm) 245 ± 10 Core-to-Cladding Offset (ìm) 0.3 Standard Lengths 500 m, 1 km, 2, km, 5 km Proof Test (kpsi) 100 or 200 Operating Temperature (ºC) -60 to 85 Performance Characterizations**...
