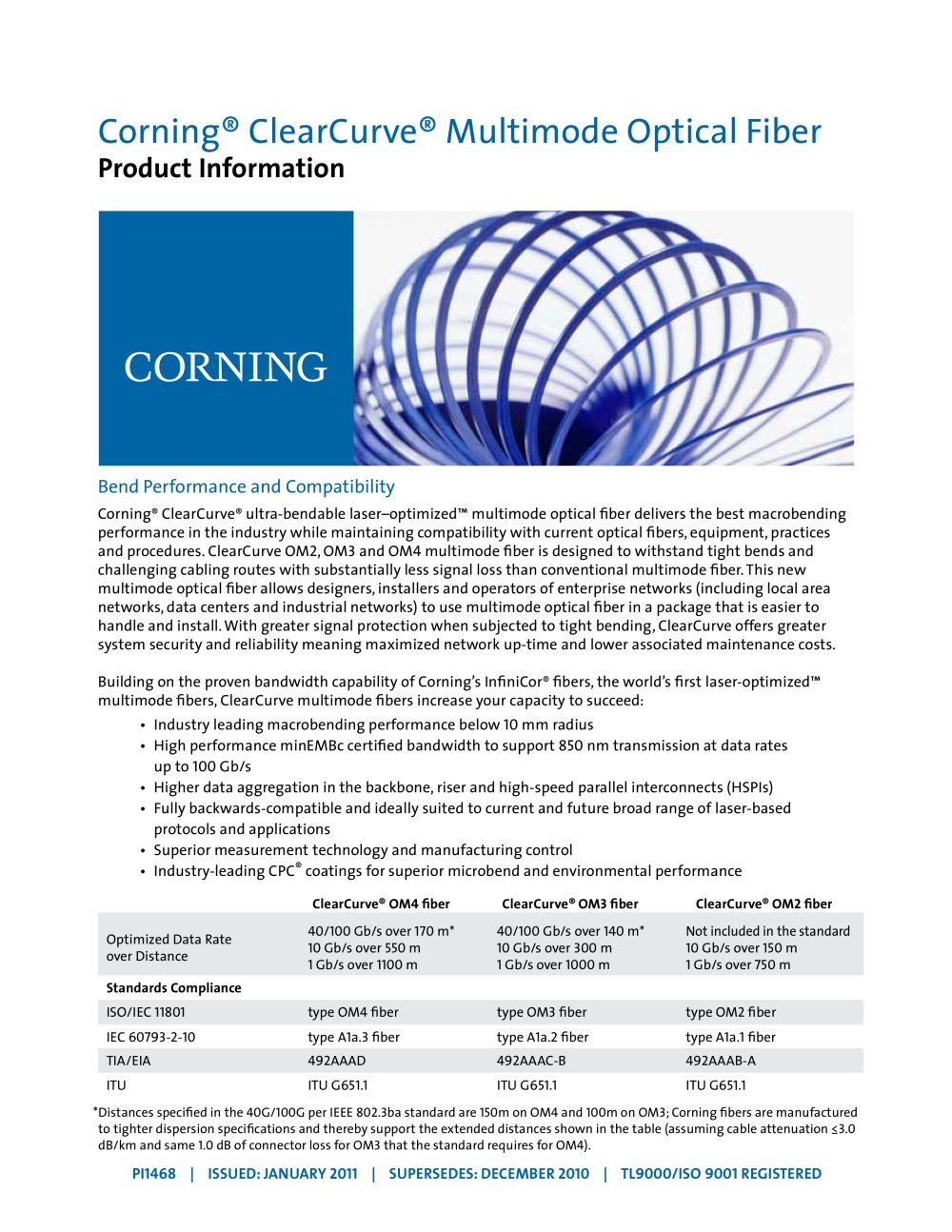

Corning® ClearCurve® Multimode Optical Fiber Product Information Bend Performance and Compatibility Corning® ClearCurve® ultra-bendable laser–optimized™ multimode optical fiber delivers the best macrobending performance in the industry while maintaining compatibility with current optical fibers, equipment, practices and procedures. ClearCurve OM2, OM3 and OM4 multimode fiber is designed to withstand tight bends and challenging cabling routes with substantially less signal loss than conventional multimode fiber. This new multimode optical fiber allows designers, installers and operators of enterprise networks (including local area networks, data centers and industrial networks) to use multimode optical fiber in a package that is easier to handle and install. With greater signal protection when subjected to tight bending, ClearCurve offers greater system security and reliability meaning maximized network up-time and lower associated maintenance costs. Building on the proven bandwidth capability of Corning’s InfiniCor® fibers, the world’s first laser-optimized™ multimode fibers, ClearCurve multimode fibers increase your capacity to succeed: • Industry leading macrobending performance below 10 mm radius • High performance minEMBc certified bandwidth to support 850 nm transmission at data rates up to 100 Gb/s • Higher data aggregation in the backbone, riser and high-speed parallel interconnects (HSPIs) • Fully backwards-compatible and ideally suited to current and future broad range of laser-based protocols and applications • Superior measurement technology and manufacturing control • Industry-leading CPC® coatings for superior microbend and environmental performance PI1468 | ISSUED: JANUARY 2011 | SUPERSEDES: DECEMBER 2010 | TL9000/ISO 9001 REGISTERED ClearCurve® OM4 fiber ClearCurve® OM3 fiber ClearCurve® OM2 fiber Optimized Data Rate over Distance 40/100 Gb/s over 170 m* 10 Gb/s over 550 m 1 Gb/s over 1100 m 40/100 Gb/s over 140 m* 10 Gb/s over 300 m 1 Gb/s over 1000 m Not included in the standard 10 Gb/s over 150 m 1 Gb/s over 750 m Standards Compliance ISO/IEC 11801 type OM4 fiber type OM3 fiber type OM2 fiber IEC 60793-2-10 type A1a.3 fiber type A1a.2 fiber type A1a.1 fiber TIA/EIA 492AAAD 492AAAC-B 492AAAB-A ITU ITU G651.1 ITU G651.1 ITU G651.1 * Distances specified in the 40G/100G per IEEE 802.3ba standard are 150m on OM4 and 100m on OM3; Corning fibers are manufactured to tighter dispersion specifications and thereby support the extended distances shown in the table (assuming cable attenuation 3.0 dB/km and same 1.0 dB of connector loss for OM3 that the standard requires for OM4).

Open the catalog to page 1

ClearCurve multimode fiber product information sheet - 2

The Smart, Reliable, Cost-Effective Network Choice No one can match Corning’s superior measurement technology and manufacturing control of the refractive index profile. Consequently, ClearCurve multimode optical fibers deliver exceptional high bandwidth and superior transmission performance for the most demanding applications, while allowing the use of low-cost, high-speed 850 nm vertical cavity surface-emitting lasers (VCSELs). High Bandwidth Performance You Can Rely On Corning is a world leader in developing and using the most advanced measurement techniques for laseroptimized multimode...

Open the catalog to page 2

ClearCurve multimode fiber product information sheet - 3

Environmental Test Test Condition Induced Attenuation 850 nm & 1300 nm (dB/km) Temperature Dependence -60°C to +85°C 0.10 Temperature Humidity Cycling -10°C to +85°C and 4% to 98% RH 0.10 Water Immersion 23°C ± 2°C 0.20 Heat Aging 85°C ± 2°C 0.20 Damp Heat 85°C at 85% RH 0.20 Operating Temperature Range: -60°C to + 85°C Environmental Mechanical Specifications Proof Test The entire fiber length is subjected to a tensile stress 100 kpsi (0.7 GN/m2)*. * Higher proof test levels available. Length Fiber lengths available up to 17.6 km/spool. Performance Characterizations Characterized parameters...

Open the catalog to page 3

ClearCurve multimode fiber product information sheet - 4

Refractive Index Difference 1% Effective Group Index of Refraction (Neff) 850 nm: 1.480 1300 nm: 1.479 Neff was empirically derived to the third decimal place using a specific commercially available OTDR Fatigue Resistance Parameter (nd) 20 Coating Strip Force Dry: 0.6 lbs (2.7N) Wet, 14 days in 23ºC water soak: 0.6 lbs (2.7N) Chromatic Dispersion Zero Dispersion Wavelength (ë0): 1295 nm ë0 1315 nm Zero Dispersion Slope (S0): 0.101 ps/(nm2.km ) Corning Incorporated One Riverfront Plaza Corning, NY 14831 U.S.A. Ph: 607-248-2000 Email: cofic@corning.com www..corning.com/opticalfiber Corning...
