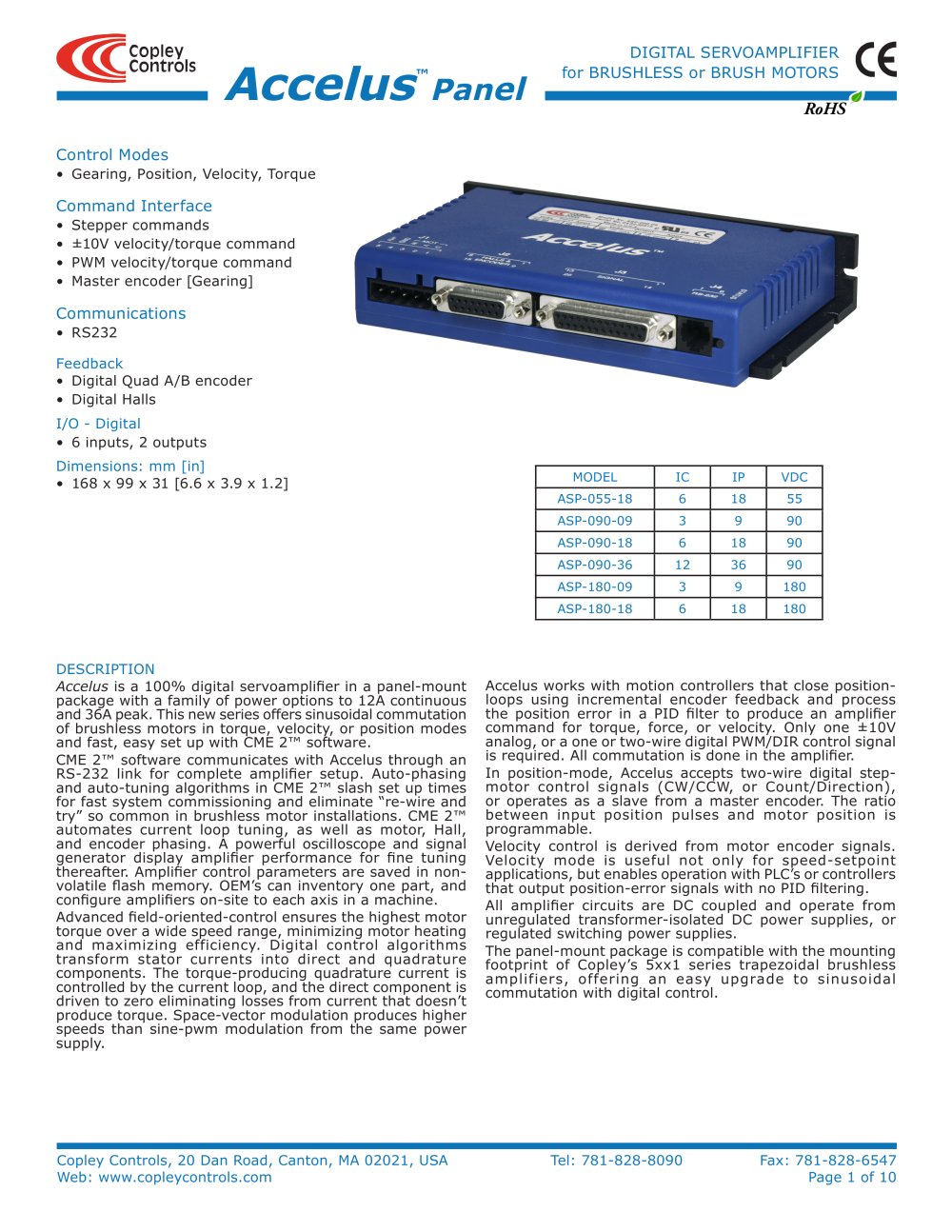

RoHS DIGITAL SERVOAMPLIFIER for BRUSHLESS or BRUSH MOTORS Copley Controls, 20 Dan Road, Canton, MA 02021, USA Tel: 781-828-8090 Fax: 781-828-6547 Web: www.copleycontrols.com Page 1 of 10 Accelus Panel ™ descriptio n Accelus is a 100% digital servoamplifier in a panel-mount package with a family of power options to 12A continuous and 36A peak. This new series offers sinusoidal commutation of brushless motors in torque, velocity, or position modes and fast, easy set up with CME 2™ software. CME 2™ software communicates with Accelus through an RS-232 link for complete amplifier setup. Auto-phasing and auto-tuning algorithms in CME 2™ slash set up times for fast system commissioning and eliminate “re-wire and try” so common in brushless motor installations. CME 2™ automates current loop tuning, as well as motor, Hall, and encoder phasing. A powerful oscilloscope and signal generator display amplifier performance for fine tuning thereafter. Amplifier control parameters are saved in non-volatile flash memory. OEM’s can inventory one part, and configure amplifiers on-site to each axis in a machine. Advanced field-oriented-control ensures the highest motor torque over a wide speed range, minimizing motor heating and maximizing efficiency. Digital control algorithms transform stator currents into direct and quadrature components. The torque-producing quadrature current is controlled by the current loop, and the direct component is driven to zero eliminating losses from current that doesn’t produce torque. Space-vector modulation produces higher speeds than sine-pwm modulation from the same power supply. Control Modes • Gearing, Position, Velocity, Torque Command Interface • Stepper commands • ±10V velocity/torque command • PWM velocity/torque command • Master encoder [Gearing] Communications • RS232 Feedback • Digital Quad A/B encoder • Digital Halls I/O - Digital • 6 inputs, 2 outputs Dimensions: mm [in] • 168 x 99 x 31 [6.6 x 3.9 x 1.2] Accelus works with motion controllers that close position-loops using incremental encoder feedback and process the position error in a PID filter to produce an amplifier command for torque, force, or velocity. Only one ±10V analog, or a one or two-wire digital PWM/DIR control signal is required. All commutation is done in the amplifier. In position-mode, Accelus accepts two-wire digital step-motor control signals (CW/CCW, or Count/Direction), or operates as a slave from a master encoder. The ratio between input position pulses and motor position is programmable. Velocity control is derived from motor encoder signals. Velocity mode is useful not only for speed-setpoint applications, but enables operation with PLC’s or controllers that output position-error signals with no PID filtering. All amplifier circuits are DC coupled and operate from unregulated transformer-isolated DC power supplies, or regulated switching power supplies. The panel-mount package is compatible with the mounting footprint of Copley’s 5xx1 series trapezoidal brushless amplifiers, offering an easy upgrade to sinusoidal commutation with digital control. MODEL Ic Ip VDC ASP-055-18 6 18 55 ASP-090-09 3 9 90 ASP-090-18 6 18 90 ASP-090-36 12 36 90 ASP-180-09 3 9 180 ASP-180-18 6 18 180
Open the catalog to page 1RoHS DIGITAL SERVOAMPLIFIER for BRUSHLESS or BRUSH MOTORS Copley Controls, 20 Dan Road, Canton, MA 02021, USA Tel: 781-828-8090 Fax: 781-828-6547 Web: www.copleycontrols.com Page 2 of 10 Accelus Panel ™ GENERAL SPECIFICATIONS Test conditions: Load = 3-phase Wye connected load, 2 mH line-line. Ambient temperature = 25 °C. +HV = HVmax MODEL ASP-055-18 ASP-090-09 ASP-090-18 ASP-090-36 ASP-180-09 ASP-180-18 Output Power Peak Current 18 (12.7) 9 (6.4) 18 (12.7) 36 (25.5) 9 (6.4) 18 (12.7) Adc (Arms) Peak time 1 1 1 1 1 1 s Continuous current 6 (4.2) 3 (2.1) 6 (4.2) 12 (8.5) 3 (2.1) 6 (4.2) Adc (Arms)...
Open the catalog to page 2RoHS DIGITAL SERVOAMPLIFIER for BRUSHLESS or BRUSH MOTORS Copley Controls, 20 Dan Road, Canton, MA 02021, USA Tel: 781-828-8090 Fax: 781-828-6547 Web: www.copleycontrols.com Page 3 of 10 Accelus Panel ™ statusstatusstatus LED A single bi-color LED gives the state of the amplifier by changing color, and either blinking or remaining solid. The possible color and blink combinations are: • Green/Solid: Amplifier OK and enabled. Will run in response to reference input. • Green/Slow-Blinking: Amplifier OK but not-enabled. Will run when enabled. • Green/Fast-Blinking: Positive or Negative limit switch...
Open the catalog to page 3RoHS DIGITAL SERVOAMPLIFIER for BRUSHLESS or BRUSH MOTORS Copley Controls, 20 Dan Road, Canton, MA 02021, USA Tel: 781-828-8090 Fax: 781-828-6547 Web: www.copleycontrols.com Page 4 of 10 Accelus Panel ™ Another type of PWM input is the “50%” type. There is only one PWM signal that connects to [IN6]. The other digital input [IN5] is not used in this mode. A 50% duty-cycle corresponds to a zero-current command in torque mode, or a zero-speed output in velocity mode. When operating Accelus in position mode, the digital reference inputs accept step-motor pulses in two formats, or quadrature-encoder...
Open the catalog to page 4RoHS DIGITAL SERVOAMPLIFIER for BRUSHLESS or BRUSH MOTORS Copley Controls, 20 Dan Road, Canton, MA 02021, USA Tel: 781-828-8090 Fax: 781-828-6547 Web: www.copleycontrols.com Page 5 of 10 Accelus Panel ™ POWER Supplies Accelus operates typically from transformer-isolated, unregulated DC power supplies. These should be sized such that the maximum output voltage under high-line and no-load conditions does not exceed the amplifiers maximum voltage rating. Power supply rating depends on the power delivered to the load by the amplifier. In many cases, the continuous power output of the amplifier is...
Open the catalog to page 5RoHS amp lifier connections DIGITAL SERVOAMPLIFIER for BRUSHLESS or BRUSH MOTORS Copley Controls, 20 Dan Road, Canton, MA 02021, USA Tel: 781-828-8090 Fax: 781-828-6547 Web: www.copleycontrols.com Page 6 of 10 Accelus Panel ™ NotesNotes 1. The function of input signals on J2-9, and J3-3,4,17,18 and output signals on J3-6, 11 are programmable. Default functions are shown. 2. The function of [IN2] on J3-5 is always amplifier Enable and is not programmable. 3. The active level of [IN2,3, and 4] is programmable as a group to pull-up or pull-down.
