Cooper Interconnect
Industrial Network Products Catalog

Industrial Network Products Catalog

Product catalog summary

Introduction
Cooper Interconnect has been a leader in interconnect systems for over 50 years, specializing in solutions for industrial and military applications. Their products support Ethernet/IP, DeviceNet™, and Profibus architectures, with connectors available in RJ45 and Micro-Mini™ (M12) series. These components are factory tested to meet ANSI/TIA/EIA and ODVA specifications, ensuring high performance and reliability. Customization options are available to meet specific customer needs.

Features Overview
The products feature industrial Cat5e cables with flexible PVC and TPE materials for easy installation and reliable signal transmission. Connectors are factory molded for quick connections and are environmentally sealed to IP68 standards, ensuring protection against dust and water. The modular design allows for easy expansion and reconfiguration, reducing installation and design time.

Specifications
The document provides detailed specifications for various products, including pin configurations for Ethernet, DeviceNet™, Seri-Plex™, and Profibus. It includes electrical data such as contact resistance, current and voltage ratings, and dielectric withstand voltage. Material data for connectors and cables are also specified, with options for nylon or stainless steel hardware.

Industrial Ethernet Products
RJ45 and Micro (M12) Ethernet cord sets and receptacles are available in various configurations and lengths, with technical data specifying voltage, amperage, and contact resistance. The products are designed to withstand harsh environments, with corrosion resistance and high-pressure wash test ratings.

DeviceNet™ Products
DeviceNet™ network plugs and cord sets are available in drop and trunk assemblies, with detailed part numbers and configurations. The products are designed for high voltage and amperage, with protection ratings and corrosion resistance specified.

Profibus Products
Profibus products are briefly mentioned, focusing on distribution systems and part number matrices for easy reference.

Technical Specifications

Voltage: 300 Volts for DeviceNet™, 60 Volts for Profibus.
Amperage: 2 Amps for most configurations, 8 Amps for certain DeviceNet™ trunk assemblies.
Dielectric Withstand: 1600 VDC for DeviceNet™, 1100 VDC for Profibus.
Contact Resistance: Less than 5 milliohms.
Protection: NEMA 1, 3, 4, 6P, and 13 IEC - IP68.
Corrosion Resistance: 500 Hour Salt Spray.
High Pressure Wash Test: 1200 PSI Spray.

Configurations

Various cord set lengths available from 0.5M to 10M, with options up to 99M.
Connector types include male and female, straight and right angle, for both inline and panel mount configurations.
Specific part numbers are provided for each configuration, with a placeholder 'x' to be replaced by the appropriate cable code.

Cable Codes

DeviceNet™: CPE, PVC Gray, Hi-Flex Gray, PVC Yellow.
Profibus: Hi-Flex Gray, PVC Green, Mid-Size PVC Gray, PVC Gray.

Material Data

Receptacle shells are made from black PVC or aluminum with black epoxy potting compound.
Contacts are brass with 30µin. gold over 50µin. nickel plating.

Receptacles

Available for both DeviceNet™ and Profibus, with various mounting options.

Notes

Lengths up to 99M are available upon request.
Consult the factory for specific cable codes and configurations.

Product Lines

Micro-Plex™ Distribution Systems: Available in 4, 6, and 8-port configurations with various wiring options.
Mini-Plex™: Offers multiple port configurations and wiring variations.
Suremate™: Features 2-4 pin configurations with different conductor sizes.
Mini-Line™ and Micro-Line™: Provide various connector sizes and configurations for sensor and control devices.
Pico-Line™ and Change-Out™: Offer different pin configurations and conductor sizes.

Network Accessories

Includes network tapping tees, terminators, field attachable connectors, and network caps and adaptors.
Materials used include Santoprene, black nylon, and diecast Zamak 5 with epoxy coating.

Customization Cooper Interconnect offers customization options for connectors to meet specific requirements if standard products do not suffice.

Contact Information Multiple locations and contact details for Cooper Interconnect are provided for customer support and inquiries.

Catalog excerpts

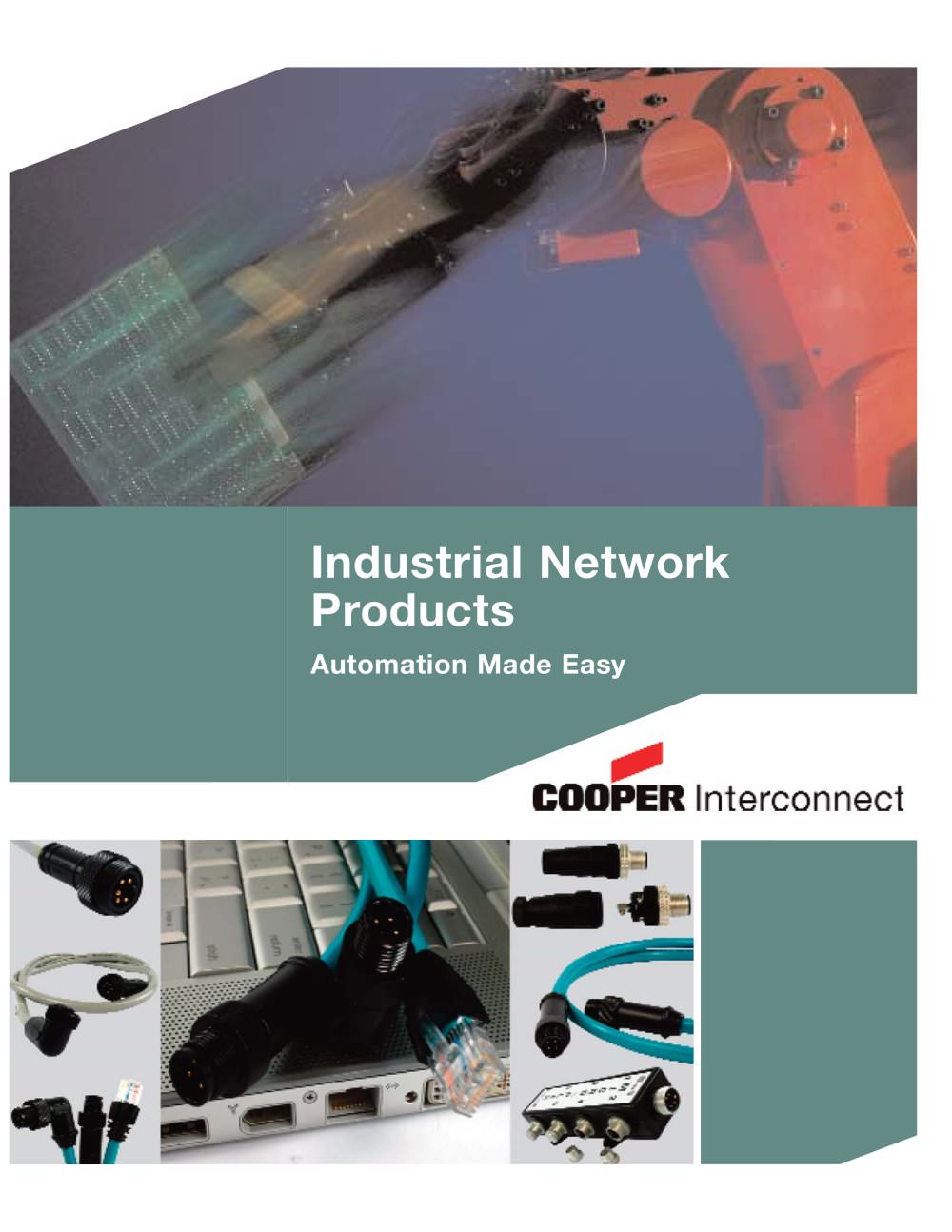

Automation Made Easy >

Open the catalog to page 1

For more than 50 years, Cooper Interconnect has both pioneered andrevolutionized interconnect systems and components for industrial and military applications.Our Industrial Network Products support Ethernet/IP, DeviceNet > , andProfibus architectures, as well as other industrial protocols for factoryfloor automation. Built on the standard RJ45 and Micro-Miniٙ (M12) series of products,Cooper Interconnect offers a full line of connectors to meet a widerange of requirements. Available infour-pin and eight-pin configurations, our proven design is the choice in factory environments. > Cooper Interconnect...

Open the catalog to page 3

2 4758 Washington Street, LaGrange, NC 28551 252-566-3014 www.cooperinterconnect.com >

Open the catalog to page 4

Industrial Cat5e cable. > Features Overview Օ Flexible PVC and TPE cable eases installation while delivering signal without interruption. Factory molded-to-cable connectors provide quick connect capability.Modular components allow for easy expansion and reconfiguration without the need for rewiring-eliminates the need for multiple cable assemblies-reduces installation time-reduces design time-lessens the need for special tools Օ Environmentally-sealed connectors rated at IP68 to prevent the ingress of dust, water and other contaminants, whichreduces maintenance and downtime. Vibration-resistant...

Open the catalog to page 5

ELECTRICAL DATA Contact Resistance <= 5m ohms Current Rating 3 AMPS Voltage Rating 300 VAC Dielectric Withstand Voltage 1600 VAC > MATERIAL DATA > Specifications RJ45 Connector Polycarbonate with black polyolefin snagless boot M12 Body TPE, yellow or black M12 Insert Pur, yellow or black Contact Machined brass Contact Plating 30 mico-inches of 24 karat gold over 50 micro-inches of nickel Coupling Nut* Diecast Zamak 5 with black epoxy coat (standard) *Nylon or stainless steel hardware available upon request. CABLE ASSEMBLY PIN/OUT COLOR CODE (FUNCTION) PIN NUMBER ETHERNET DEVICENET > SERI-PLEX...

Open the catalog to page 6

ATA Voltage: 60 VoltsAmperage: 2 AmpsContact Resistance: <5m (ohms) **Lengths up to 99M available. Note: Replace xӔ in above part numbers with appropriate cable code or consult factory. *Stainless steel hardware available upon request. MATERIAL DATA DESCRIPTION RECEPTACLE SHELL RJ45 CONNECTOR > ODES Housing Material* Black Pur, nickle-plated brass shell, blackepoxy potting compound Polycarbonate, black polyolefin snagless boot Cable*: [#24 AWG, TinnedCopper, 7 #32, Dia: 0.280"] Housing Material Flammability Rating 94 HB B = CAT5e Shielded Stranded Teal Cable Contacts Brass #24 AWG machined Phosphur...

Open the catalog to page 7

MICRO (M12) ETHERNET CORD SETS LENGTH MALE INLINESTRAIGHT TOMALE INLINE STRAIGHT MALE INLINESTRAIGHT TOMALE INLINE RIGHT ANGLE MALE INLINERIGHT ANGLETO MALE INLINE RIGHT ANGLE MALE INLINESTRAIGHT TOFEMALE STRAIGHT MALE INLINESTRAIGHT TOFEMALE RIGHT ANGLE 0.5M CH4E-ECC-x005 CH4E-ECD-x005 CH4E-EDD-x005 CH4E-ECG-x005 CH4E-ECH-x005 1M CH4E-ECC-x010 CH4E-ECD-x010 CH4E-EDD-x010 CH4E-ECG-x010 CH4E-ECH-x010 > ATA 10M** CH4E-ECC-x100 CH4E-ECD-x100 CH4E-EDD-x100 CH4E-ECG-x100 CH4E-ECH-x100 Voltage: 60VAmperage: 2 AmpsDielectric Withstand: 1100 VDCContact Resistance: <5m (ohms)Protection: NEMA 1, 3, 4,...

Open the catalog to page 8

Micro (M12) CH4E-EDD-W010 T > ECHNICAL D > ATA Voltage: 60 VoltsAmperage: 2 AmpsDielectric Withstand: 1100 VDCContact Resistance: <5m (ohms)Protection: NEMA 1, 3, 4, 6P and 13 IEC - IP68Corrosion Resistance(M12): 500 Hour Salt SprayHigh Pressure Wash Test (M12): 1200 P.S.I Spray Cooper Interconnect 4758 Washington Street, LaGrange, NC 28551 > 7 size="-1">

Open the catalog to page 9

5 POLE MICRO (M12) DEVICENET PLUGS - DROP LENGTH MALE INLINESTRAIGHT PLUG MALE INLINE RIGHT ANGLE PLUG FEMALE STRAIGHT PLUG FEMALE RIGHT ANGLE PLUG 0.5M CHDN-CC-x005 CHDN-CD-x005 CHDN-CG-x005 CHDN-CH-x005 1M CHDN-CC-x010 CHDN-CD-x010 CHDN-CG-x010 CHDN-CH-x010 2M CHDN-CC-x020 CHDN-CD-x020 CHDN-CG-x020 CHDN-CH-x020 3M CHDN-CC-x030 CHDN-CD-x030 CHDN-CG-x030 CHDN-CH-x030 > ATA **Lengths up to 99M available. **Lengths up to 99M available. Voltage: 300 VoltsAmperage: 2 AmpsDielectric Withstand: 1600 VDCContact Resistance: <5m (ohms)Protection: NEMA 1, 3, 4, 6P and 13 IEC - IP68Corrosion Resistance:...

Open the catalog to page 10

5 P > OLE M > ICRO (M12) > CHDN-CC-P010 Network Plugs T ECHNICAL D ATA Voltage: 300 VoltsAmperage: 2 AmpsDielectric Withstand: 1600 VDCContact Resistance: <5m (ohms)Protection: NEMA 1, 3, 4, 6P and 13 IEC - IP68Corrosion Resistance: 500 Hour Salt SprayHigh Pressure Wash Test: 1200 P.S.I Spray 5 P > OLE M > INI R > ECEPTACLES Cooper Interconnect 4758 Washington Street, LaGrange, NC 28551 9 size="-1">

Open the catalog to page 11

5 POLE MICRO (M12) DEVICENETٙ CORD SETS - DROP LENGTH MALE INLINESTRAIGHT TO MALE INLINE STRAIGHT MALE INLINE STRAIGHT TO MALE INLINE RIGHT ANGLE MALE INLINE RIGHT ANGLE TO MALE INLINE RIGHT ANGLE MALE INLINE STRAIGHT TO FEMALE STRAIGHT MALE INLINE STRAIGHT TO FEMALE RIGHT ANGLE 0.5M CHDN-ECC-x005 CHDN-ECD-x005 CHDN-EDD-x005 CHDN-ECG-x005 CHDN-ECH-x005 1M CHDN-ECC-x010 CHDN-ECD-x010 CHDN-EDD-x010 CHDN-ECG-x010 CHDN-ECH-x010 > 5M CHDN-ECC-x050 CHDN-ECD-x050 CHDN-EDD-x050 CHDN-ECG-x050 CHDN-ECH-x050 > ECHNICAL ATA 10M** CHDN-ECC-x100 CHDN-ECD-x100 CHDN-EDD-x100 CHDN-ECG-x100 CHDN-ECH-x100 Voltage:...

Open the catalog to page 12

5 POLE MINI DEVICENETٙ CORD SETS - DROP LENGTH MALE INLINE RIGHTANGLE TO FEMALE STRAIGHT MALE INLINE RIGHT ANGLE TO FEMALE RIGHT ANGLE FEMALE STRAIGHT TO FEMALE STRAIGHT FEMALE RIGHT ANGLE TO FEMALE RIGHT ANGLE 0.5M CHDN-EBE-x005 CHDN-EBF-x005 CHDN-EEE-x005 CHDN-EFF-x005 1M CHDN-EBE-x010 CHDN-EBF-x010 CHDN-EEE-x010 CHDN-EFF-x010 > Network Cord Sets 2M CHDN-EBE-x020 CHDN-EBF-x020 CHDN-EEE-x020 CHDN-EFF-x020 3M CHDN-EBE-x030 CHDN-EBF-x030 CHDN-EEE-x030 CHDN-EFF-x030 > ATA **Lengths up to 99M available. Note: Replace xӔ in above part numbers with appropriate cable code or consult factory. **Lengths...

Open the catalog to page 13

5 POLE MINI TO MICRO (M12) DEVICENETٙ CORD SETS - DROP LENGTH MINI FEMALESTRAIGHT TO MICRO (M12) MALE INLINE STRAIGHT MINI FEMALE STRAIGHT TO MICRO (M12) MALE INLINE RIGHT ANGLE MINI FEMALE STRAIGHT TO MICRO (M12) FEMALE STRAIGHT MINI FEMALE STRAIGHT TO MICRO (M12) FEMALE RIGHT ANGLE 0.5M CHDN-EEC-x005 CHDN-EED-x005 CHDN-EEG-x005 CHDN-EEH-x005 > ATA 5M CHDN-EEC-x050 CHDN-EED-x050 CHDN-EEG-x050 CHDN-EEH-x050 Voltage: 300 VoltsAmperage: 2 AmpsDielectric Withstand: 1600 VDCContact Resistance: <5m (ohms)Protection: NEMA 1, 3, 4, 6P and 13 IEC - IP68Corrosion Resistance: 500 Hour Salt SprayHigh Pressure...

Open the catalog to page 14
