CoolMag Machine Tool Filter
2Pages

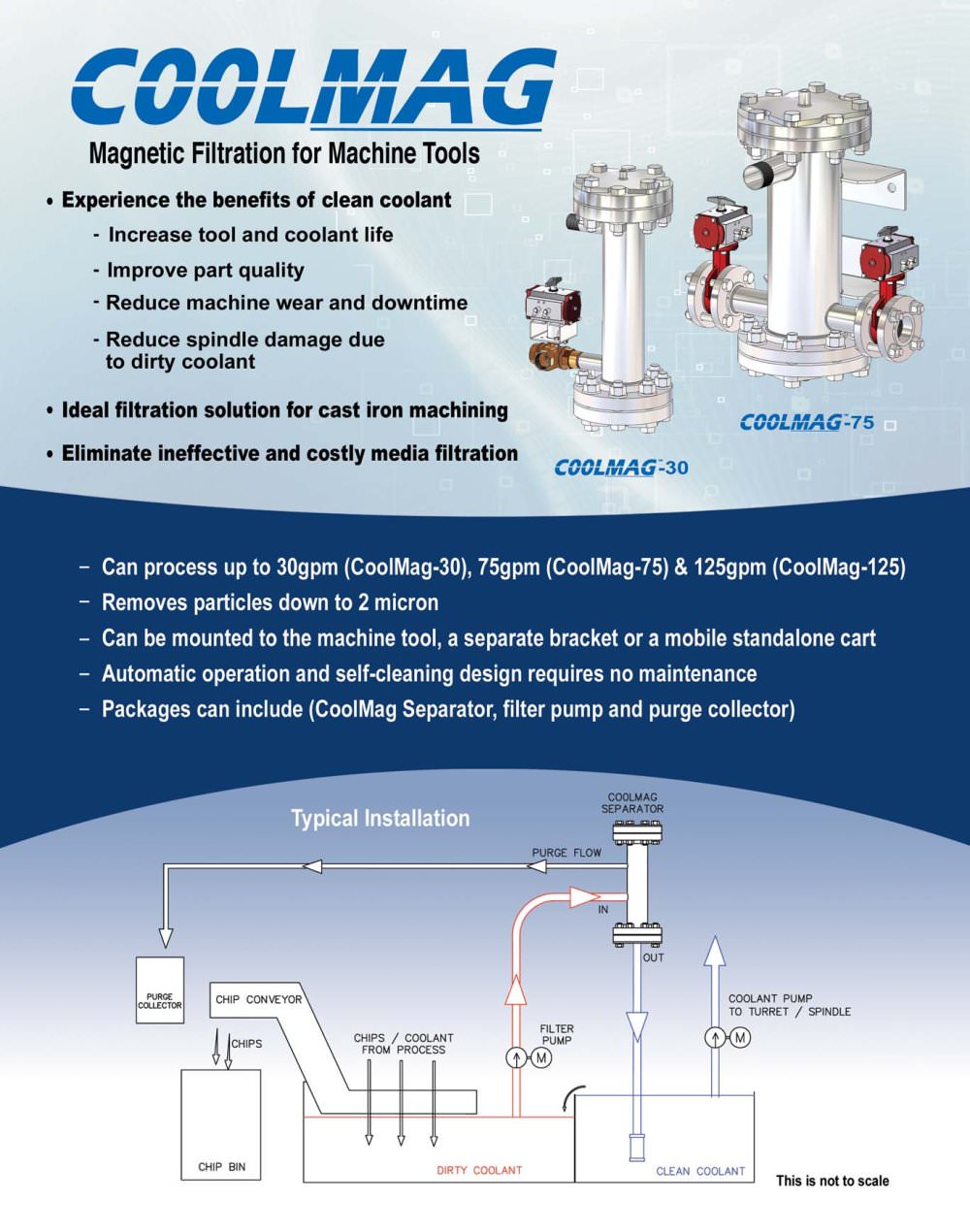

/i/ifmmn_ i/i/-ivu-i%J Magnetic Filtration for Machine Tools Exprience the benefits of clean coolant - Increase tool and coolant life - Improve part quality - Reduce machine wear and downtime - Reduce spindle damage due to dirty coolant Id੩al filtration solution for cast iron machining Eliminate ineffective and costly mdia filtration ma m v. wuivmxj -ou Can process up to 30gpm (CoolMag-30), 75gpm (CoolMag-75) & 125gpm (CoolMag-125) Removes particles down to 2 micron Can be mounted to the machine tool, a separate bracket or a mobile standalone cart Automatic opration and self-cleaning design requires no maintenance Packages can include (CoolMag Separator, filter pump and purge collector) COOLMAG SEPARATOR rr-n im rm rrr\ Typical Installation PURGE FLOW < U"JJ' 'Uf TTT' <3= V : IN OUT PURGE COLLECTOR CHIP CONVEYOR CHIPS / COOLANT FROM PROCESS FILTER PUMP V M COOLANT PUMP TO TURRET / SPINDLE IcHIPS L ®<M) CHIP BIN DIRTY COOLANT CLEAN COOLANT This is not to scale

Considrations Tank layout/flow and low pressure pump configuration are the key consid镩rations for determining the proper CoolMag package The CoolMag can be mounted on or near to the machine tool. CoolJet can also provide a standalone cart that includes ail necessary components, in a mobile platform. Օ CoolMag control voltage can be pulled from the machine tool, (110VAC or 24VDC) 80-120psi clean, lubricated air supply is required Օ CoolJet packages will supply standard plumbing hardware to connect the CoolMag CoolJet packages can include the necessary filter pump and ail installation...
