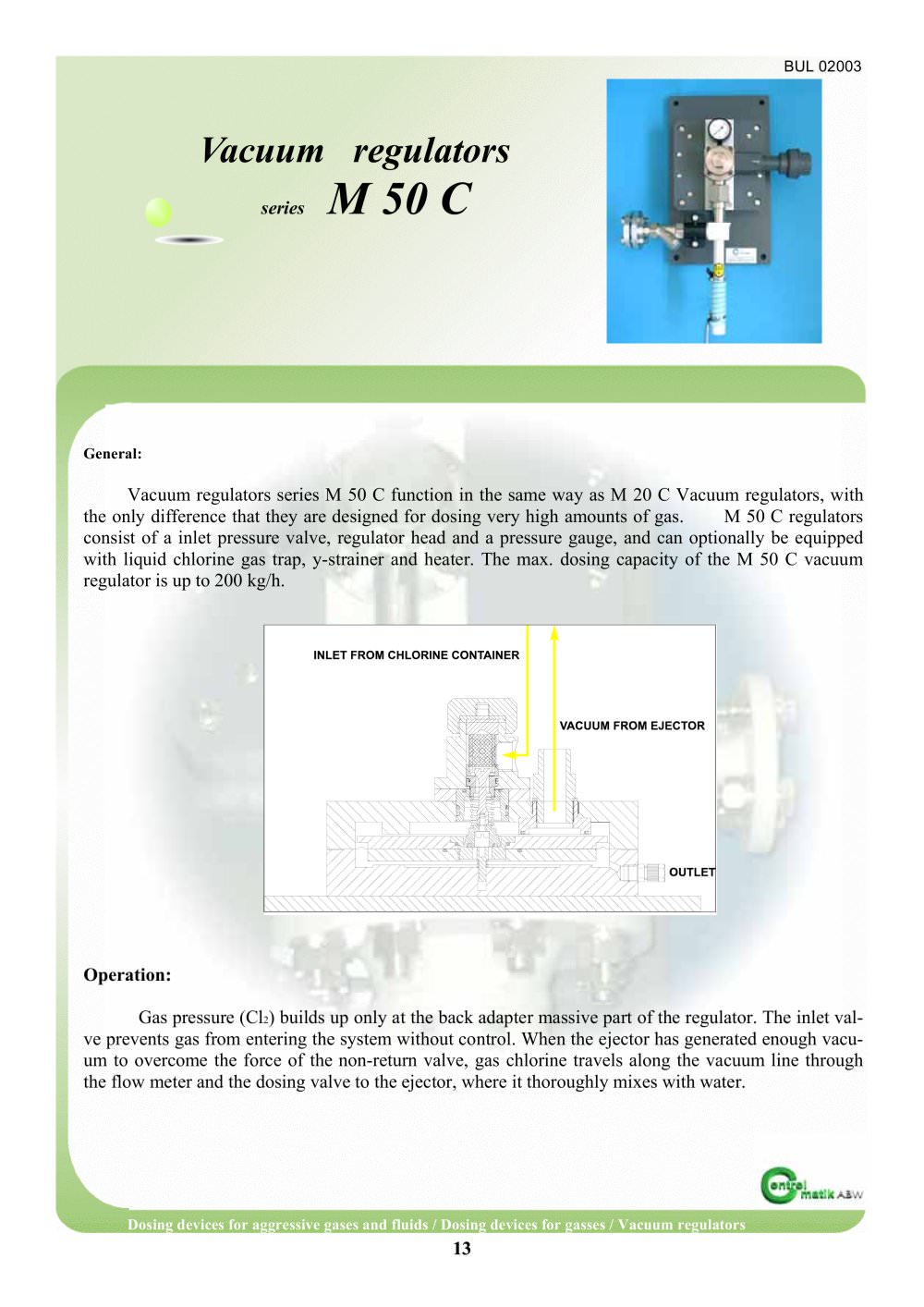

General: Vacuum regulators series M 50 C function in the same way as M 20 C Vacuum regulators, with the only difference that they are designed for dosing very high amounts of gas. M 50 C regulators consist of a inlet pressure valve, regulator head and a pressure gauge, and can optionally be equipped with liquid chlorine gas trap, y-strainer and heater. The max. dosing capacity of the M 50 C vacuum regulator is up to 200 kg/h. Operation: Gas pressure (Cl > 2 ) builds up only at the back adapter massive part of the regulator. The inlet val-ve prevents gas from entering the system without control. When the ejector has generated enough vacu-um to overcome the force of the non-return valve, gas chlorine travels along the vacuum line through the flow meter and the dosing valve to the ejector, where it thoroughly mixes with water. > Dosing devices for aggressive gases and fluids / Dosing devices for gasses / Vacuum regulators 131313 >

Open the catalog to page 1

Pressure: Flange connection D3/4ђ NP16 DN20 (DIN2633) from 60 up to 120 kg > Model Gas type Dosing range Pressure Gauge (yes/no) Filter (yes/no) Chlorine trap(yes/no) Heater(yes/no) Options: -Gas type , ғC - Cl2, ԓS - SO2, ԓN - NH3 -Dosing range is chosen from technical data table and the suitable number is written into the ordering code -Pressure gauge -ԓM , without it the letter is not written in -Filter ԓ F , if selected, then chlorine gas trap ԓ T and heater ԓ H canԒt be present -Chlorine gas trap > T Ӕ, without it the letter is not written in -Heater H Ӕ, can only be written in if the...
