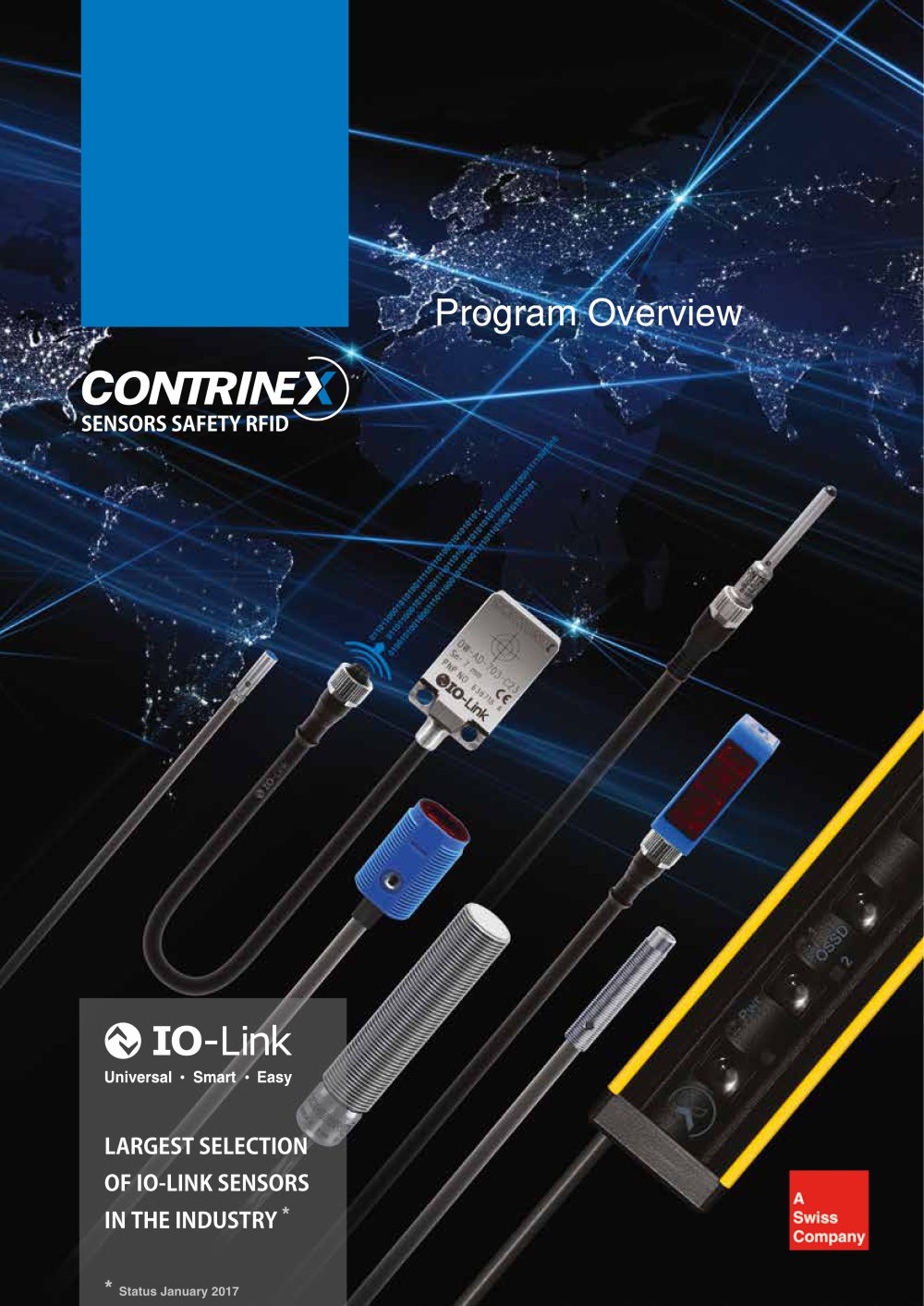

SENSORS SAFETY RFID Universal • Smart Swiss Company LARGEST SELECTION OF IO-LINK SENSORS IN THE INDUSTRY *

At a glance s Technology leading manufacturer of inductive and photoelectric sensors as well as Safety and RFID systems s World market leader for miniature sensors, sensors with long operating distances and devices for particularly demanding operating conditions (all-metal, high-pressure and high-temperature resistant sensors) S Represented in over 60 countries worldwide, headquarters in Switzerland S 8000 products INTELLIGENT SENSORS FOR THE 4TH INDUSTRIAL REVOLUTION: INDUSTRY 4.0 Fit for the future with 10-Link Intelligent sensors are the fundamental building blocks of modern smart factories....

SENSORS INDUCTIVE BASIC MINIATURE EXTREME EXTRA PRESSURE HIGH PRESSURE EXTRA TEMPERATURE HIGH TEMPERATURE WASHDOWN ANALOG OUTPUT WELD-IMMUNE PHOTOELECTRIC CYLINDRICAL SUBMINIATURE CYLINDRICAL MINIATURE CYLINDRICAL SMALL CUBIC SUBMINIATURE CUBIC MINIATURE CUBIC SMALL CUBIC COMPACT FIBER-OPTIC AMPLIFIERS, FIBERS LIGHT GRIDS SENSOR TESTER ULTRASONIC SHORT HOUSING STANDARD HOUSING LARGE FRONT CAPACITIVE BASIC HIGH PERFORMANCE RFID LOW AND HIGH FREQUENCY TRANSPONDERS CONTRINET USB READ/WRITE MODULES HANDHELD DEVICES SOFTWARE SAFETY LIGHT CURTAINS HAND PROTECTION, Type 2 (slim) FINGER PROTECTION Type...

IO-LINK FUNCTIONALITY* WITH INDUCTIVE SENSORS Data monitoring: Switching state is monitored continuously. This not only monitors the signal itself, but also the state at 80% of the switching distance. One can therefore ensure that the sensor is not working at the limit of its specifications. Diagnosis: The operating state of the sensor is checked. In case of wire break, under-voltage, LC oscillator break or installation of the wrong sensor, information is provided directly through IO-Link to enable fast repair, maintenance and replacement. NO/NC selection: The output switching mode can be selected...

IO-LINK FUNCTIONALITY* WITH PHOTOELECTRIC SENSORS 1 Data monitoring: Detection status is monitored and continuously transmitted through IO-Link process data. This data contains both the detection state and the stability of detection (sufficient detection margin). It is possible, therefore, to determine whether the sensor is working too close to its detection threshold, for example due to window contamination. Diagnosis: The operating state of the sensor is checked. In case of wire break, under-voltage, disturbances on the receiver, sensor malfunction or installation of the wrong sensor, information...

INDUCTIVEEXCELLENCE IN NORMAL ENVIRONMENTS BASIC KEY ADVANTAGES S Exceptional price/performance ratio S Excellent accuracy S Outstanding switching-point stability due to digital temperature compensation S Vibration and shock resistant S Long operating distances S Special material detection (e.g. carbon fiber) INDUSTRIES Textiles, green energy, machine tools, automotive manufacturing, logistics, packaging machines © IO-Link ® IO-Link = coming soon 6 | Detailed data sheets for these products can be found on the Contrinex website:

EXTREME DURABILITY IN HARSH ENVIRONMENTS EXTREME KEY ADVANTAGES S One-piece stainless-steel housing S Mechanically and chemically extremely robust S Corrosion resistant S IP 68 and IP 69K, sea-water resistant S Pressure resistant up to 100 bar (1451 psi) S Factor 1 on steel and aluminum INDUSTRIES Automotive manufacturing, mobile equipment, packaging, machine tools

KEY ADVANTAGES S Highest operating (500 bar / 7255 psi) and peak pressure (1000 bar / 14510 psi) on the market S Resistant to pressure cycles / 50 times longer lifetime under pressure than the market standard S Gas-tight sensing face S Large temperature range -25°C (-13°F) ... +100°C (+212° F) INDUSTRIES Hydraulic and fluid power, concrete pumps, injection molding machines @ IO-Link = coming soon EXTRA TEMPERATURE KEY ADVANTAGES S Temperature resistant up to +120°C (+248°F) S Excellent long term reliability S Outstanding accuracy INDUSTRIES Machine tools, green industry, aerospace, automotive...

HIGH TEMPERATURE KEY ADVANTAGES S Models with external electronics for temperatures of up to +230°C (+446°F) S Models with integrated electronics for temperatures of up to +180°C (+356°F) S Excellent long term reliability S Silicone free versions Paintshops, surface treatment, bakery equipment ECOLAB APPROVED FOR HARSHEST CLEANING PROCESSES WASHDOWN KEY ADVANTAGES S Corrosion resistant S Food safe (FDA and Ecolab approved) S Version with metal housing and PPS sensing face (Classics) S Versions with one-piece full-metal housing (Full Inox) S IP 68 / IP 69K protection S Waterproof sensor, sea-water...

ANALOG OUTPUT FOR DISTANCE CONTROL ANALOG OUTPUT KEY ADVANTAGES S Longest sensing ranges S Best temperature stability S Excellent repeat accuracy S Resolution in p,m range S Current or voltage output INDUSTRIES Machine tools, printing, metal sorting, quality control, vibration monitoring DURABLE AND RELIABLE IN WELDING CELLS WELD-IMMUNE KEY ADVANTAGES S Resistant to electromagnetic fields of up to 40 millitesla S Extremely robust S Easy to clean - even using harsh methods S No false switching caused by metal dust or chips S Factor 1 on steel and aluminum S No extra protection needed S Long operating...

THE SMALLEST ON THE MARKET CYLINDRICAL SUBMINIATURE KEY ADVANTAGES S 0 4 and M5 housings for target detection in limited spaces S Rugged metal housing S Accurate target detection due to cylindrical light beam S Rugged sapphire glass or glass sensing face, scratch and chemically resistant S Shock and vibration resistant due to fully vacuum potted electronics S High system reserves (excess gain) INDUSTRIES Precision engineering, semiconductors, electronics, vending machines, miniature conveyors, grippers @ IO-Link = coming soon KEY ADVANTAGES S M12 miniature sensor series S Rugged metal housing S...

M18 STANDARD SIZE, INCLUDING 90° SENSING KEY ADVANTAGES Metal version: S Models for lateral sensing S Rugged metal housing S Shock and vibration resistant due to fully vacuum potted electronics S Laser sensor (protection class 2) INDUSTRIES Plastic version: S Short housing: 18 x 33 mm (cable) / 18 x 37 mm (connector) S Special optics with Pinpoint LED for excellent background suppression S IO-Link on all PNP sensors S Easy flush-mounting S Special accessory for right-angle emission Automotive manufacturing, machine tools, logistics, textiles, green energy, packaging, filling machines, aerospace...
