Overview: This document outlines the specifications and features of NFPA/JIC Style Hydraulic Power Units, engineered for continuous industrial use. These units are applicable in various systems such as pressing, clamping, machine tools, and conveyors.

Features: The units are equipped with TEFC or ODP C-Face electric motors, return coupling with reservoir downpipes, and a selection of pumps including pressure compensated variable volume continental vane or axial piston pumps. Additional features include flexible drive couplings, removable top plates, and enhanced air circulation for optimal heat dissipation.

Specifications: The document specifies units with capacities from 10 to 90 gallons, detailing dimensions and motor frame sizes. Features include sight level/temperature gauges, SAE O-ring fittings, and pressure plumbed lines.

Typical Applications: These power units are suitable for industrial trash compactors, balers, machine feeder systems, and machining centers, providing flexibility and durability.

Ordering Information: A detailed list of model description codes is provided for ordering, including options for reservoirs, motors, pressure gauges, and additional components such as air bleed valves and check valves.

Technical Drawings: The document includes dimension drawings and schematic codes for each unit capacity, showing layout and connection points for installation and maintenance.

Catalog excerpts

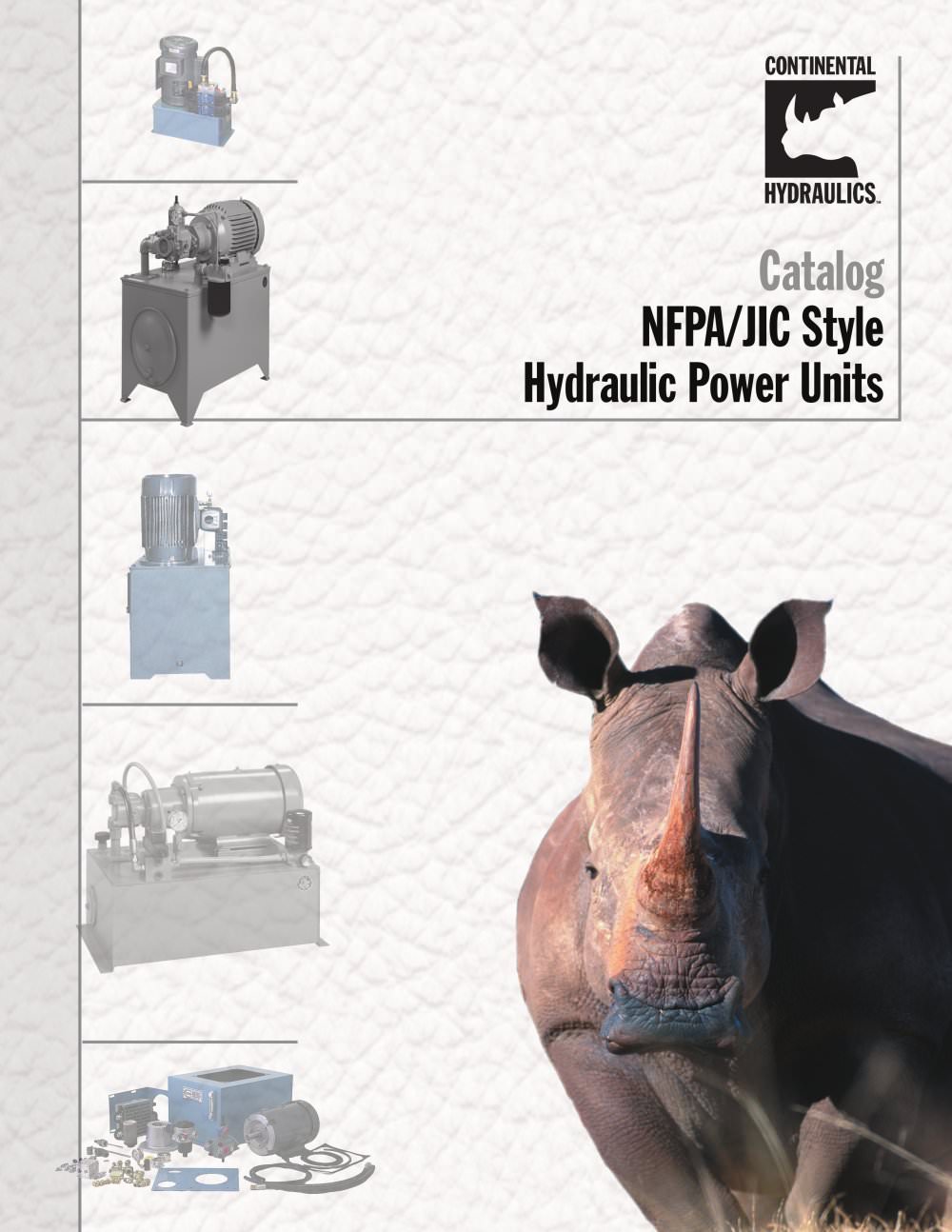

CatalogNFPA/JIC StyleHydraulic Power Units >

Open the catalog to page 1

Machine Identifiction and Warning Tags TEFC or ODP C-FaceElectric Motor Return Coupling WithReservoir Downpipes Cut at 45 Angles Qty. 2 Strainer Sized to Pass2-3 Times the Pump's Maximum Flow @ Minimum Pressure Drop Pump Choices:Pressure CompensatedVariable Volume ContinentalVane or Axial Piston PumpWith Start-Up informationInlet Flange Sized forEasy Removal of Strianerfor Routine Cleaning Case DrainPlumbing Floor MountingHoles Qty. 4 Flexible Drive Couplingsand Pump/Motor Adapter Inlet Plumbing Removable Top Plate(3/8" HRPO 1020 Steel) Top Plate Channel Gasket Keeps Airborne Particles Out and...

Open the catalog to page 4

OptionalReturnFilter Flow Range Up to 10 gpm (37.8 lpm) Pressure Range Up to 2000 psi (138 bar) Power Range Up to 5 HP (3.7 kW) Pump Data* > 10 Gallons (37.8 Liters)1"CleanoutCover1/2" NPT Return1"3/8"1" Optional Gaugeand Snubber 3/4" NPT Drain 1" NPT Spare ReturnWith Downpipe1" NPTSAE-12 Reservoir Capacity 10 Gal. (37.8 liters)Surface Area For Heat Transfer 6.11 sq. ft. (5676.2 cm) Heat Dissipation Sq. Ft. of Vertical Steel x ҢȆ T / 1000Basic Weight (Less Oil, Pump, and Motor) 180 lbs. (81.7 kg) Usable Gallons 3.69 Gal. (14.0 liters) Gallons Per Inch Rise 1.32 Gal. (5.0 liters) Capacity, Full...

Open the catalog to page 7

OptionalReturnFilter Flow Range Up to 10 gpm (37.8 lpm) Pressure Range Up to 2000 psi (138 bar) Power Range Up to 10 HP (7.5 kW) Pump Data* > 20 Gallons (75.7 Liters)1"CleanoutCover1" NPT Return1"3/8"1" Optional Gaugeand Snubber 3/4" NPT Drain 1" NPT Spare ReturnWith Downpipe1" NPTSAE-12 Reservoir Capacity 20 Gal. (75.7 liters)Surface Area For Heat Transfer 9.50 sq. ft. (8825.5 cm) Heat Dissipation Sq. Ft. of Vertical Steel x ҢȆ T / 1000Basic Weight (Less Oil, Pump, and Motor) 244 lbs. (110.7 kg) Usable Gallons 7.40 Gal. (28.0 liters) Gallons Per Inch Rise 2.13 Gal. (8.1 liters) Capacity, Full...

Open the catalog to page 9

OptionalReturnFilter Flow Range Up to 8 gpm (30.3 lpm) Pressure Range Up to 3000 psi (207 bar) Power Range Up to 20 HP (14.9 kW) Pump Data* > 20 Gallons (75.7 Liters)1"CleanoutCover1" NPT Return1"3/8"1/2"1"3/4" NPT Drain 1" NPT Spare ReturnWith Downpipe 1" NPTSAE-12 Reservoir Capacity 20 Gal. (75.7 liters)Surface Area For Heat Transfer 9.50 sq. ft. (8825.5 cm) Heat Dissipation Sq. Ft. of Vertical Steel x ҢȆ T / 1000Basic Weight (Less Oil, Pump, and Motor) 243 lbs. (110.2 kg) Usable Gallons 7.40 Gal. (28.0 liters) Gallons Per Inch Rise 2.13 Gal. (8.1 liters) Capacity, Full to Top Plate 24.76 Gal....

Open the catalog to page 11

OptionalReturnFilter Flow Range Up to 6 gpm (22.7 lpm) Pressure Range Up to 3500 psi (241 bar) Power Range Up to 20 HP (14.9 kW) Pump Data* > 20 Gallons (75.7 Liters)1"CleanoutCover1" NPT Return1"1/2"1"3/4" NPT Drain 1" NPT Spare ReturnWith Downpipe 1" NPTSAE-12 Reservoir Capacity 20 Gal. (75.7 liters)Surface Area For Heat Transfer 9.50 sq. ft. (8825.5 cm) Heat Dissipation Sq. Ft. of Vertical Steel x ҢȆ T / 1000Basic Weight (Less Oil, Pump, and Motor) 244 lbs. (110.7 kg) Usable Gallons 7.40 Gal. (28.0 liters) Gallons Per Inch Rise 2.13 Gal. (8.1 liters) Capacity, Full to Top Plate 24.76 Gal....

Open the catalog to page 13

OptionalReturnFilter Flow Range Up to 10 gpm (37.8 lpm) Up to 10 gpm (37.8 lpm) Pressure Range Up to 2000 psi (138 bar) Up to 2000 psi (138 bar) Power Range Up to 20 HP (14.9 kW) Up to 20 HP (14.9 kW) Pump Data* > 35 Gallons (132.5 Liters)50 Gallons (189.2 Liters)1-1/4"CleanoutCover Qty. 21-1/2" NPT Return1"3/8"1-1/4" Optional Gaugeand Snubber 3/4" NPT Drain 1-1/4" NPT Spare ReturnWith Downpipe 1" NPTSAE-12 Reservoir Capacity 35 Gal. (132.5 liters) 50 Gal. (189.2 liters)Surface Area For Heat Transfer 13.44 sq. ft. (1.25 m) 17.27 sq. ft. (1.60 mҲ) Heat Dissipation Sq. Ft. of Vertical Steel x ∆...

Open the catalog to page 15

OptionalReturnFilter Flow Range Up to 30 gpm (113.5 lpm) Up to 30 gpm (113.5 lpm) Pressure Range Up to 2000 psi (138 bar) Up to 2000 psi (138 bar) Power Range Up to 30 HP (22.4 kW) Up to 30 HP (22.4 kW) Pump Data* > 35 Gallons (132.5 Liters)50 Gallons (189.2 Liters)1-1/4"CleanoutCover Qty. 21-1/2" NPT Return1-1/2"1/2"1-1/4" Optional Gaugeand Snubber 3/4" NPT Drain 1-1/4" NPT Spare ReturnWith Downpipe 1-1/4" NPTSAE-16 Reservoir Capacity 35 Gal. (132.5 liters) 50 Gal. (189.2 liters)Surface Area For Heat Transfer 13.44 sq. ft. (1.25 m) 17.27 sq. ft. (1.60 mҲ) Heat Dissipation Sq. Ft. of Vertical...

Open the catalog to page 17

OptionalReturnFilter 3/8" Flow Range Up to 8 gpm (30.3 lpm) Up to 8 gpm (30.3 lpm) Pressure Range Up to 3000 psi (207 bar) Up to 3000 psi (207 bar) Power Range Up to 20 HP (14.9 kW) Up to 20 HP (14.9 kW) Pump Data* > 35 Gallons (132.5 Liters)50 Gallons (189.2 Liters)1-1/4"CleanoutCover Qty. 21-1/2" NPT Return1"1/2"1-1/4"3/4" NPT Drain 1-1/4" NPT Spare ReturnWith Downpipe 1" NPTSAE-12 Reservoir Capacity 35 Gal. (132.5 liters) 50 Gal. (189.2 liters)Surface Area For Heat Transfer 13.44 sq. ft. (1.25 m) 17.27 sq. ft. (1.60 mҲ) Heat Dissipation Sq. Ft. of Vertical Steel x ∆ T / 1000Basic Weight (Less...

Open the catalog to page 19

1-1/4" NPTSAE-16 OptionalReturnFilter 1-1/2"3/8"1/2"1-1/4" CleanoutCover Qty. 21-1/2" NPT Return Flow Range Up to 15 gpm (56.8 lpm) Up to 15 gpm (56.8 lpm) Pressure Range Up to 3000 psi (207 bar) Up to 3000 psi (207 bar) Power Range Up to 30 HP (22.4 kW) Up to 30 HP (22.4 kW) Pump Data* > 3/4" NPT Drain 1-1/4" NPT Spare ReturnWith Downpipe 35 Gallons (132.5 Liters)50 Gallons (189.2 Liters)1-1/4" Reservoir Capacity 35 Gal. (132.5 liters) 50 Gal. (189.2 liters)Surface Area For Heat Transfer 13.44 sq. ft. (1.25 m) 17.27 sq. ft. (1.60 mҲ) Heat Dissipation Sq. Ft. of Vertical Steel x ∆ T / 1000Basic...

Open the catalog to page 21

OptionalReturnFilter Flow Range Up to 36 gpm (136.2 lpm) Up to 36 gpm (136.2 lpm) Pressure Range Up to 3000 psi (207 bar) Up to 3000 psi (207 bar) Power Range Up to 75 HP (55.9 kW) Up to 75 HP (55.9 kW) Pump Data* > 35 Gallons (132.5 Liters)50 Gallons (189.2 Liters)1-1/4"CleanoutCover Qty. 21-1/2" NPT Return2"3/4"1-1/4"3/4" NPT Drain 1-1/4" NPT Spare ReturnWith Downpipe 1-1/4" NPTSAE-20 Reservoir Capacity 35 Gal. (132.5 liters) 50 Gal. (189.2 liters)Surface Area For Heat Transfer 13.44 sq. ft. (1.25 m) 17.27 sq. ft. (1.60 mҲ) Heat Dissipation Sq. Ft. of Vertical Steel x ∆ T / 1000Basic Weight...

Open the catalog to page 23
