CONTINENTAL HYDRAULICS
Modular Stack Valves

Modular Stack Valves

Product catalog summary

Overview: The PowrFlow™ Modular Stack Valves by Continental Hydraulics are engineered for high performance and reliability in demanding applications. They are available in various port sizes (D03, D05, D08) and offer functionalities such as check, flow control, relief, shuttle, and pressure reducing. Rated at 5000 PSI, these valves come with a three-year warranty.

Key Features:

High Pressure Rating: Rated at 5000 PSI at full flow.
Design: Patented floating cage design for self-alignment, advanced orifice design to prevent clogging, and black anodized bodies for durability.
Materials: Available in ductile iron or aluminum bodies.
Adjustments: Options include standard screw, tamper-proof cap, and hand-knob adjustments.

Specifications:

Flow: Nominal flow rates vary by valve type, with check valves supporting up to 20 GPM.
Temperature: Operates effectively up to 200°F, though temperatures above 130°F are not recommended for safety.
Filtration: 25 microns acceptable, 10 microns preferred.

Valve Types and Operations:

Check Valves: Allow free flow in one direction and block in the opposite. Available in direct and pilot-operated versions.
Flow Control Valves: Include pressure compensated and sub-plate mount options.
Pressure Control Valves: Include pressure relief, reducing, and sequence valves.

Ordering Information: Specific ordering codes are provided for each valve type based on size, style, and material.

Conclusion: PowrFlow™ Modular Stack Valves provide a comprehensive solution for hydraulic systems requiring reliable and high-performance components, ensuring long-term functionality and safety in various industrial applications.

Additional Specifications:

Valve bodies withstand pressures of 3000 PSI for aluminum and 5000 PSI for ductile iron.
Nominal flow rate is 60 GPM.
Pilot ratio is 3 to 1, with internal leakage limited to 5 drops per minute at 5000 PSI.
Compatible with general-purpose hydraulic fluids, requiring filtration of 25 microns, with 10 microns preferred.

Design and Ordering Information: Valves are available in modular stack designs with options for pilot-operated check valves and non-compensated flow control valves. Ordering codes specify valve type, size, style, control port, seals, and body material.

Flow Control Valves: Utilize a screw-in cartridge type, adjustable poppet design. They are non-compensated and feature zinc-plated external parts for durability. Flow rates vary from 10 GPM to 60 GPM depending on the model.

Features and Benefits: All external parts are zinc-plated for longevity. Valves are designed with industry-standard cavities and anodized aluminum for corrosion resistance. They are 100% functionally tested to ensure reliability.

Pressure Compensated Flow Control Valves: Maintain a constant flow rate regardless of system pressure or load changes, featuring reverse flow checks and adjustable settings.

Specifications:

Flow Range: 0.1 to 12 GPM nominal, with accuracy less than ±5% at a minimum of 200 PSI pressure differential.
Valve Bodies: Available in aluminum (3000 PSI) and ductile (5000 PSI) materials.
Operating Temperature: Fluid temperatures up to 200°F are acceptable, though temperatures above 130°F are not recommended for safety reasons.
Operating Media: Compatible with general-purpose hydraulic fluids.
Filtration: 25 microns acceptable; 10 microns preferred.

Operation: Valves maintain a constant flow rate regardless of system pressure or load changes. Reverse flow opens the check at 10 PSI, ensuring efficient operation under varying conditions.

Additional Features:

Anti-lunge assembly to prevent spool over-opening during initial activation.
Standard key lock assembly to prevent unauthorized tampering with valve settings.

Performance Charts: Includes typical pressure drop curves and flow path ΔP curves to illustrate valve performance under different conditions.

Valve Types:

Pressure Reducing Valve: Pilot operated, acts as a pressure regulating device for a secondary circuit.
Pressure Reducing/Relieving Valve: Similar to the reducing valve but also relieves pressure from the controlled port to the drain port.
Pressure Sequence Valve: Blocks flow until sufficient pressure is present, then opens to allow flow.

Additional Components:

Modular stack valve bolt kits with specifications for different NFPA standards.

Catalog excerpts

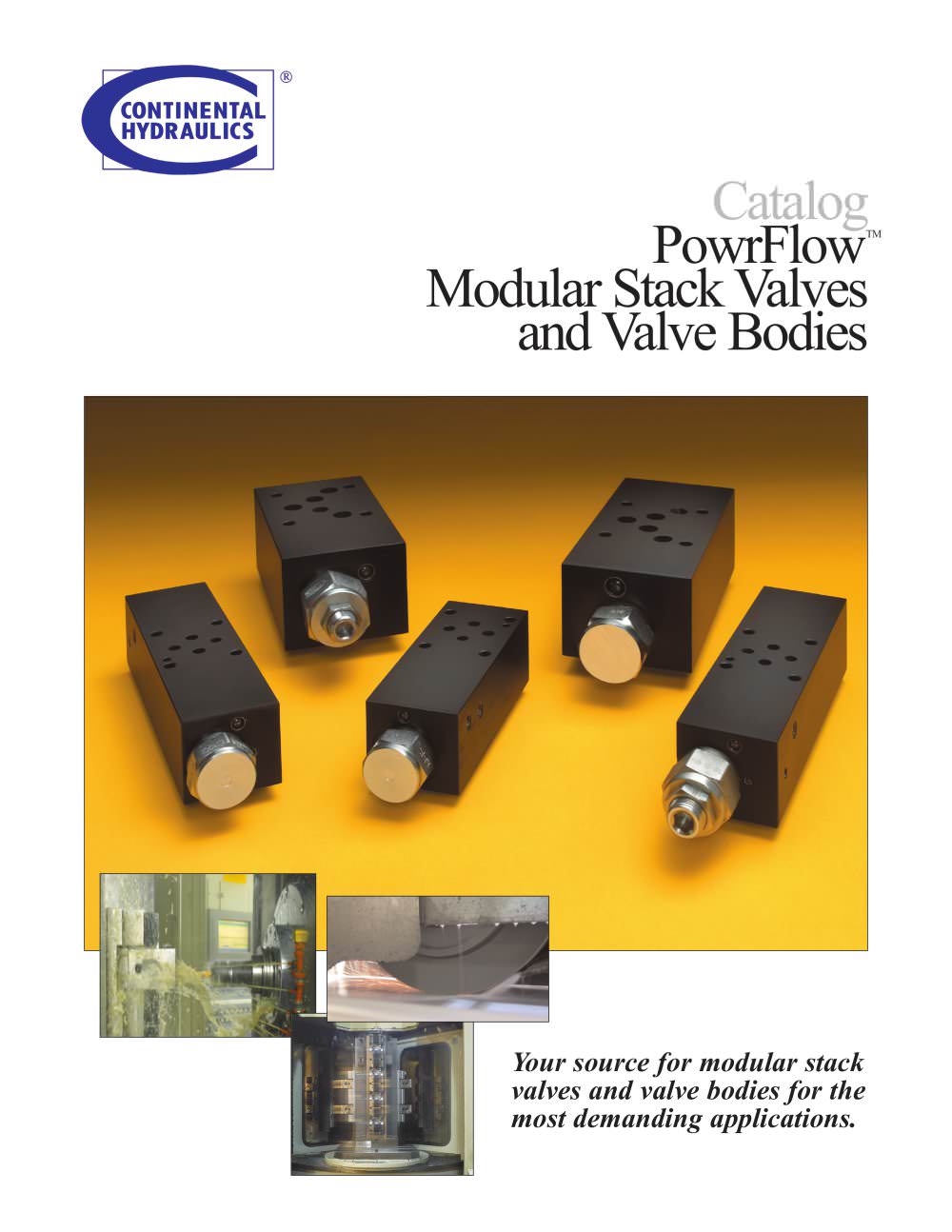

Catalog PowrFlow Modular Stack Valves and Valve Bodies Your source for modular stack valves and valve bodies for the most demanding applications.

Open the catalog to page 1

What Makes PowrFlow™ Modular Stack Valves Your Best Buy? Continental Hydraulics PowrFlow™ Modular Valves deliver the performance, reliability and value you’ve come to expect in all our products. Here are just a few reasons to choose the PowrFlow™ line for your application. 5000 PSI Rated at Full Rated Flow Designed to Resist Working Loose 100% Tested Three Year Warranty Modular Stack Valves Full Range of Valves You can choose check, flow, relief and shuttle valves. Valves are rated to 5000 PSI at full rated flow Patented Floating Cage Design Self-aligning cage won’t bind or crimp when the housing...

Open the catalog to page 2

Check Valves Pressure Control Valves Cartridge Check Valve Flow Control Valves (Counterbalance) . . . . . . . . . . . . . . . . . . . . . . 70-72 Flow Control Valves (Pressure Compensated) Valve Bolt Kits . . . . . . . . . . . . . . . . . . . . . . . . .76

Open the catalog to page 3

DIRECT AND PILOT OPERATED MODULAR STACK CHECK VALVES

Open the catalog to page 4

CHECK VALVE Direct Operated FREE FLOW DESCRIPTION Utilizes a cartridge type guided poppet, and hydraulic check valve as a blocking or load holding device for high-pressure applications. TYPICAL PRESSURE DROP CURVES bar 22 20 PRESSURE DROP FEATURES AND BENEFITS — All external parts are zinc plated for longer life against elements. — All aluminum bodies are anodized. — All cartridges are 100% functionally tested. — Industrial common cavities. OPERATIONS This valve allows free flow in one direction and blocks flow in the opposite direction. Flow: 10 GPM (38 L/M) nominal. See performance chart. Internal...

Open the catalog to page 5

CHECK VALVE Direct Operated VALVE TYPE CHECK VALVE P PORT VALVE TYPE CHECK VALVE T PORT CHECK VALVE "P" PORT 1.52 CHECK VALVE "T" PORT ORDERING INFORMATION SELECT ONE C03MSV FUNCTION SIZE CHECK VALVE CONTROL PORT CODE LOCATION CRACKING PRESSURE SEALS CODE BODY MATERIAL CODE GUIDED POPPET Body Only Assembly (DP or DT): General Information: Aluminum (Part No.) — 552469K Ductile (Part No.) — 552550K • Cartridge cavity is C1020 with port flow pattern set up for cartridge flowing from port 1 to port 2. Includes Seal Retainer Plate, O-rings & Locating Pin. • For other crack pressure ratings, refer...

Open the catalog to page 6

CHECK VALVE Direct Operated FREE FLOW DESCRIPTION Utilizes a cartridge-type, guided poppet and hydraulic check valve as a blocking or load holding device during high-pressure applications. OPERATIONS This valve allows free flow in one direction and blocks flow in the opposite direction. FEATURES AND BENEFITS — All external parts are zinc plated for longer life against elements. — All aluminum bodies are anodized. — All cartridges are 100% functionally tested. — Industrial common cavities. TYPICAL PRESSURE DROP CURVES PRESSURE DROP SPECIFICATIONS Flow: 20 GPM (76 L/M) nominal. See performance...

Open the catalog to page 7

CHECK VALVE Direct Operated FREE FLOW ORDERING INFORMATION SELECT ONE C05MSV — FUNCTION SIZE CHECK VALVE CONTROL PORT CODE LOCATION CRACKING PRESSURE SEALS CODE BODY MATERIAL CODE Body Only Assembly: Aluminum (Part No.) — 552476K Ductile (Part No.) — 552552K General Information: • Cartridge cavity is C1020 with port flow pattern set up for cartridge flowing from port 1 to port 2. Includes O-rings & Locating Pin. • For other crack pressure ratings, refer to CCVFP-10 cartridges in Cartridge Catalog. TYPICAL ORDERING CODE:

Open the catalog to page 8

CHECK VALVE Pilot Operated FREE FLOW DESCRIPTION Utilizes a cartridge-type, guided poppet, and hydraulic pilot operated check valve as a blocking or loadholding device for high pressure applications. TYPICAL PRESSURE DROP CURVES PRESSURE DROP FLOW PATH ∆P CURVES P-P T-T CODE C03MSV-PA C03MSV-PB C03MSV-PC OPERATIONS This valve allows free flow from the work port to the outlet port and blocks flow in the opposite direction. Free flow will be allowed from the outlet port to the work port when at least one-third of the load induced pressure is sensed in the opposing work port. FEATURES & BENEFITS...

Open the catalog to page 9

CHECK VALVE Pilot Operated VALVE TYPE CHECK VALVE VALVE TYPE CHECK VALVE VALVE TYPE CHECK VALVE

Open the catalog to page 10

CHECK VALVE Pilot Operated ORDERING INFORMATION CONTROL PORT CODE LOCATION CRACKING PRESSURE SEALS NFPA MODULAR STACK BODY MATERIAL CHECK VALVE Body Only Assembly: General Information: Code A Control Port: Aluminum (Part No.) — 552497K Ductile (Part No.) — 552557K • Cartridge cavity is C1025 with flow pattern set up for cartridges flowing from port 1 to port 2, with port 3 as the pilot signal. Code B Control Port: Aluminum (Part No.) — 552474K Ductile (Part No.) — 552558K • For other crack pressure ratings refer to CPOCI-10 cartridges in the Cartridge Catalog. Code A & B Control Port: Aluminum...

Open the catalog to page 11

CHECK VALVE Pilot Operated FREE FLOW DESCRIPTION Utilizes a cartridge-type, guided poppet, hydraulic pilot operated check valve as a blocking or load-holding device for high pressure applications. OPERATIONS This valve allows free flow from the work port to the outlet port and blocks flow in the opposite direction. Free flow will be allowed from the outlet port to the valve work port when at least one-third of the load induced pressure is sensed in the opposing work port. FEATURES & BENEFITS TYPICAL PRESSURE DROP CURVES PRESSURE DROP — Low friction seal on the pilot piston. — Separate heavy spring...

Open the catalog to page 12

CHECK VALVE Pilot Operated DIMENSIONS C05MSV-PA 7.68 1.09 FREE FLOW P T B VALVE TYPE PILOT OPERATED CHECK VALVE A PORT FREE FLOW FREE FLOW P T B VALVE TYPE PILOT OPERATED CHECK VALVE B PORT P T B VALVE TYPE PILOT OPERATED CHECK VALVE A & B PORT

Open the catalog to page 13

CHECK VALVE Pilot Operated ORDERING INFORMATION SELECT ONE CONTROL PORT CODE LOCATION CRACKING PRESSURE SEALS NFPA MODULAR BODY MATERIAL CODE STACK VALVE CHECK VALVE Body Only Assembly: General Information: Code A, B, C Control Port: Aluminum (Part No.) — 552473K Ductile (Part No.) — 552553K • Cartridge cavity is C1225 with flow pattern set up for cartridge flowing port 1 to port 2, with port 3 as the pilot signal. Includes O-rings & Locating Pin. • For other crack pressure ratings refer to CPOCI-12 cartridges in the Cartridge Catalog. NOTE: Cavity plug required for Code A & B. TYPICAL ORDERING...

Open the catalog to page 14
