L-Shaped Catalog

Product catalog summary

Overview
L-Shaped Hydraulic Power Units are engineered for industrial applications that demand high fluid volume and flow rate. They feature flooded suction inlets to minimize pump wear by eliminating the need to lift hydraulic fluid. These units are suitable for door panel hemming machines, machine tools, chassis lift systems, and brick making systems.

Features
- Equipped with TEFC or ODP C-Face Electric Motor
- Includes Return Coupling with Reservoir Downpipe and Anti-Siphon Holes
- Strainer designed to handle 2-3 times the pump's maximum flow with minimal pressure drop
- Features Pressure Compensated Variable Volume Continental Vane or Axial Piston Pump
- Floor Mounting Holes for stability
- Flexible Drive Couplings and Pump/Motor Adapter
- Removable Top Plate with Neoprene Channel Gasket
- Electric Motor Junction Box
- Oil Level/Temperature Indicator with Glass Tube
- Coolant Resistant Vinyl Blue Paint
- Machine Identification and Warning Tags
- Lifting Holes for easy transport
- SAE O-Ring Plumbing
- Combination Filter/Air Breather (10 Micron)
- Full Ported Ball Valve

Specifications
- Capacities range from 10 to 200 gallons
- Various motor frame sizes and dimensions provided
- General specifications include reservoir capacity, surface area for heat transfer, heat dissipation, basic weight, usable gallons, and pump data
- Pump data includes flow range, pressure range, and power range

Ordering and Model Codes
Model codes are available for different configurations, including reservoir size, motor specifications, oil type, pressure gauge, valves, and additional components like flow meters and heat exchangers.

Applications
These power units are ideal for high production industrial applications due to their robust design and efficient operation.

General Specifications
LR20: Reservoir Capacity: 80 Gal. (75.7 liters), Surface Area for Heat Transfer: 14.57 sq. ft. (1.35 m²), Basic Weight: 188 lbs. (148.8 kg), Usable Gallons: 18.65 Gal. (70.8 liters), Flow Range: Up to 6 gpm (22.7 lpm), Pressure Range: Up to 1500 psi (103 bar), Power Range: Up to 20 HP (14.9 kW)
LR30: Reservoir Capacity: 80 Gal. (113.5 liters), Surface Area for Heat Transfer: 17.47 sq. ft. (1.62 m²), Basic Weight: 160 lbs. (161.0 kg), Usable Gallons: 5.19 Gal. (19.6 liters), Flow Range: Up to 10 gpm (37.8 lpm), Pressure Range: Up to 3000 psi (207 bar), Power Range: Up to 20 HP (14.9 kW)
LR45: Reservoir Capacity: 45 Gal. (170.3 liters), Surface Area for Heat Transfer: 21.86 sq. ft. (2.03 m²), Basic Weight: 445 lbs. (196.9 kg), Usable Gallons: 7.89 Gal. (29.6 liters), Flow Range: Up to 10 gpm (37.8 lpm), Pressure Range: Up to 3000 psi (207 bar), Power Range: Up to 20 HP (14.9 kW)

Dimension Drawings
Dimensions are provided for various motor frames with specific measurements in inches and millimeters. Detailed schematics for L-shaped power units with different vane and piston pumps are included.

Key Features
- Multiple reservoir capacities and configurations.
- Detailed pump data with flow, pressure, and power ranges.
- Optional components like pressure gauges and return filters.
- Comprehensive dimension drawings for installation and setup.

Specifications
- The document outlines various components and their specifications for hydraulic systems, including ball valves, flow meters, level/temperature switches, pressure switches, temperature switches, and tank heaters. The rated pressure for the ball valve is 6000 psi (414 Bar).

Filters
- Different types of filters are specified, including return filters and pressure filters with varying flow rates. All filters have a 10-micron element with an indicator, which can be visual or electrical.

Heat Exchangers
- The document lists water-to-oil and air-to-oil coolers for different applications such as case drain and system return, some with bypass options. Water modulating valves and water "y" strainers are also included with specific flow rates.

Power Units
- L-shaped power units with capacities ranging from 10 to 100 gallons are mentioned. The document notes that specifications and appearance are subject to change as products are continually improved.

Contact Information
- Continental Hydraulics Division, located in Savage, MN, USA, provides contact details including phone and fax numbers, and a website for further information.

Catalog excerpts

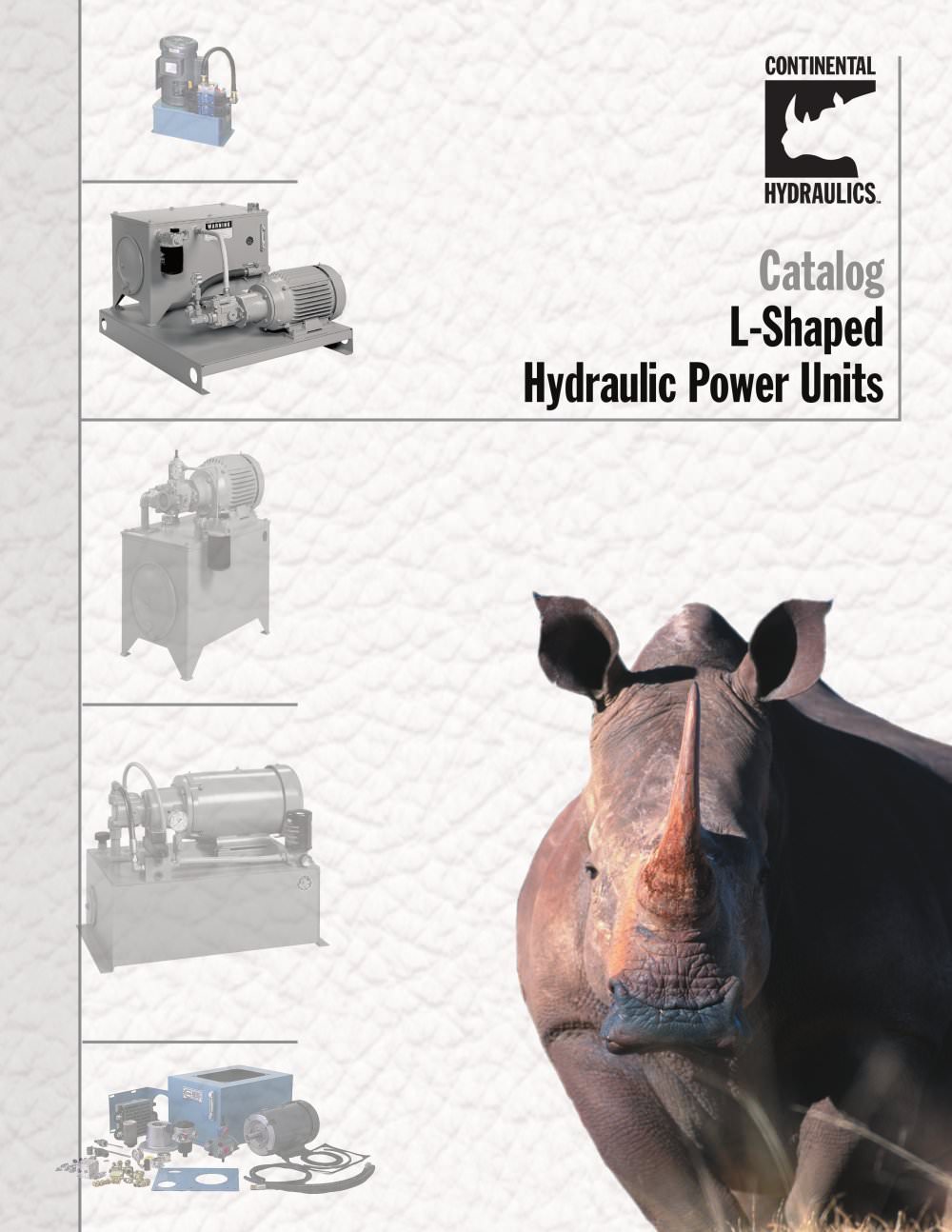

CatalogL-ShapedHydraulic Power Units >

Open the catalog to page 1

Coolant ResistantVinyl Blue Paint TEFC or ODP C-FaceElectric Motor Return Coupling WithReservoir Downpipeand Anti-Siphon HolesQty. 3Strainer Sized to Pass2-3 Times the Pump's Maximum Flow @ Minimum Pressure Drop Pump Choices:Pressure CompensatedVariable Volume ContinentalVane or Axial Piston PumpWith Start-Up information Floor MountingHoles Qty. 4 Flexible Drive Couplingsand Pump/Motor Adapter Inlet Plumbing Removable Top Plate(1/4" HRPO 1020 Steel)Neoprene Channel Gasket Keeps Airborne Particles Out Electric MotorJunction Box 3/4" NPT MagneticDrain Plug Oil Level/TemperatureIndicator With Glass...

Open the catalog to page 4

tr.row {} td.cell {} div.block {} div.paragraph {}

Open the catalog to page 6

OptionalReturnFilter Flow Range Up to 10 gpm (37.8 lpm) Pressure Range Up to 2000 psi (138 bar) Power Range Up to 10 HP (7.5 kW) Pump Data* > 10 Gallons (37.8 Liters)1"CleanoutCover1/2" NPT Return1"3/8"1" Optional Gaugeand Snubber 3/4" NPT Drain 1" NPT Spare ReturnWith Downpipe1" NPTSAE-12 Reservoir Capacity 10 Gal. (37.8 liters)Surface Area For Heat Transfer 9.87 sq. ft. (9169.2 cm) Heat Dissipation Sq. Ft. of Vertical Steel x ҢȆ T / 1000Basic Weight (Less Oil, Pump, and Motor) 215 lbs. (97.5 kg) Usable Gallons 2.05 Gal. (7.8 liters) Gallons Per Inch Rise .613 Gal. (2.3 liters) Capacity, Full...

Open the catalog to page 7

tr.row {} td.cell {} div.block {} div.paragraph {}

Open the catalog to page 8

OptionalReturnFilter Flow Range Up to 8 gpm (30.3 lpm) Pressure Range Up to 3000 psi (207 bar) Power Range Up to 20 HP (14.9 kW) Pump Data* > 10 Gallons (37.8 Liters)1"CleanoutCover1/2" NPT Return1"3/8"1/2"1"3/4" NPT Drain 1" NPT Spare ReturnWith Downpipe 1" NPTSAE-12 Reservoir Capacity 10 Gal. (37.8 liters)Surface Area For Heat Transfer 9.87 sq. ft. (9169.2 cm) Heat Dissipation Sq. Ft. of Vertical Steel x ҢȆ T / 1000Basic Weight (Less Oil, Pump, and Motor) 230 lbs. (104.3 kg) Usable Gallons 2.05 Gal. (7.8 liters) Gallons Per Inch Rise .613 Gal. (2.3 liters) Capacity, Full to Top Plate 13.41...

Open the catalog to page 9

OptionalReturnFilter Flow Range Up to 6 gpm (22.7 lpm) Pressure Range Up to 3500 psi (241 bar) Power Range Up to 15 HP (11.2 kW) Pump Data* > 10 Gallons (37.8 Liters)1"CleanoutCover1/2" NPT Return1"1/2"1"3/4" NPT Drain 1" NPT Spare ReturnWith Downpipe 1" NPTSAE-12 Reservoir Capacity 10 Gal. (37.8 liters)Surface Area For Heat Transfer 9.87 sq. ft. (9169.2 cm) Heat Dissipation Sq. Ft. of Vertical Steel x ҢȆ T / 1000Basic Weight (Less Oil, Pump, and Motor) 230 lbs. (104.3 kg) Usable Gallons 2.05 Gal. (7.8 liters) Gallons Per Inch Rise .613 Gal. (2.3 liters) Capacity, Full to Top Plate 13.41 Gal....

Open the catalog to page 11

OptionalReturnFilter Flow Range Up to 10 gpm (37.8 lpm) Pressure Range Up to 2000 psi (138 bar) Power Range Up to 10 HP (7.5 kW) Pump Data* > 20 Gallons (75.7 Liters)1"CleanoutCover1" NPT Return1"3/8"1" Optional Gaugeand Snubber 3/4" NPT Drain 1" NPT Spare ReturnWith Downpipe1" NPTSAE-12 Reservoir Capacity 20 Gal. (75.7 liters)Surface Area For Heat Transfer 14.57 sq. ft. (1.35 m) Heat Dissipation Sq. Ft. of Vertical Steel x ҢȆ T / 1000Basic Weight (Less Oil, Pump, and Motor) 312 lbs. (141.5 kg) Usable Gallons 3.65 Gal. (13.8 liters) Gallons Per Inch Rise 1.08 Gal. (4.1 liters) Capacity, Full...

Open the catalog to page 13

OptionalReturnFilter Flow Range Up to 8 gpm (30.3 lpm) Pressure Range Up to 3000 psi (207 bar) Power Range Up to 20 HP (14.9 kW) Pump Data* > 20 Gallons (75.7 Liters)1"CleanoutCover1" NPT Return1"3/8"1/2"1"3/4" NPT Drain 1" NPT Spare ReturnWith Downpipe 1" NPTSAE-12 Reservoir Capacity 20 Gal. (75.7 liters)Surface Area For Heat Transfer 14.57 sq. ft. (1.35 m) Heat Dissipation Sq. Ft. of Vertical Steel x ҢȆ T / 1000Basic Weight (Less Oil, Pump, and Motor) 328 lbs. (148.8 kg) Usable Gallons 3.65 Gal. (13.8 liters) Gallons Per Inch Rise 1.08 Gal. (4.1 liters) Capacity, Full to Top Plate 23.70 Gal....

Open the catalog to page 15

OptionalReturnFilter Flow Range Up to 6 gpm (22.7 lpm) Pressure Range Up to 3500 psi (241 bar) Power Range Up to 20 HP (14.9 kW) Pump Data* > 20 Gallons (75.7 Liters)1"CleanoutCover1" NPT Return1"1/2"1"3/4" NPT Drain 1" NPT Spare ReturnWith Downpipe 1" NPTSAE-12 Reservoir Capacity 20 Gal. (75.7 liters)Surface Area For Heat Transfer 14.57 sq. ft. (1.35 m) Heat Dissipation Sq. Ft. of Vertical Steel x ҢȆ T / 1000Basic Weight (Less Oil, Pump, and Motor) 328 lbs. (148.8 kg) Usable Gallons 3.65 Gal. (13.8 liters) Gallons Per Inch Rise 1.08 Gal. (4.1 liters) Capacity, Full to Top Plate 23.70 Gal. (89.7...

Open the catalog to page 17

OptionalReturnFilter Flow Range Up to 10 gpm (37.8 lpm) Pressure Range Up to 2000 psi (138 bar) Power Range Up to 10 HP (7.5 kW) Pump Data* > 30 Gallons (113.5 Liters)1-1/4"CleanoutCover1-1/2" NPT Return1"3/8"1-1/4" Optional Gaugeand Snubber 3/4" NPT Drain 1-1/4" NPT Spare ReturnWith Downpipe1" NPTSAE-12 Reservoir Capacity 30 Gal. (113.5 liters)Surface Area For Heat Transfer 17.47 sq. ft. (1.63 m) Heat Dissipation Sq. Ft. of Vertical Steel x ҢȆ T / 1000Basic Weight (Less Oil, Pump, and Motor) 330 lbs. (149.7 kg) Usable Gallons 5.19 Gal. (19.6 liters) Gallons Per Inch Rise 1.54 Gal. (5.8 liters)...

Open the catalog to page 19

OptionalReturnFilter Flow Range Up to 30 gpm (113.5 lpm) Pressure Range Up to 2000 psi (138 bar) Power Range Up to 30 HP (22.4 kW) Pump Data* > 30 Gallons (113.5 Liters)1-1/4"CleanoutCover1-1/2" NPT Return1-1/2"1/2"1-1/4" Optional Gaugeand Snubber 3/4" NPT Drain 1-1/4" NPT Spare ReturnWith Downpipe1-1/4" NPTSAE-16 Reservoir Capacity 30 Gal. (113.5 liters)Surface Area For Heat Transfer 17.47 sq. ft. (1.63 m) Heat Dissipation Sq. Ft. of Vertical Steel x ҢȆ T / 1000Basic Weight (Less Oil, Pump, and Motor) 355 lbs. (161.0 kg) Usable Gallons 5.19 Gal. (19.6 liters) Gallons Per Inch Rise 1.54 Gal....

Open the catalog to page 21

OptionalReturnFilter Flow Range Up to 8 gpm (30.3 lpm) Pressure Range Up to 3000 psi (207 bar) Power Range Up to 20 HP (14.9 kW) Pump Data* > 30 Gallons (113.5 Liters)1-1/4"CleanoutCover1-1/2" NPT Return1"3/8"1/2"1-1/4"3/4" NPT Drain 1-1/4" NPT Spare ReturnWith Downpipe 1" NPTSAE-12 Reservoir Capacity 30 Gal. (113.5 liters)Surface Area For Heat Transfer 17.47 sq. ft. (1.63 m) Heat Dissipation Sq. Ft. of Vertical Steel x ҢȆ T / 1000Basic Weight (Less Oil, Pump, and Motor) 347 lbs. (157.4 kg) Usable Gallons 5.19 Gal. (19.6 liters) Gallons Per Inch Rise 1.54 Gal. (5.8 liters) Capacity, Full to Top...

Open the catalog to page 23
