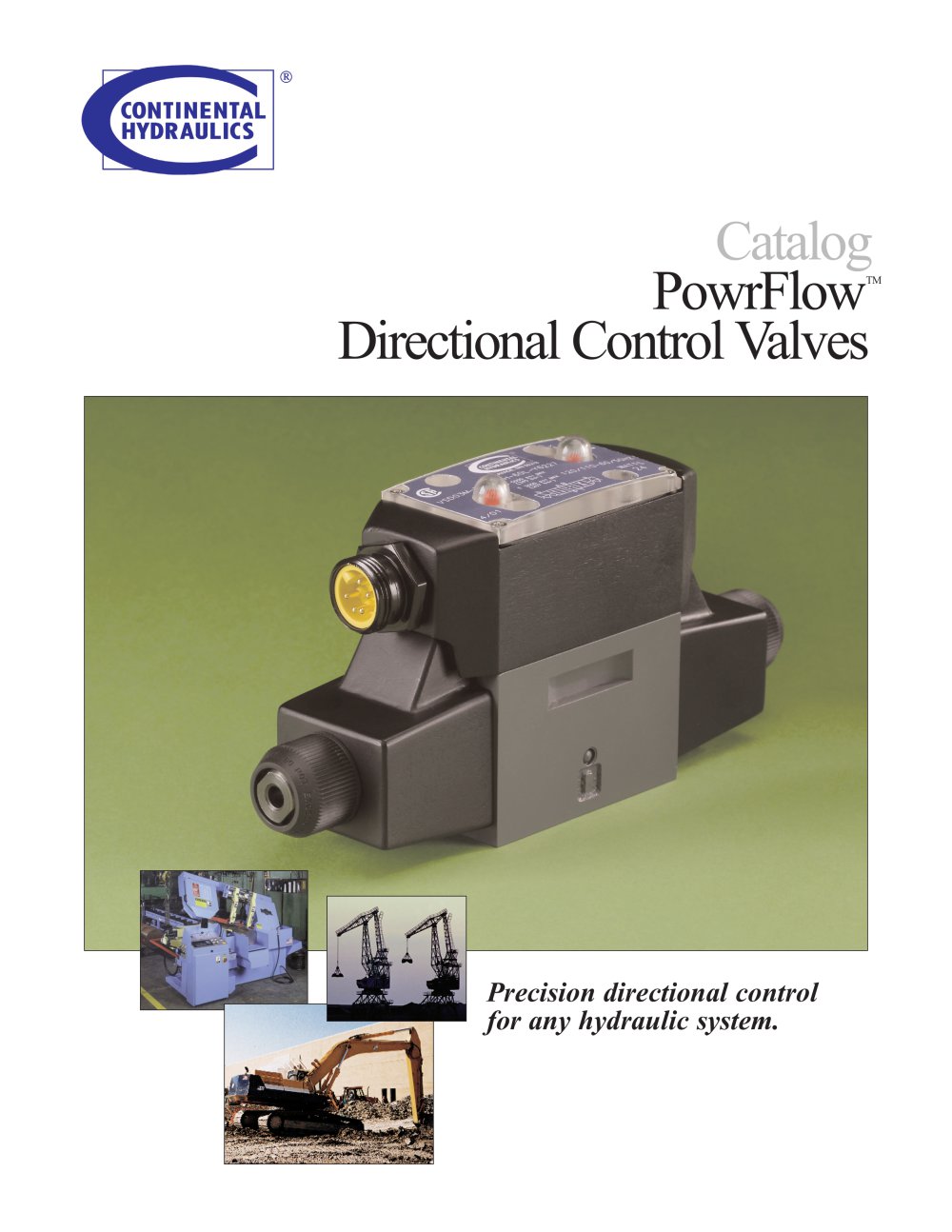

Catalog PowrFlow Directional Control Valves Precision directional control for any hydraulic system.

What Makes PowrFlow™ Directional Control Valves Your Best Buy? Value. PowrFlow™ Directional Control Valves are built to work harder, and last longer. They're 100% tested, and come with an exclusive 3 year warranty against defects For long term reliability, and optimum performance, PowrFlow™ Directional Control Valves are your best value. • 3000 PS I Tank Port Rating • Viton Seals Standard • 12 Interchangeable Spool Options PowrFlow ™ Directional Control Valves Terminal Block Connection Reduces time spent on wiring Reduce heat build-up, so coils last longer. Allows for easy service and replacement...

OPERATED SOLENOID ACTUATED, DIRECT OPERATED SOLENOID ACTUATED, DIRECT OPERATED SOLENOID ACTUATED, DIRECT OPERATED SOLENOID ACTUATED, DIRECT OPERATED SOLENOID ACTUATED, PILOT OPERATED SOLENOID ACTUATED, PILOT OPERATED LEVER ACTUATED, MANUALLY OPERATED LEVER ACTUATED, MANUALLY OPERATED AIR ACTUATED, DIRECT OPERATED AIR ACTUATED, DIRECT OPERATED AIR ACTUATED, PILOT OPERATED CAM ACTUATED, DIRECT OPERATED OPERATED SOLENOID ACTUATED, DIRECT OPERATED OPERATED SOLENOID ACTUATED, PILOT OPERATED HAZARDOUS DUTY DIRECTIONAL CONTROL VALVES MODEL SERIES VS5M VS12M VS50M DVS50M OPERATED SOLENOID ACTUATED, DIRECT...

TERMINOLOGY AND GENERAL SPECIFICATIONS FEATURES SOLENOID ACTUATED • CSA certified (D03, D05, D08 sizes). • CE approved (D03, D05, D0 8 and D10 sizes). • Wet armature solenoids: — 2-pin plug-in coils or DIN (D03, D05, D10 sizes). — Lead wires or DIN connectors (D05). — Solenoid failures greatly reduced. — Standard and low amp coils available. — High temperature elements are isolated from direct human contact. — No oil leakage into electrical cavity. — Fast and easy solenoid replacement. — Continuous duty-rated coils. • No dynamic seals eliminate external oil leakages. • Electrical quick disconnects...

TERMINOLOGY AND GENERAL SPECIFICATIONS FLUID TEMPERATURE RANGE Fluid temperature up to 200° F. will not appreciably affect valve performance, however, from a safety standpoint, temperatures above 130° F. are not recommended. RECOMMENDED OPERATING VISCOSITY 80 to 350 SUS. FLUID OPERATING VISCOSITY Acceptable start-up viscosity to 1500 SUS. Minimum viscosity to 30 SUS. FILTRATION ISO 18/16/13. MOUNTING POSITION Optional; horizontal preferred. NFPA FLOW PATH/ACTUATING PATTERN SOLENOID, AIR AND OIL ACTUATED: Actuating operator (a) — connects flow to cylinder port A. Actuating operator (b) — connects...

DIRECTIONAL CONTROL VALVES SOLENOID ACTUATED, DIRECT OPERATED NFPA SIZE D03 TYPICAL PERFORMANCE SPECIFICATIONS Performance is measured on a four-way circuit (full circuit). Performance may be reduced from that shown if a three-way circuit (half circuit) is used, i.e. A or B port plugged. MAXIMUM FLOW RATE - (up to) As a valve spool shifts, the spool lands cross over the valve body ports. This can produce instantaneous high flow rates. MAXIMUM OPERATING PRESSURE MAXIMUM CYCLE RATE MOUNTING SURFACE WEIGHT Single Actuator Double Actuator SPOOL CODES AVAILABLE * 2000 psi (138 bar) maximum on valves...

DIRECTIONAL CONTROL VALVES SOLENOID ACTUATED, DIRECT OPERATED TYPICAL PRESSURE DROP 11 PRESSURE DROP (psid) FLOW PATH ∆P CURVES SPOOL TYPE A A Code 1&2 B B Code 1&2 E F F Code 68 F1 G H J K L N Q Subplate FLOW CURVE NUMBER SPOOL SHIFTED SPOOL CENTERED B to T P to B A to T P to A or B A or B to T P to T

DIRECTIONAL CONTROL VALVES SOLENOID ACTUATED, DIRECT OPERATED SPOOL DESCRIPTION

DIRECTIONAL CONTROL VALVES SOLENOID ACTUATED, DIRECT OPERATED MAXIMUM FLOW ALL SOLENOIDS EXCEPT CODE 39 AND 68 FUNCTION A B F F1 G L E-K J&N H&Q CODE AC DC AC DC AC DC AC DC AC DC AC DC AC DC AC DC AC DC 1 (lpm) (70 bar) @ gpm 1000 psi NOTE: Test voltage was 90% of rated voltage unless specified otherwise. Performance is measured on a four-way curcuit (full circuit). Performance may be reduced from that shown if a three-way circuit (half circuit) is used, i.e. A or B port plugged. N/A Not available in this configuration. * 100% rated voltage required. † 3500 psi maximum and 100% voltage required....

DIRECTIONAL CONTROL VALVES SOLENOID ACTUATED, DIRECT OPERATED TYPICAL ELECTRICAL CHARACTERISTICS VOLTAGE & VOLTAGE FREQUENCY LIMITS SOLENOID CODE 33L, 60L 34L, 61L 39L, 68L 42L, 70L 44L, 75L INRUSH CURRENT (AMPS) HOLDING CURRENT HOLDING CURRENT MIN. VOLT. HOLDING POWER WRENCH ACCESS TO MOUNTING BOLTS THRU TOP OF VALVE ASSY. TYP ALL ASSY'S NFPA D03 SIZE (Formerly D01) 3.14 2.06 1.03 1.70 AC 2.31 DC FOR COIL REMOVAL CLEARANCE #10-24 UNC X 1.00" SOCKET HEAD CAP SCREW 4-5 LBS-FT TORQUE 3.00 (F) REF MANUAL ACTUATOR PIN BOTH ENDS

DIRECTIONAL CONTROL VALVES SOLENOID ACTUATED, DIRECT OPERATED #10-24 UNC X 1.00" SOC. HD. CAP SCREW 4-5 LBS-FT TORQUE 24-26 LBS-FT TORQUE CORE 15 LBS-FT MAX.TORQUE 3.00 REF. 5.51 AC SOLENOID 6.11 DC SOLENOID 5.77 AC SOLENOID 6.37 DC SOLENOID

DIRECTIONAL CONTROL VALVES SOLENOID ACTUATED, DIRECT OPERATED ORDERING INFORMATION SELECT ONE FUNCTION CODE ELECTRICAL OPTIONS REFER TO PAGE 6 FOR SPOOL AVAILABILITY Single operator • 2 position Spring offset b Double operator • 2 position Detented (No spring) A B CODE VITON SEALS STANDARD Double operator • 3 position Spring centered b Single operator • 2 position Spring centered b MECHANICAL OPTIONS CODE DESCRIPTION OMIT Single operator • 2 position Spring offset * Operator identification reversed on “L” spool: • VSD03M-3L: “A” solenoid on “A” port end, “B” solenoid on “B” port end. • VSD03M-5L:...

DIRECTIONAL CONTROL VALVES SOLENOID ACTUATED, DIRECT OPERATED COMPETITIVE CROSSOVER GUIDE This Crossover Guide compares performance and specifications of solenoid operated NFPA D03 mounting directional control valves. The information in this guide is the most recent available, either from printed catalogs, or the internet. Items with the “”N/A” notation have no available information from either source. Specifications Model Series Maximum Pressure Maximum Tank Pressure Maximum Tank Pressure - Option Temperature Range (Degrees F.) Spools Available Maximum Flow Rate (gpm) Pressure Drop @ 10 gpm...
