Spring Clamp Ground Terminal Blocks

Product catalog summary

Specifications:

Type: CSCG2.5T Ground / Earth Terminal Blocks
Terminal Block Pitch: 5 mm
Dimensions: Height x Width: 36 x 58 mm
Stripping Length: 15 mm
Current Rating (PCTB): 24 A
Voltage Rating: 800 V with adjacent terminal
Rated Impulse Voltage/Pollution Degree: 8 KV / 3
Rated Connecting Capacity: 22-14 AWG
Insulation Material: Polyamide 66 / I
Comparative Tracking Index: Not specified

Connection Details:

Connection Possibility: Flexible Stranded, Rigid Solid
Type of Connection: 2 Spring clamp connection, grounding through alloy feet
Special Features: Alloy feet for low contact resistance and vibration-proof grounding

Approvals:

Other Approvals: Not specified

Accessories:

Mounting Rail: CA509/K5
Marking Tags: K Type
Screw Driver for Spring Clamp: 0.6 x 3.5 mm
End Plate: EPCSC2.5T

Additional Information:

These terminal blocks are green/yellow color-coded as per industry standards.

Catalog excerpts

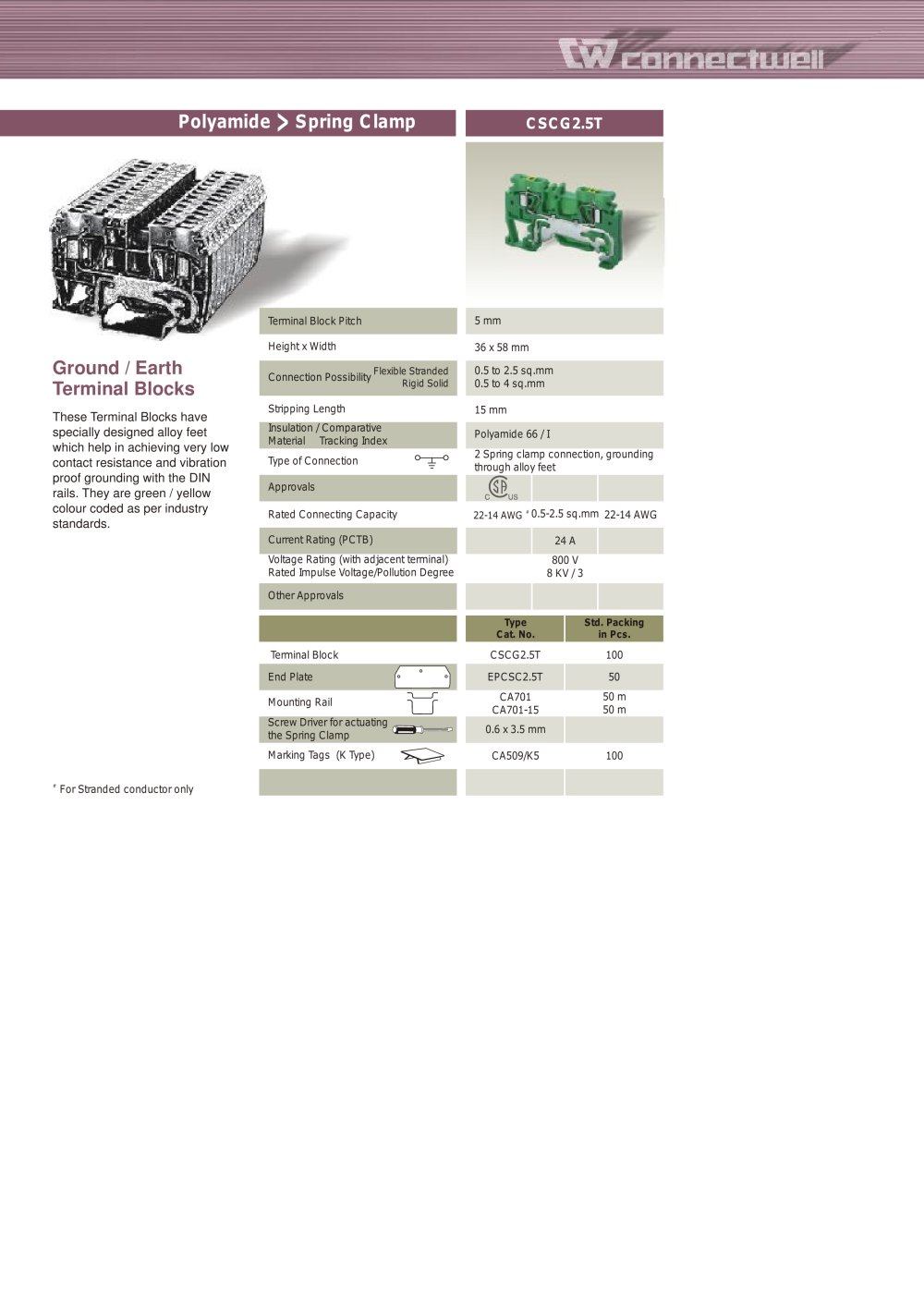

Terminal Block PitchHeight x WidthStripping Length Current Rating (PCTB)Approvals Connection PossibilityType of Connection 5 mm36 x 58 mm0.5 to 2.5 sq.mm0.5 to 4 sq.mmPolyamide 66 / I15 mm 24 A > Flexible StrandedRigid Solid Insulation / Comparative Material Tracking Index 2 Spring clamp connection, grounding through alloy feet Terminal BlockCSCG2.5T100Voltage Rating (with adjacent terminal)Rated Impulse Voltage/Pollution Degree800 V8 KV / 3Rated Connecting Capacity22-14 AWG > 22-14 AWG # 0.5-2.5 sq.mm Other Approvals > TypeCat. No.Std. Packingin Pcs. End Plate EPCSC2.5T50 Mounting Rail CA701CA701-1550 m50 m CA509/K5100Marking Tags (K Type)Screw Driver for actuating the Spring Clamp0.6 x 3.5 mm > # For Stranded conductor only >
