RJ45 Interface Modules

Product catalog summary

Overview: The document provides technical specifications and features of RJ45 Interface Modules, which are available for both DIN Rail and Panel mounting options. The modules are designed for ease of connection using standard screw connection terminal blocks and are housed in fire retardant PVC material.

Features:

Standard screw connection terminal blocks for easy connectivity.
Mounting options include DIN Rail and Panel mounting.
Fire retardant V0 grade PVC housing.
Capability for standard or cross-over connections within the same module.

General Data:

Dimensions: Width 88 mm, Height 65 mm, Length 30 mm.
RJ45 Connector Orientation: Available in both Vertical and Horizontal.
Operational Ambient Temperature: -20°C to 50°C.
Mounting Types: DIN32, DIN35, DIN35-15, and PANEL.
Housing Insulation Material: PVC / V0 Grade, Color: Green.

Discrete Connection Data:

Connection Type: Screw connection.
Conductor Cross Section Range: Stranded 0.5 - 2.5 sq. mm / 30 - 14 AWG, Solid 0.5 - 4 sq. mm / 30 - 12 AWG.
Screw Thread: M 3, Stripping Length: 8.3 mm, Torque: 4.5 lb-in / 0.5 Nm.

RJ45 Connector Data:

Voltage Rating: 125 VAC RMS.
Current Rating: 1.5 AMP.
Contact Resistance: 30 milli ohms max.
Housing Material: Glass filled Polyester UL94V-0, Color: Black.
Contact Material: Phosphor Bronze with Gold Flash Plating over Nickel.
Shield Material: 0.23 thickness brass with nickel plating.

Ordering Data:

Vertical RJ45 Connector Orientation: IMRJ45/V.
Horizontal RJ45 Connector Orientation: IMRJ45/H.

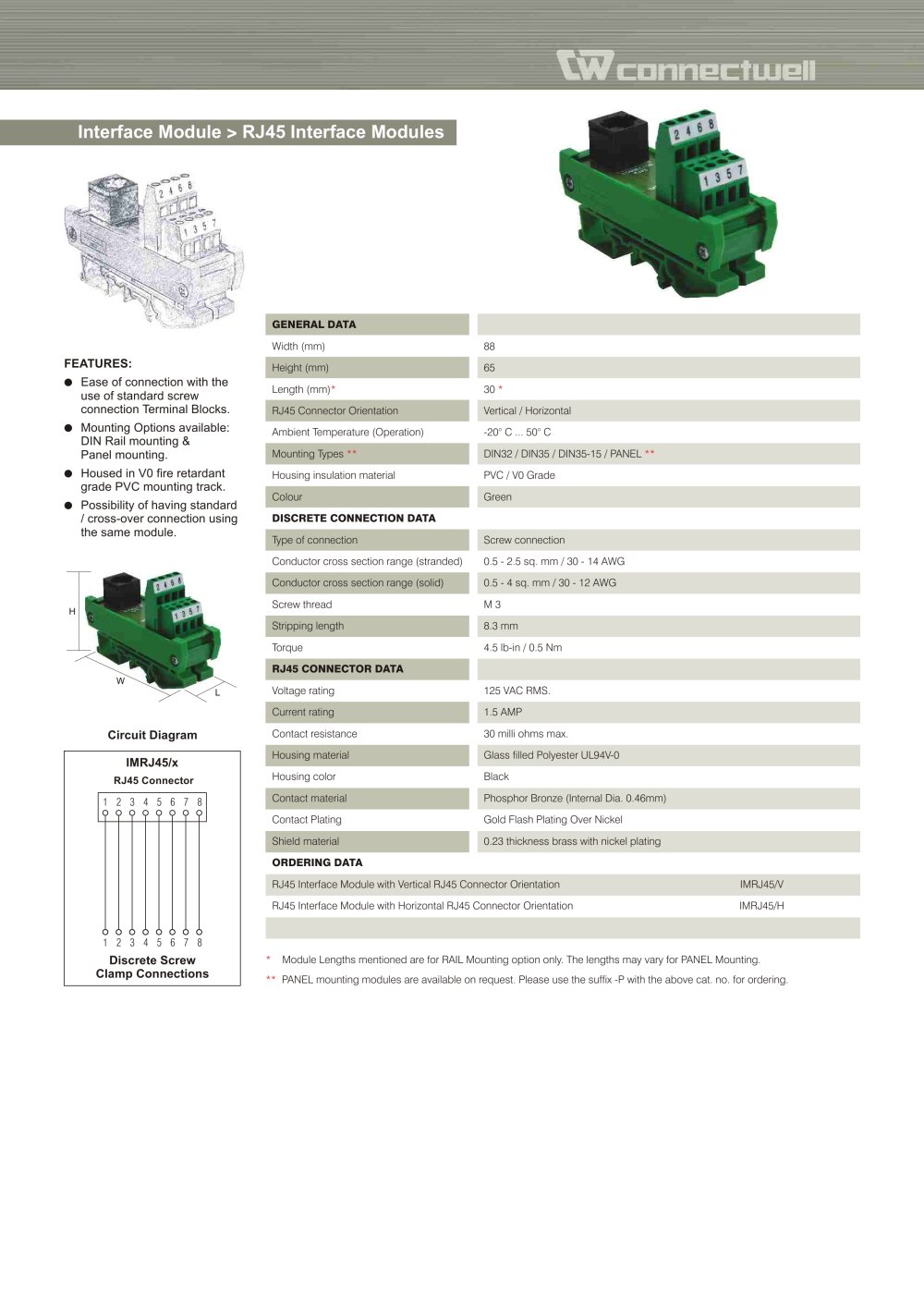

Catalog excerpts

GENERAL DATA Width (mm)88Height (mm)65Length (mm)30 RJ45 Connector OrientationVertical / Horizontal Ambient Temperature (Operation) -20 C ... 50а C Mounting Types DIN32 / DIN35 / DIN35-15 / PANEL Housing insulation material PVC / V0 GradeColourGreen > DISCRETE CONNECTION DATA Type of connection Screw connectionConductor cross section range (stranded)0.5 - 2.5 sq. mm / 30 - 14 AWG Conductor cross section range (solid)0.5 - 4 sq. mm / 30 - 12 AWGScrew thread M 3Stripping length 8.3 mm Torque4.5 lb-in / 0.5 Nm RJ45 CONNECTOR DATA ● > ORDERING DATA Voltage rating125 VAC RMS.Current rating1.5 AMP Contact resistance30 milli ohms max.Housing materialGlass filled Polyester UL94V-0Housing colorBlack Contact materialPhosphor Bronze (Internal Dia. 0.46mm) Contact PlatingGold Flash Plating Over Nickel Shield material0.23 thickness brass with nickel plating RJ45 Interface Module with Vertical RJ45 Connector OrientationIMRJ45/VRJ45 Interface Module with Horizontal RJ45 Connector OrientationIMRJ45/H ****** ● > ** PANEL mounting modules are available on request. Please use the suffix -P with the above for ordering.cat. no. * Module Lengths mentioned are for RAIL Mounting option only. The lengths may vary for PANEL Mounting. >
