Rotary actuators
Rotary actuators
- Bore Sizes: HR 32/32, HR 40/70, HR 63/96
- Specific Stroke: Varies by model, e.g., HR 40/70 has a specific stroke of 0.61
- Specific Torque: Varies by model, e.g., HR 40/70 has a specific torque of 0.40
- Operating Pressure: 100 bar for all models
- Peak Pressure: 140 bar for all models
- Max Speed Rotation: Varies by model, e.g., HR 40/70 has a max speed of 14 rad/sec
- Weight: Varies by model, e.g., HR 40/70 weighs 12.5 kg
- Body: Main structure of the actuator
- Stroke Adjuster: Allows adjustment of stroke by +/-5°
- End Cap: Seals the end of the actuator
- Cushioning: Provides damping at the end of stroke
- Piston: Converts hydraulic pressure into mechanical motion
- Rack-Rail: Transmits motion from the piston
- Ball Bearing: Reduces friction in rotating parts
- Rotating Tightness: Ensures seal integrity during rotation
- Toothed Wheel: Engages with the rack-rail for motion transfer
- Closing Flange: Secures components in place
- Series: HR (Standard), MR (Magnetic)
- Seals: Options include Standard, Low Friction, Viton®, and HFC-fluid
- Angle of Rotation: Standard 180°, other angles available on request
- Sensors: Options include REED 24-110 V. AC/DC, PNP 24 V. DC (only for MR cylinders)
- Other features similar to CD and MD cylinders are available (refer to page 3).

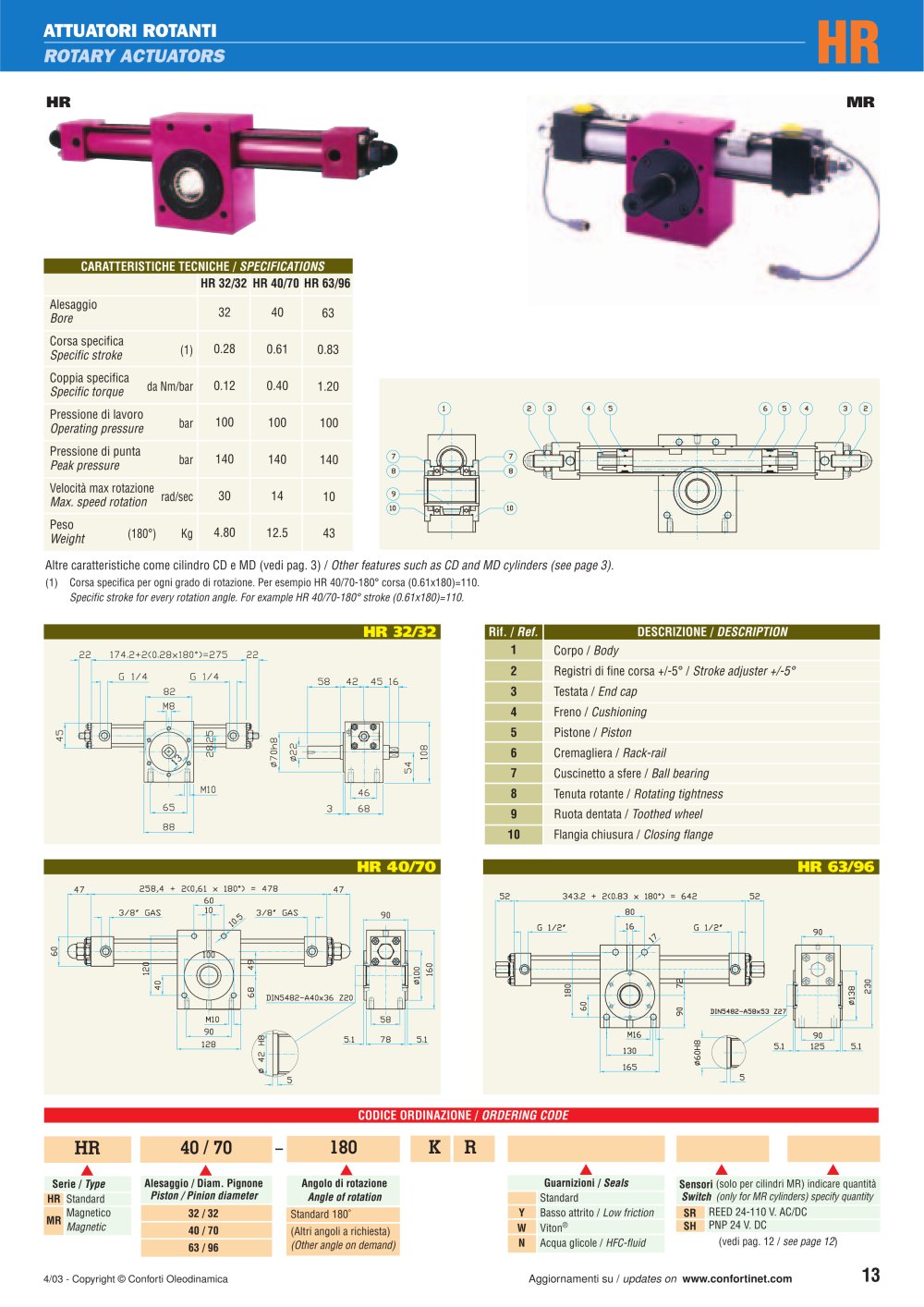

Catalog excerpts
CARATTERISTICHE TECNICHE / SPECIFICATIONS HR 32/32HR 40/70HR 63/96 Alesaggio Bore 320.280.12100140304.80 400.610.401001401412.5 630.83 1.201001401043 Corsa specifica Specific stroke (1)da Nm/barbarbarrad/sec(180) Kg Coppia specifica Specific torque Pressione di lavoro Operating pressure Pressione di punta Peak pressure VelocitР max rotazione Max. speed rotation Peso Weight Altre caratteristiche come cilindro CD e MD (vedi pag. 3) / Other features such as CD and MD cylinders (see page 3). > (1)Corsa specifica per ogni grado di rotazione. Per esempio HR 40/70-180corsa (0.61x180)=110. Specific stroke for every rotation angle. For example HR 40/70-180аstroke (0.61x180)=110. Rif. / Ref. DESCRIZIONE / DESCRIPTION 1234567 8910 Corpo / Body Registri di fine corsa+/-5/ Stroke adjuster +/-5а Testata / End cap Freno / Cushioning Pistone / Piston Cremagliera / Rack-rail Cuscinetto a sfere / Ball bearing Tenuta rotante / Rotatingtightness Ruota dentata / Toothedwheel Flangia chiusura / Closing flange > CODICE ORDINAZIONE / ORDERING CODE > Serie / Type Alesaggio / Diam. Pignone Angolo di rotazione Guarnizioni / Seals Sensori (solo per cilindri MR) indicare quantit֠ HRMR StandardMagnetico Magnetic Piston / Pinion diameter Angle of rotation StandardBasso attrito / Switch (only for MRcylinders) specify quantity 32 / 3240 / 7063 / 96 Standard 180˚(Altri angoli a richiesta) YWN Low friction SRSH REED 24-110 V. AC/DCPNP 24 V. DC Viton (Other angle on demand) Acqua glicole / HFC-fluid (vedi pag. 12 / see page 12 ) 4/03 - Copyright ΩConforti Oleodinamica Aggiornamenti su / updates on www.confortinet.com
