Hydraulic short stroke cylinders

Product catalog summary
Overview: The document provides technical specifications and details for hydraulic short stroke cylinders, specifically the MU model, designed for industrial automation. These are double-acting cylinders with a robust and compact construction, featuring built-in proximity switches.
Specifications:
  • Max Pressure: 160 bar
  • Fluid Temperature Range: -20°C to +150°C for Viton® seals, -20°C to +80°C for standard seals
  • Stroke Lengths: Standard 20 mm and 50 mm, with other lengths available on request
  • Fluid Compatibility: Hydraulic mineral oil and phosphoric esters
  • Mounting Options: Front, rear, and lateral
Materials:
  • Wiper and Rod Seals: Nitrile rubber + PTFE
  • Guide Bushing: Bronze
  • Cylinder Body: Special light alloy
  • Rod: Chrome-plated steel
  • Piston: Steel
Magnetic Sensors:
  • Voltage: 24 V AC/DC
  • Max Current: 0.25 A
  • Protection Class: IP 67 EN60529
  • Temperature Range: -20°C to +80°C
  • Indication: LED

Correct usage involves ensuring voltage and current do not exceed specified values, and being aware of potential surges caused by capacitive loads or inductance.

Ordering Information: The document provides a detailed ordering code system for specifying cylinder type, seals, sensors, stroke length, and other features. Spare seals ordering information is also included.
Accessories: Various rod accessories and mounting brackets are available, with specific dimensions and types listed.
See more

Catalog excerpts

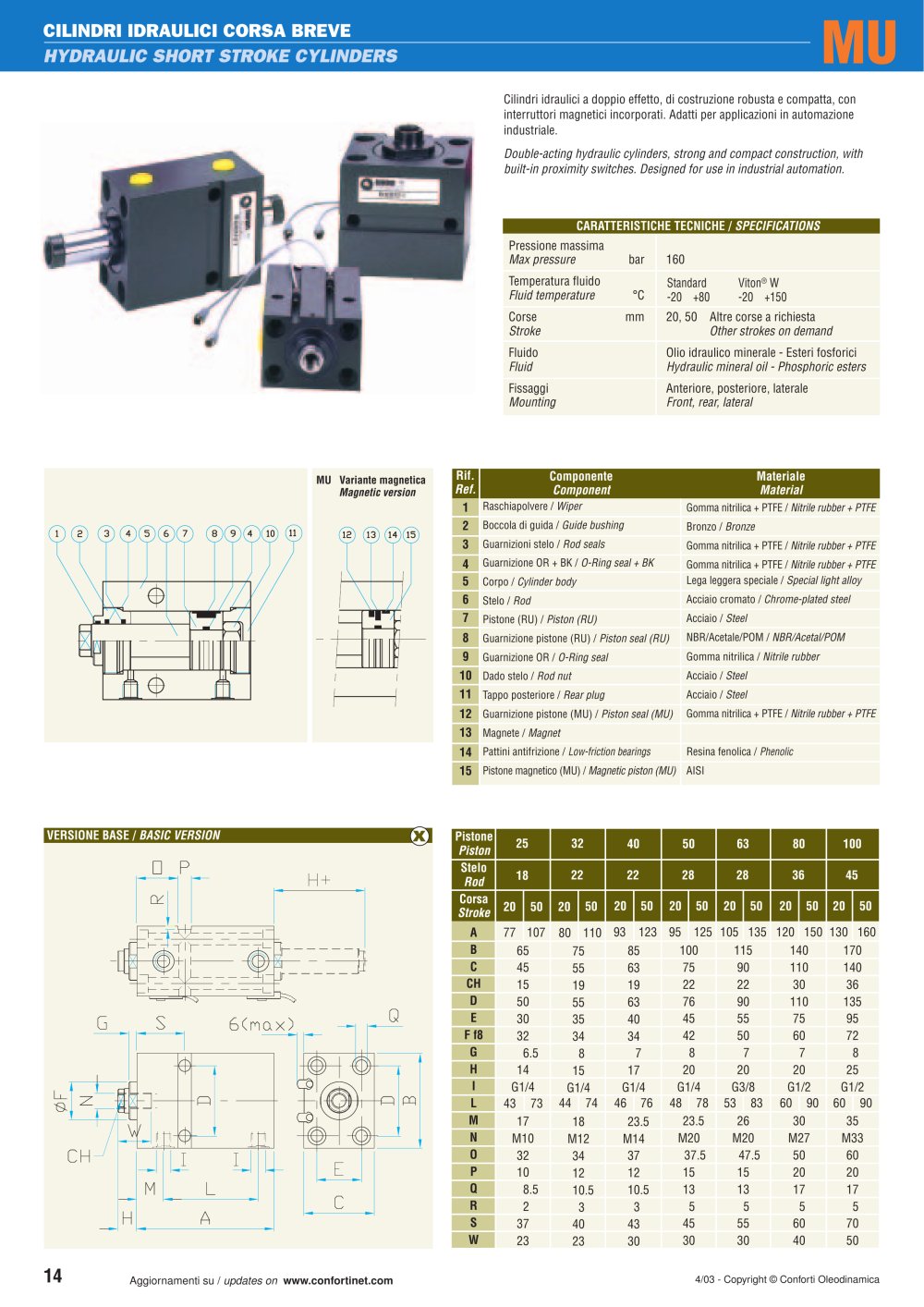

Hydraulic short stroke cylinders-2
