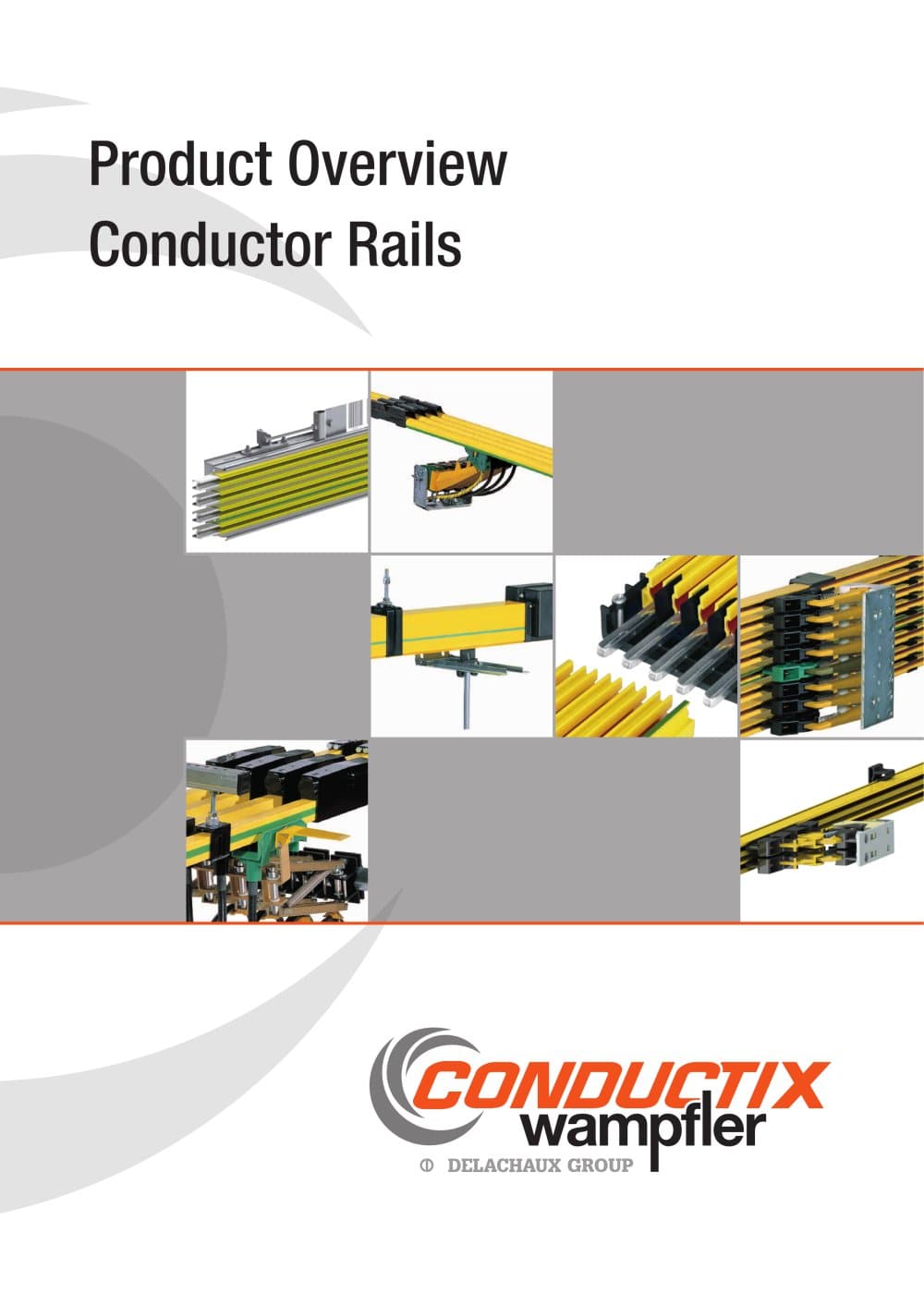

Product Overview Conductor Rails
20Pages

{{requestButtons}}

Catalog excerpts

Product Overview Conductor Rails - 1

Product Overview Conductor Rails

Open the catalog to page 1
Product Overview Conductor Rails - 2

The Simple Solution! Insulated conductor rails are one of the most widely used systems for the transmission of power and data. Conductor rail solutions from Conductix-Wampfler are in use in a variety of systems around the world. SingleFlexLine 0811 on an electrified monorail system in a brewery Whether on automotive production lines, in a variety of crane systems, in packing machines, in high-storage warehouses, in the infrastructure of airport terminals, or in amusement park rides – people count on Conductix-Wampfler conductor rails, and not without reason. These features of the product...

Open the catalog to page 2
Product Overview Conductor Rails - 3

Optimized Mounting Solutions ProShell: systematic efficiency on AS/RS ProShell is a modular, quick-assembly system that allows fast and secure integration of 0812 and 0831 conductor rails in the AS/RS aisles (on shelf uprights or floor mounting brackets). • Protects the conductor rail system on three sides • Keeps the rail system aligned, regardless of temperatures • Mounting distances up to 3200 mm • Secure and functional system interface between shelves and energy supply • Up to 7 poles, 400 A (with rail program 0812) • Slots for additional accessories, e.g. positiong systems, landmarks,...

Open the catalog to page 3
Product Overview Conductor Rails - 4

Conductix-Wampfler Conductor Rails 1. Conductor rail with insulating profile with contact guard, designed according to international standards 2. PE ground pole 3. Rail connector 4. End cap 5. Feed connector 6. Hanger clamp 7. Collector assembly optionally with protection against polarity errors for the safe, quick connection of units to terminate system ends and protect against contact for convention connection to the stationary power supply for safe transmission and compensation of movement tolerances in positive guide and long service life

Open the catalog to page 4
Product Overview Conductor Rails - 5

Conductix-Wampfler Conductor Rails Product Line Overview - No Limits! There are different product lines available to cover a variety of requirements. Modular in structure and flexible in use, we have the right solution for nearly any application. Single-pole conductor rail for preferably straight rail runs • Crane systems • Transport systems Multi-pole, compact conductor rail for straight rail runs indoors • High storage systems • Transfer cars • 3-4-5 poles Multi-pole, modular small-scale conductor rail system • Logistic shuttles • AS/RS for automatic small parts warehouses • 2 poles...

Open the catalog to page 5
Product Overview Conductor Rails - 6

Conductix-Wampfler Conductor Rails The safety of full insulation and integrated contact protection, along with optional PE polarity error protection "PEplus" Simple, precise installation with multipoled hanger clamps and bayonet connector technology Unlimited number of poles, even for complex applications Main applications: - Electrified monorail systems - Packaging machines - Temporary buildings - Ring rails / slip rings - Revolving stages - Small parts warehouses Simple radial layout due to uncomplicated bending of rails at the construction site Standard application data Nominal current...

Open the catalog to page 6
Product Overview Conductor Rails - 7

Conductix-Wampfler Conductor Rails High degree of safety due to contact protection and optional PE polarity error protection "PEplus" Fast installation using plug or screw connectors Compact, space-saving installation even in limited installation space, due to optimized phase distance of 12 mm or 14 mm Main applications: - Electrified monorail systems - Ring rails / slip rings - Specialized machines - Sorters and small parts warehouses Fast, modular extension with multi-pole combinations of hanger clamps (2, 4, 6, 8, and 10 poles) Flexible use thanks to simple adaptation to the load-bearing...

Open the catalog to page 7
Product Overview Conductor Rails - 8

Conductix-Wampfler Conductor Rails

Open the catalog to page 8
Product Overview Conductor Rails - 9

Conductix-Wampfler Conductor Rails High availability even in harsh ambient conditions, with a robust design and a variety of conducting materials Safety due to finger guard and high-quality insulation Simple, precise installation with single-pole and combinable multipole hanger clamps (3, 4, and 5 poles) Main applications: - Crane systems of medium load capacity - People movers - Specialized systems Unlimited number of poles, even for complex applications Curve capability using arc segments Flexible extension and optional positioning system Standard application data Nominal current range...

Open the catalog to page 9
Product Overview Conductor Rails - 10

Conductix-Wampfler Conductor Rails High reliability even in harsh environments due to a robust design, and availability of a variety of conductor materials Safety for people and machines due to insulation of the individual poles Simple, precise installation with single-pole and combinable multipole hanger clamps (3, 4, and 5 poles) Main applications: - Heavy-duty crane systems - Cable-driven STS crane carriage systems - People movers - Specialized systems Standard application data Nominal current range (100% duty cycle) Nominal voltage Rail length Outer dimensions (pole) Area of use Rail...

Open the catalog to page 10
Product Overview Conductor Rails - 11

Conductix-Wampfler Conductor Rails MultiLine Fast, cost-effective installation thanks to a multipole design and use of plug connectors Ideal layout due to availability in 3, 4, and 5-pole variants High degree of safety and mechanical rigidity due to massive shared insulators Low mass due to compact design and optimized phase distance Main applications: - High storage systems - Process and hall cranes - Specialized machines - Transfer cars Maintenance-friendly due to fast exchange of rail segments and simple cleaning of the compact profile Flexible extension and optional positioning system...

Open the catalog to page 11
Product Overview Conductor Rails - 12

Conductix-Wampfler Conductor Rails

Open the catalog to page 12
Product Overview Conductor Rails - 13

Conductix-Wampfler Conductor Rails Faster, easier mounting due to a more rigid rail profile and uses 50% less rail hangers than comparable systems Fewer individual parts reduce logistics and mounting costs Clip-on fastening and self-aligning connections reduce installation complexity Main applications: - Automated small parts warehouses - Shuttle systems Easily expandable in length and in number of poles Higher stability through two-pole build and hollow chamber structure Standard application data Nominal current range (100% duty cycle) Nominal voltage Rail length Outer dimensions Area of...
