THREE-PIECE VALVES

THREE-PIECE VALVES

Product catalog summary

Overview: The document introduces the new ASME B16.34 Class 600 three-piece valves by Apollo, designed for demanding industrial applications. These valves are fully rated in all sizes and manufactured in the USA, ensuring high performance and reliability.

Key Features:

Stem Bearing: Utilizes a proprietary PEEK-PTFE blend for enhanced strength and reduced friction.
Enclosed Bolting: Stainless steel bolts are enclosed to minimize corrosion and maintain alignment.
Stem Packing: Standard multi-piece V-ring PTFE packing, with graphite packing available for fire-tested models.
Seat Design: Cantilever design reduces operational effort and maintains stability.
Multi-Seal Seats: Standard unfilled FDA-compliant enhanced PTFE seat, with UHMWPE as an option.
Body Connections: Available in NPT, buttweld, and socket weld ends.
Body Seals: Standard RPTFE spiral wound seals for extended service life, with optional graphite seals.

Product Range: Apollo offers a comprehensive range of Class 600 valves in various sizes, body materials, and configurations, suitable for diverse industrial applications. These include special corrosion-resistant alloys and are fully compliant with Class 600 standards.

Advantages:

Adjustable gland plate for easy adjustments without removing the handle or actuator.
Standard spiral wound RPTFE body seals for durability.
Available in five different body materials and seven sizes.

Options and Configurations: The valves come with various options such as locking mechanisms, stem extensions, side vented balls, and different seat materials. They are also available with features like fire-tested graphite packing, grounded ball and stem, and extended bonnets.

Technical Specifications: Detailed dimensions and configurations are provided for each valve size, ensuring precise fit and compatibility with existing systems.

Warranty and Liability: Conbraco Industries offers a two-year warranty against defects in workmanship or materials, with limitations on liability for special or consequential damages.

Contact Information: For further inquiries, customers can contact Conbraco Industries at their provided phone number or visit their website.

Catalog excerpts

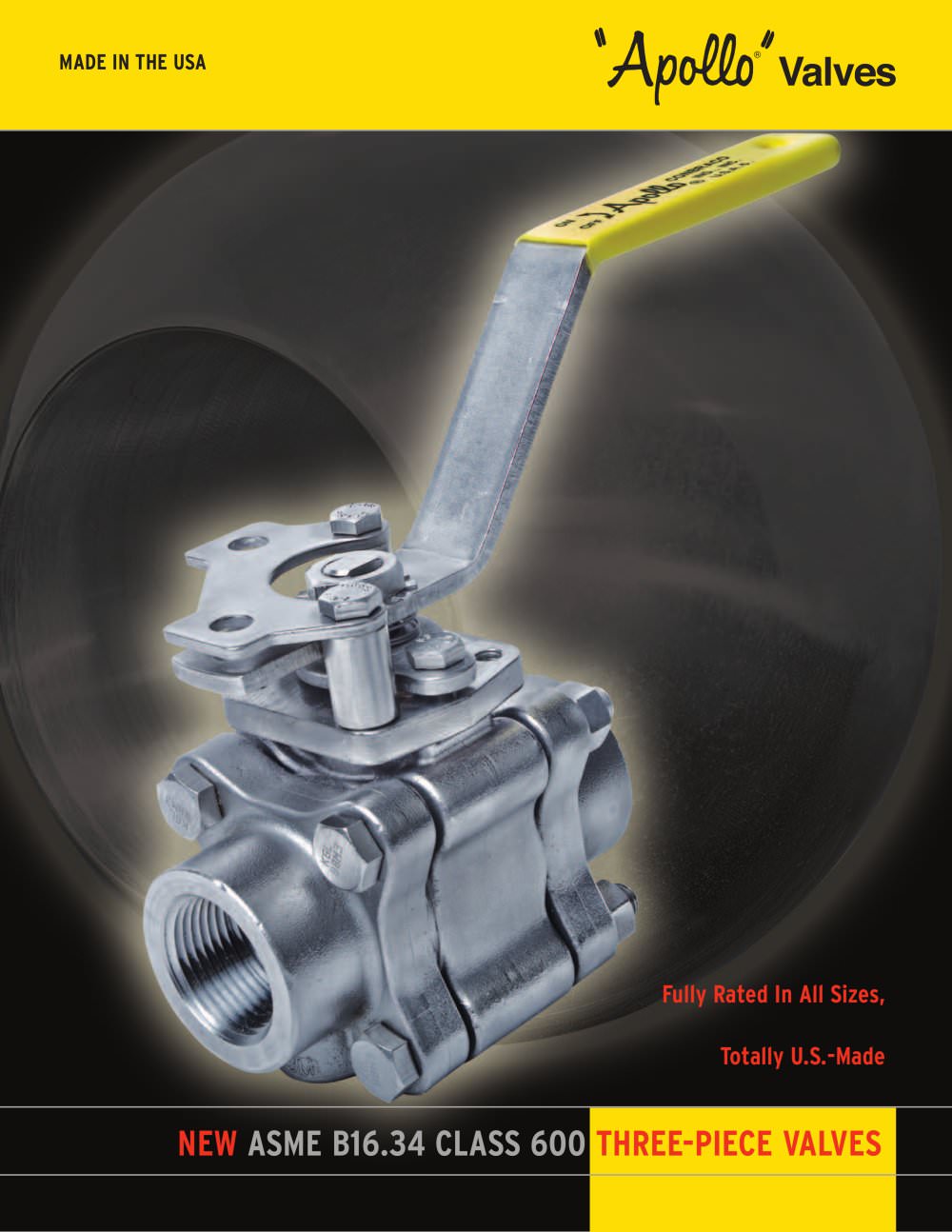

NEW ASME B16.34 CLASS 600 THREE-PIECE VALVES Fully Rated In All Sizes, Totally U.S.-Made MADE IN THE USA

Open the catalog to page 1

Designed For The Toughest Applications A. Extra-Strong Stem Bearing – Proprietary PEEK-PTFE blend offers high strength and lower friction. B. Enclosed Bolting – Standard stainless steel bolts on all models are enclosed within the valve body to minimize exposure to corrosion and help maintain alignment of body and end connectors. C. Stem Packing – Multi-piece V-ring PTFE packing standard; graphite packing available on fire-tested models only. D. Seat Design – Cantilever designed seats reduce effort to operate valve; semi-cavity fill profile keeps cavity volume to a minimum and adds stability to...

Open the catalog to page 2

X XX X X X X X ASME CLASS 600 OPTIONS 01 – Standard (locking, multi-seal seats) 04 - 2-1/4” Stem Extention (Locking) 14 – Side Vented Ball 15 – Round Wheel Handle (locking) 21 – UHMWPE Seats (graphite packing) (not available on 83A/86A) 24 – Firetested, graphite packing & seal (not available on 83A/86A) 38 - Peek Seat, Graphite Packing & Seals (not available on 83A/86A) 49 – Assembled Dry 57 – Cleaned for Oxygen Service (86A, B, C) 60 – Grounded Ball & Stem (optional on 83A/86A) 63 - NPT x SW 67 – Cleaned for Industrial Gases (83A, 83B) 69 – Drilled & Tapped Purge Port w/Plug 70 – 4" Extended...

Open the catalog to page 3

Ball Valve Catalog Actuation Catalog Top Entry Catalog Other Apollo® Literature for Your Specification Library Conbraco® and Apollo® are registered trademarks of Conbraco Industries Inc. Conbraco Industries Inc. reserves the right to change specifications without notice. © 2006 Conbraco Industries Inc. Conbraco Industries, Inc. warranties, to its initial purchaser only, that its products which are delivered to this initial purchaser will be of the kind described in the order or price list and will be free of defects in workmanship or material for a period of two years from the date of delivery...

Open the catalog to page 4
