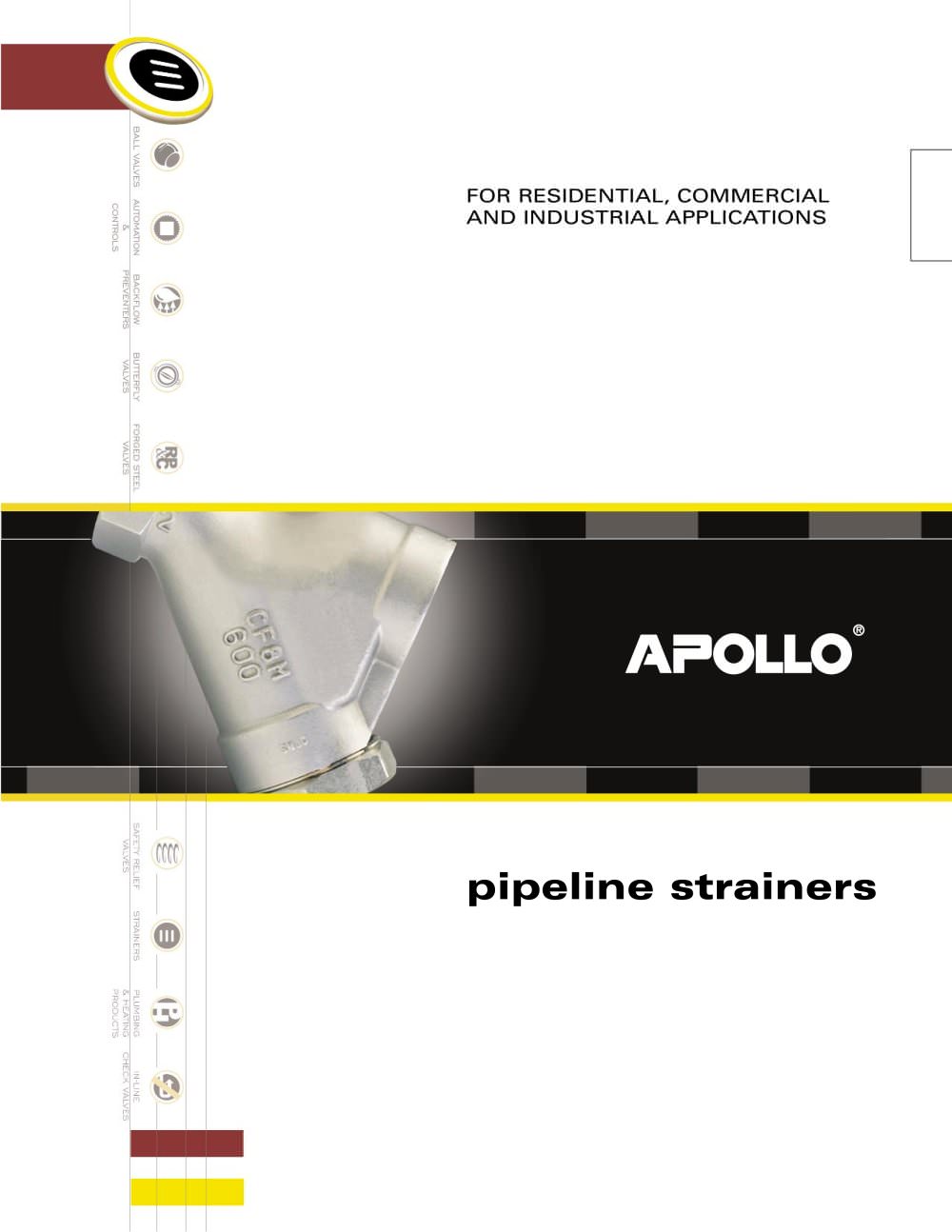

FOR RESIDENTIAL, COMMERCIALAND INDUSTRIAL APPLICATIONS pipeline strainers >

Open the catalog to page 1

If you need pipeline strainers to protect expensiveequipment such as valves, meters, solenoids, regulators and pumps in a wide variety of applications, Conbraco Industries should be your source. No other company provides you with more top quality strainer choices.Conbraco produces a wide variety of strainer models insizes from 1/8" to 18", suitable for everything from O.E.M. applications to heavy process industry use. They are available in bronze, cast iron, stainless and carbon steels. Select from threaded or flanged end connections. There arehundreds of screen options, including magnetic...

Open the catalog to page 2

Size 1 - 1/4" 2 - 3/8" 3 - 1/2" 4 - 3/4" 5 - 1" 6 - 1-1/4" 7 - 1-1/2" 8 - 2" 9 - 2-1/2" 0 - 3" A- 4" B - 5" C - 6" E - 8" G - 10" H - 12" J - 14" K - 16" L- 18" 1 - 304 SST2 - MONEL 3 - 316 SST 4 - BRASS 6 - 304 SST/MAGNETS 7 - MONEL/MAGNETS 8 - 316 SST/MAGNETS 9 - BRASS/MAGNETS A- 20 MESH B - 30 MESH C - 40 MESH D - 60 MESH E - 80 MESH F - 100 MESH G - 60/80/100MESH H - 200 MESH I - .020 PERF J - .027 PERF K - .033 PERF L- .045 PERF M - .062 PERF N - .125 PERF O - .187 PERF P- .250 PERF Q - .375 PERF R - .312 PERF S - .156 PERF T- 16 MESH U - 12 MESH V - .500 PERF W - 150 MESH Y- .093 PERF...

Open the catalog to page 4

* Recommended spare parts STANDARD SCREENS: SizeScreen Opening 1/8" thru 1/2"50 Mesh 3/4" thru 2"20 Mesh Dimensional Specifications > Tapped CapScreen AreaModelSizeABC(Suffix-02)Wt./100(IN2) 59-003-06 > 1 / > 2 "2- > 11 / > 16 3- > 3 / > 4 6- > 61 / > 64 1383.1959-004-06 > 3 / > 4 "3- > 13 / > 16 2- > 15 / > 16 8- > 31 / > 32 ֖2468.18 59-005-061"4- > 3 / > 4 3- > 5 / > 8 1141712.959-006-061- > 1 / > 4 "5- > 1 / > 8 3- > 15 / > 16 11- > 1 / > 2 ֖49916.2 59-007-061- > 1 / > 2 "5- > 3 / > 4 4- > 13 / > 32 12- > 27 / > 64 72022.859-008-062"6- > 25 / > 32 4- > 21 / > 32 13- > 25 / > 32 ֖109132.7...

Open the catalog to page 8

Conbracos 59 Series Sweat End Y-Strainers provide excellent protectionagainst particle contamination in piping systems and process equipment. This lightweight and compact series is designed with minimal wall thickness at the solder ends to allow forhigh strength solder joints. These Y-Strainers consist of bronze bodies and stainless steel screens, and are corrosion resistant. The 59 Series Sweat End Strainers are designed for operatingpressures up to 400 psig and are available in sizes 1/2" through 2".Optional tapped caps are also available for convenient cleaning of the screen and are not...

Open the catalog to page 9

The body of the 59-V is corrosion-resistant solid cast bronze, ASTM B-584. The removable clean-out cap is solid brass bar stock,ASTM B-16. Standard screens are made of 304 stainless steel, and are 50 mesh. Materials of Construction No.PartMaterialASTM SpecRemarks > 1.BodyCast BronzeB-584 2. ScreenStainless SteelType 304 50 Mesh 3.O-RingEPDM4.CapRod Brass B-16 > Note: Specify suffix -H1 for optional 100 Mesh.-C1 for optional 80 Mesh. -D1 for optional 30 Mesh. Pressure Drop (psig) Flow Rate (GPM) >

Open the catalog to page 10

NPT THREADED ENDSՕWORKING PRESSURE (Non-Shock) > (Apollo > International) 250 psig @ 406ΰF. Steam 400 psig @ 150F. Water, Oil, Gas Install these hardworking strainers upstream in almost any application toprotect valves, regulators, solenoids and meters from rust, dirt and pipe scale. The ГTCG Series is a rugged 250 lb. WSP-rated strainer constructed from high-tensile ASTM A-126 Class B cast iron with blow- off connections and easily removable cylindrical screens. A tapered seat allows screens to be self-aligning and assures a perfect fit. Self-cleaning is easily accomplished by opening the...

Open the catalog to page 11

(Apollo > International) Size 2- > 1 / > 2 " through 6". Available standard or epoxy coated.Ε SIZES 2- > 1 / > 2 " THRU 6"OPERATING PRESSURES AND TEMPERATURES 125 lb. Flange125 psig @ 450հF. Steam 200 psig @ 150F. WOG ЕLISTING: Underwriters Laboratories Inc. > Subject #321Fire Main Equipment, Strainers, ΓY Type Pipe Strainers ԕCONSTRUCTION: High-tensile ASTM A126 Class B Cast Iron with blow-offconnections and self aligning cylindrical screens. May be installed in horizontal or vertical pipe lines with blow-off con-nection at the lower end of the screen. All have a flanged blow-off cover. A...

Open the catalog to page 15

Example AӔ- Rod Magnet EXAMPLEBӔ- HORSESHOE MAGNET > 1 / > 4 " Dia. MagnetMagnetSpacerHorseshoe Type Magnet YӔ Type - Sizes 1/2" thru 1-1/4"YӔ Type - Sizes 1-1/2" & 2" >

Open the catalog to page 17

EXAMPLECӔ- CHANNEL MAGNET YӔType - Sizes 2- MagnetChannel Type Magnet > 1 / > 2 " thru 18" Magnet Quantity Size > 1 / > 2 thru 1- > 1 / > 4 1- > 1 / > 2 22- > 1 / > 2 345681012141618 YӔType 1463341012121216202432 Basket Type 223357111317 >
