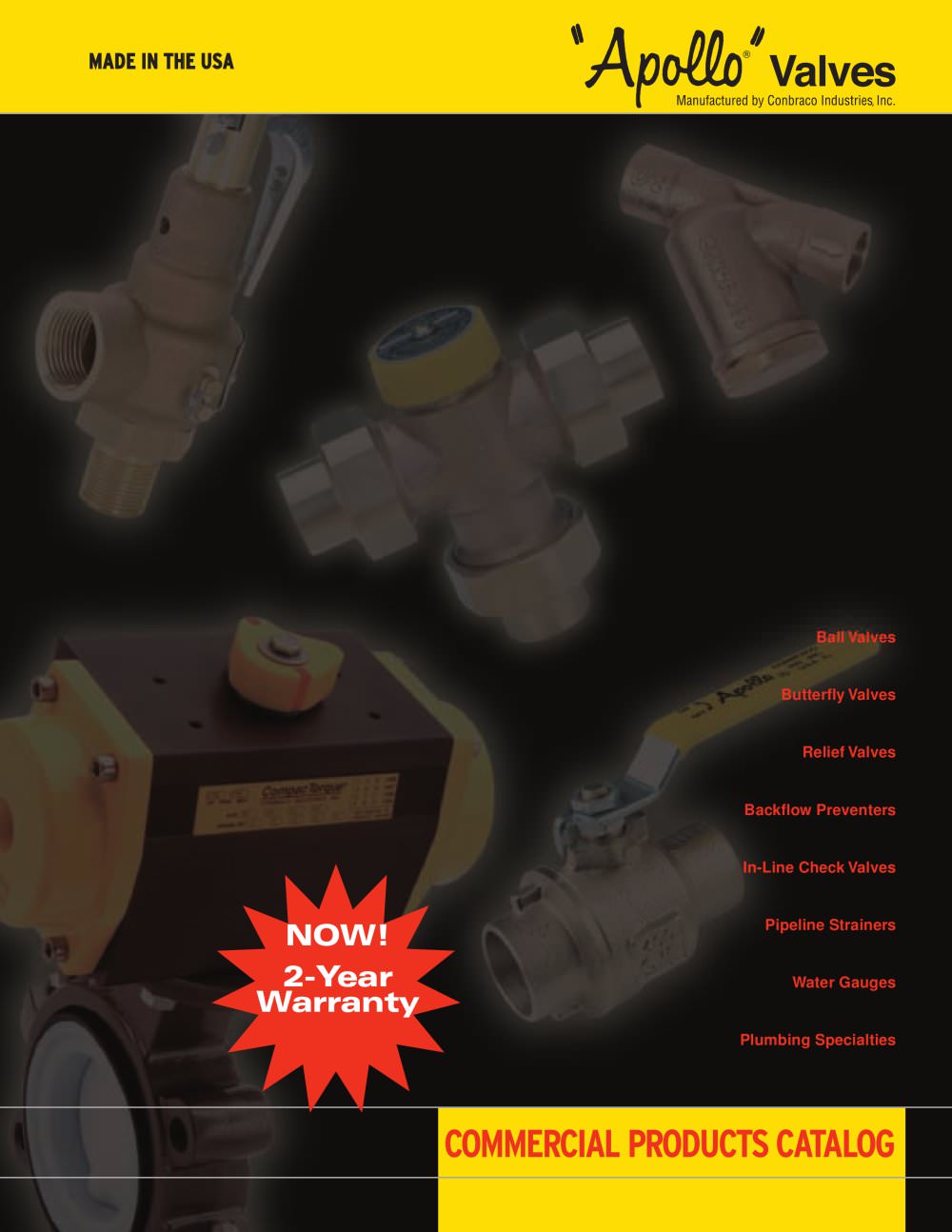

MADE IN THE USA Ball ValvesButterfly ValvesRelief ValvesBackflow PreventersIn-Line Check ValvesPipeline StrainersWater GaugesPlumbing Specialties NOW!2-YearWarranty COMMERCIALPRODUCTSCATALOG >

Open the catalog to page 1

Look around Conbraco and youll see our commitment to serving mechanical contractors is as strong today as it was over 75 years ago when we filled our first order.As the industry has grown, so has our lineup.Today, weҒre designing and producing more than 120 distinct products under the Conbraco and Apollo All products, services and systems will be constantly improved to enhance our recognition for leadership and excellence by our customers and our industry. This requires that we clearly determine our customersrequirements and consistently meet or exceed those requirements. 10 Series. . . . ....

Open the catalog to page 2

ApolloΒs > solid ball design delivers real full-port performance with 100 percent American construction. > ? American-made bronze castings? Machined solid chrome-plated ball ? 600 psig CWPand 150 psig SWP ? Multi-fill PTFE seats and seals ? Adjustable packing ? Blow-out proof stem design ? Vacuum service to 29 in. Hg ? Full-port design through 2-1/2" ? Flexible handle orientation ? Available with stainless steel ball and stem as 77C-140 Series (threaded), 77C-240 Series (solder). Standard in 2-1/2" size? ANSI B16.18 solder end version available as 77C-200 Series? Stainless steel ball & stem...

Open the catalog to page 5

NPTthreaded ball valve rated to 400 psig CWP, non-shock and 125 psig for saturated steam. Blowout-proof stem design with adjustable packing gland. > ? Chromium plated ball? PTFE seats and MPTFE stuffing box ring ? Tee handle (-07) ? Round handle (-15) ? 1-1/4 stem extension (-03) ? 2-1/4Ԕ stem extension (-04) ? SS latch-lock lever & nut (-27) ? Balancing stop ModelSize Dimensions (in.)Number(in.)ABCDE 32-101-01 1/40.370.801.601.652.87 32-102-01 3/80.370.801.601.652.87 32-103-01 1/20.401.002.001.682.87 32-104-01 3/40.651.202.411.903.87 32-105-01 10.751.553.092.184.87 32-106-01...

Open the catalog to page 7

This Conbraco general purpose valve is the most widely used bronze ball valve in the industry.It features a blowout-proof stem, RPTFE seats and stuffing box ring, adjustable packing gland and chromium-plated ball. > ? Rated 600 psig non-shock? 150 psig for saturated steam ModelSize Dimensions* (in.)CartonNumber(in.)ABCQty. 70-101-01 1/40.371.032.0610 70-102-01 3/80.371.032.0610 70-103-01 1/20.501.122.2510 70-104-01 3/40.681.503.0010 70-105-01 10.871.683.3710 70-106-01 1-1/41.002.004.005 70-107-01 1-1/21.252.184.375 70-108-01 21.502.344.682 70-109-01 2-1/22.003.126.251 70-100-01...

Open the catalog to page 8

70-100 SERIES OPTIONS 70-100-08 70-100-17 70-100-2770-100-41 THREADED BALL VALVEWITH 90REVERSED STEM THREADED VALVE WITHROUGH CHROME PLATING > Use in critical applicationswhen handle is required tobe in a parallel positionwhen closed. Featureschromium-plated ball, RPTFE seats and stuffing box ring. Rated 600 psig WOG, non-shock; 150 psig for saturated steam.? Blowout-proof stem design ? Adjustable packing gland Use where a cleanenvironment isrequired; for match-ing up with otherchrome-platedequipment. Featuresa chromium-plated ball, RPTFE seatsand stuffing box ring, a blowout-proofstem...

Open the catalog to page 9

This valve combines pipe union with ball valve shut-off; it saves time and labor by eliminating the need for extra connections. Viton O-Ring sealed union requires light torque for proper seal. > Eliminates need for extra nipple when connecting to female connection to save time and labor.Ruggedly built for lasting performance with chromium-plated ball and blowout-proof stem design. > ? Vacuum service to 29" Hg. ? 600 psig CWP, non-shock? RPTFE seats and stuffing box ring? Adjustable packing Model SizeDimensions (in.)Number(in.)ABC > E DE70-801-01 1/40.371.402.431.753.87 70-802-01...

Open the catalog to page 11

Valve offers union ends to make assembly and disassembly easier. Rated 400 psig CWP, non-shock,it is equipped with a rugged chromium-plated ball and PTFE seats. > ? Stem designed to be blowout-proof? Full flow, minimum pressure drop Model SizeDimensions (in.)Number(in.)ABCDEFGH 7B-301-01 1/40.372.132.921.372.680.930.531/8 NPT 7B-303-01 1/20.502.213.081.432.680.930.531/8 NPT 7B-304-01 3/40.752.253.671.623.001.120.751/8 NPT 7B-305-01 11.002.714.501.904.001.310.941/8 NPT 7B-307-01 1-1/21.503.435.622.605.621.811.311/4 NPT 7B-308-01 22.004.006.562.955.622.181.681/4 NPT > Eliminates leak path and...

Open the catalog to page 13

Valve designed to easily accommodate spring return handle, actuator or simple panel mounting.Threaded end connections with RPTFE seats and stuffing box ring. > ? 3⁄4" to 3" models (See 77 Series for 1/4"-1/2")? 600 CWPpressure rating ? Blowout-proof stem? Round handle optional? Adjustable packing > 3"Size Only ModelSize Dimensions (in.)Number(in.)ABCDEFGH 71-104-01 3/40.681.503.002.124.870.871.3710-24 NC 71-105-01 10.871.683.372.254.870.871.3710-24 NC 71-106-01 1-1/41.002.004.002.625.500.931.501/4-20 NC 71-107-01 1-1/21.252.184.372.878.000.931.501/4-20 NC 71-108-01...

Open the catalog to page 16

Designed for hydronic applications, this valve comes with a simple stop plate that fits over its standard lever handle. Also available with tee or round handles. Features a chromium-plated ball, RPTFE seats and stuffing box ring, a blowout-proof stem design and adjustable packing gland. > ? Rated 600 psig CWP, non-shock ? Chromium plated ball ? MSS-SP110 ? CRN: 0C10908.5C? 150 psig for saturated steam? Blowout-proof stem design ? Adjustable packing gland ? RPTFE seats & stuffing box ring > E Model Size Dimensions (in.)WtNumber(in.)ABCDE(lb.) 70-151-01 1/40.371.032.061.753.870.60 > D...

Open the catalog to page 17

Solder end, 600 psig CWP, cold non-shock. 150 psig Saturated Steam. > ?Chromium plated ball?Adjustable packing gland?RPTFE seats and stuffing box ring?Blow-out proof stem design ModelSize Dimensions (in.) Number(in.)ABCDEFGH 70-203-C8 1/20.501.432.871.753.870.630.5014.87 70-204-C8 3/40.681.933.872.124.870.880.7515.87 70-205-C8 10.872.254.502.254.871.130.9016.50 70-206-C8 1-1/41.002.314.622.625.501.380.9616.62 70-207-C8 1-1/21.252.625.253.068.001.631.0917.25 70-208-C8 21.503.186.373.258.002.131.3418.37 70-209-C8A 2-1/22.003.747.513.758.002.631.4819.51 70-200-C8...
