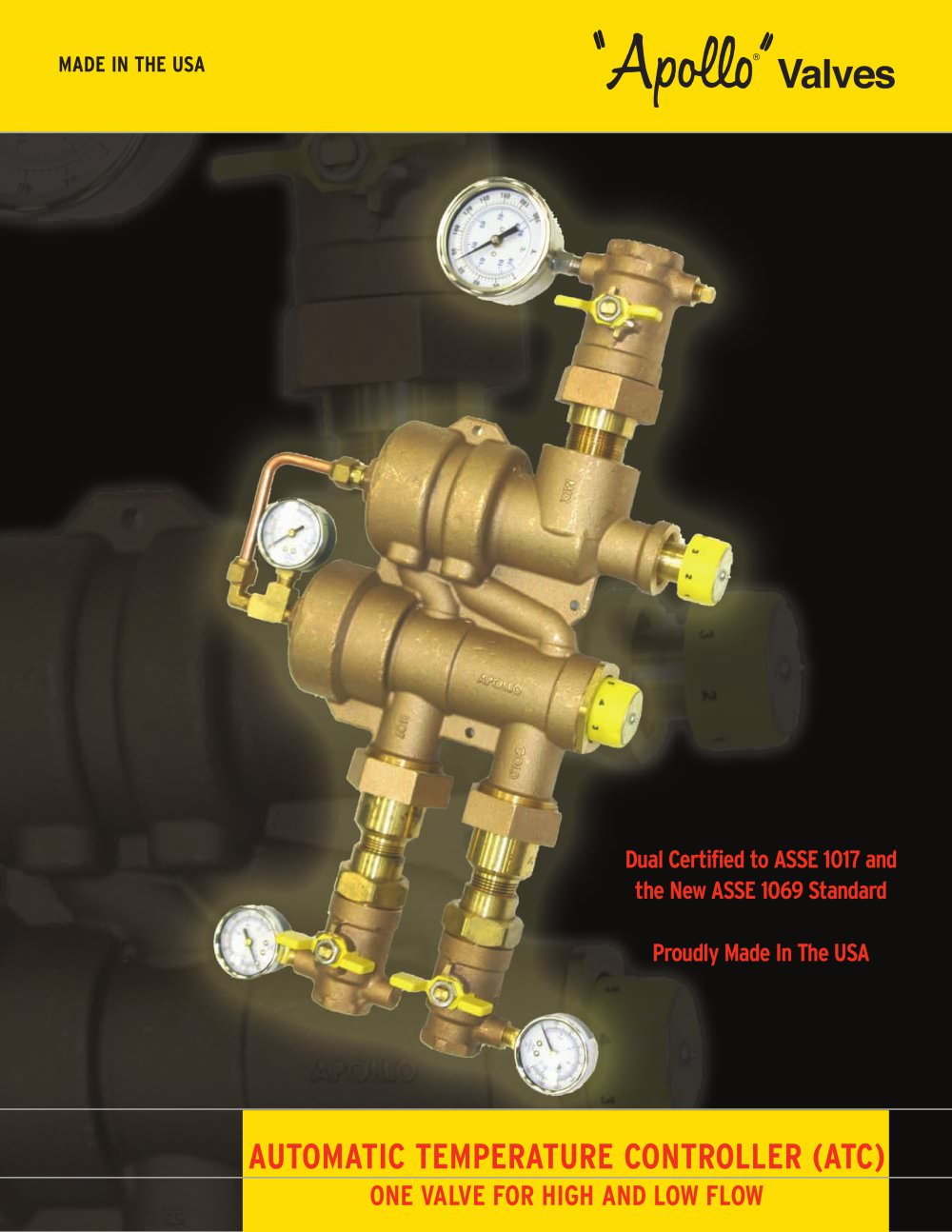

AUTOMATIC TEMPERATURE CONTROLLER (ATC) ONE VALVE FOR HIGH AND LOW FLOW Dual Certified to ASSE 1017 and the New ASSE 1069 Standard Proudly Made In The USA MADE IN THE USA

NEW FROM APOLLO® ...THE FIRST MULTIPLE-FIXTURE MIXING VALVE Description The Apollo® 34HL Automatic Temperature Controller (ATC) is an advanced Thermostatic Mixing Valve capable of maintaining safe, consistent temperature control of water at low and high flows. The 34HL will provide consistent temperature control at flow rates as high as 60 GPM and as low as 1.5 GPM, including mid-range flow between high and low. This high quality Apollo valve performs its function without requiring recirculation pumps like other systems in order to achieve low flow control. Integral strainers and checks are provided...

VE THAT MEETS NEW ASSE 1069 STANDARD Customer Service 1-704-841-6000 Figure 1: Typical Valve Dimensions with Stainless Steel Recessed Cabinet Option Figure 2: Typical Installation With Optional Recirculation Loop Standard Approvals ASSE 1069 - Automatic Temperature Control Mixing Valves This devise will control outlet set water temperature to individual or multiple fixtures within 3°F to reduce the risk of scalding or thermal shock. This device is intended to be installed where the bather has no access to the temperature adjustment, and where no further mixing occurs downstream of the device....

Commercial Products Catalog Other Apollo® Literature for Your Specification Library Conbraco® and Apollo® are registered trademarks of Conbraco Industries Inc. Conbraco Industries Inc. reserves the right to change specifications without notice. © 2008 Conbraco Industries Inc. Conbraco Industries, Inc. warranties, to its initial purchaser only, that its products which are delivered to this initial purchaser will be of the kind described in the order or price list and will be free of defects in workmanship or material for a period of one year from the date of delivery to you, our initial purchaser....
