ASME SAFETY VALVE (10322 Series)

ASME SAFETY VALVE (10322 Series)
1Pages

Catalog excerpts

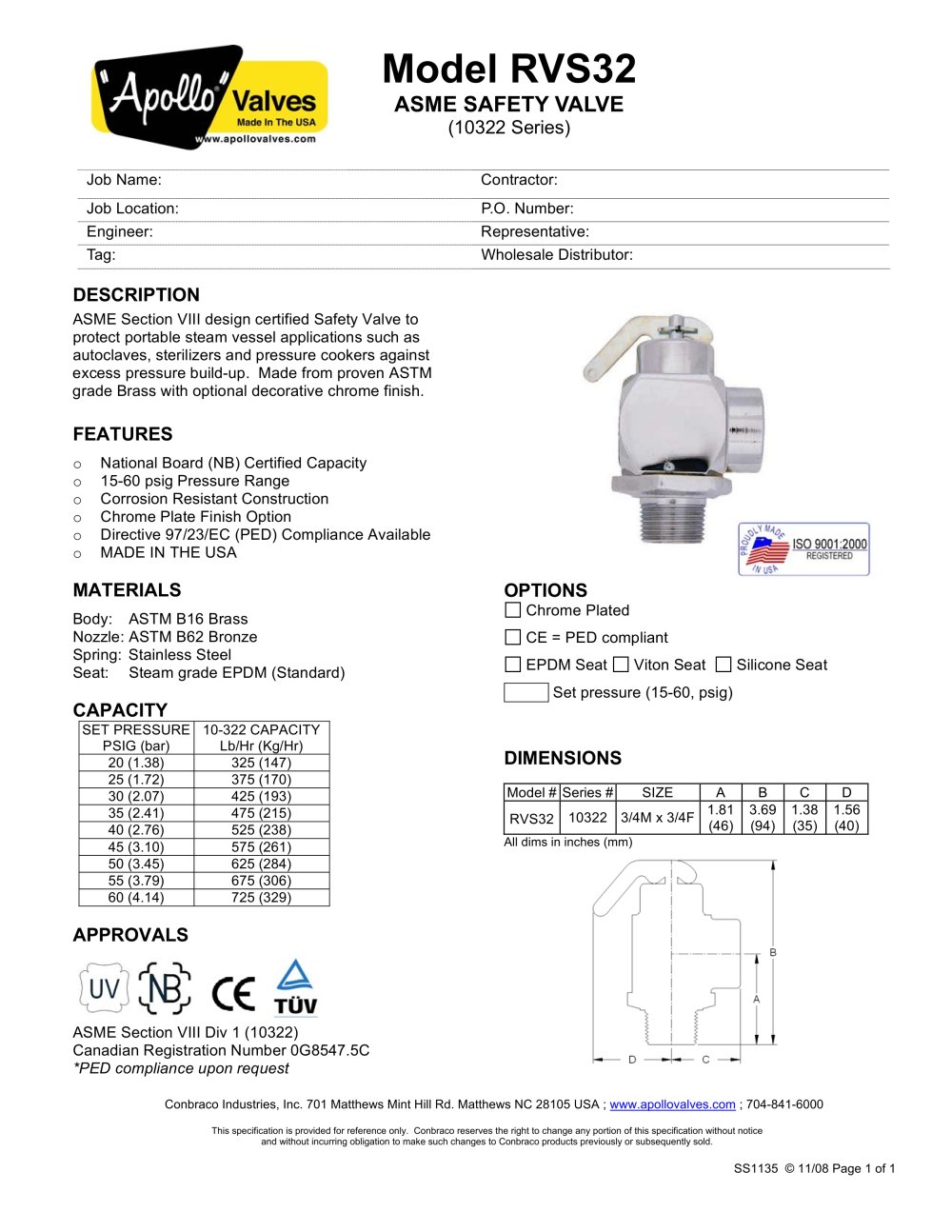

Model RVS32 Conbraco Industries, Inc. 701 Matthews Mint Hill Rd. Matthews NC 28105 USA ; www.apollovalves.com ; 704-841-6000 This specification is provided for reference only. Conbraco reserves the right to change any portion of this specification without notice and without incurring obligation to make such changes to Conbraco products previously or subsequently sold. SS1135 © 11/08 Page 1 of 1 ASME SAFETY VALVE (10322 Series) Job Name: Contractor: Job Location: P.O. Number: Engineer: Representative: Tag: Wholesale Distributor: DESCRIPTION ASME Section VIII design certified Safety Valve to protect portable steam vessel applications such as autoclaves, sterilizers and pressure cookers against excess pressure build-up. Made from proven ASTM grade Brass with optional decorative chrome finish. FEATURES o National Board (NB) Certified Capacity o 15-60 psig Pressure Range o Corrosion Resistant Construction o Chrome Plate Finish Option o Directive 97/23/EC (PED) Compliance Available o MADE IN THE USA MATERIALS Body: ASTM B16 Brass Nozzle: ASTM B62 Bronze Spring: Stainless Steel Seat: Steam grade EPDM (Standard) CAPACITY SET PRESSURE PSIG (bar) 10-322 CAPACITY Lb/Hr (Kg/Hr) 20 (1.38) 325 (147) 25 (1.72) 375 (170) 30 (2.07) 425 (193) 35 (2.41) 475 (215) 40 (2.76) 525 (238) 45 (3.10) 575 (261) 50 (3.45) 625 (284) 55 (3.79) 675 (306) 60 (4.14) 725 (329) APPROVALS ASME Section VIII Div 1 (10322) Canadian Registration Number 0G8547.5C *PED compliance upon request OPTIONS Chrome Plated CE = PED compliant EPDM Seat Viton Seat Silicone Seat Set pressure (15-60, psig) DIMENSIONS Model # Series # SIZE A B C D RVS32 10322 3/4M x 3/4F 1.81 (46) 3.69 (94) 1.38 (35) 1.56 (40) All dims in inches (mm)

Open the catalog to page 1
