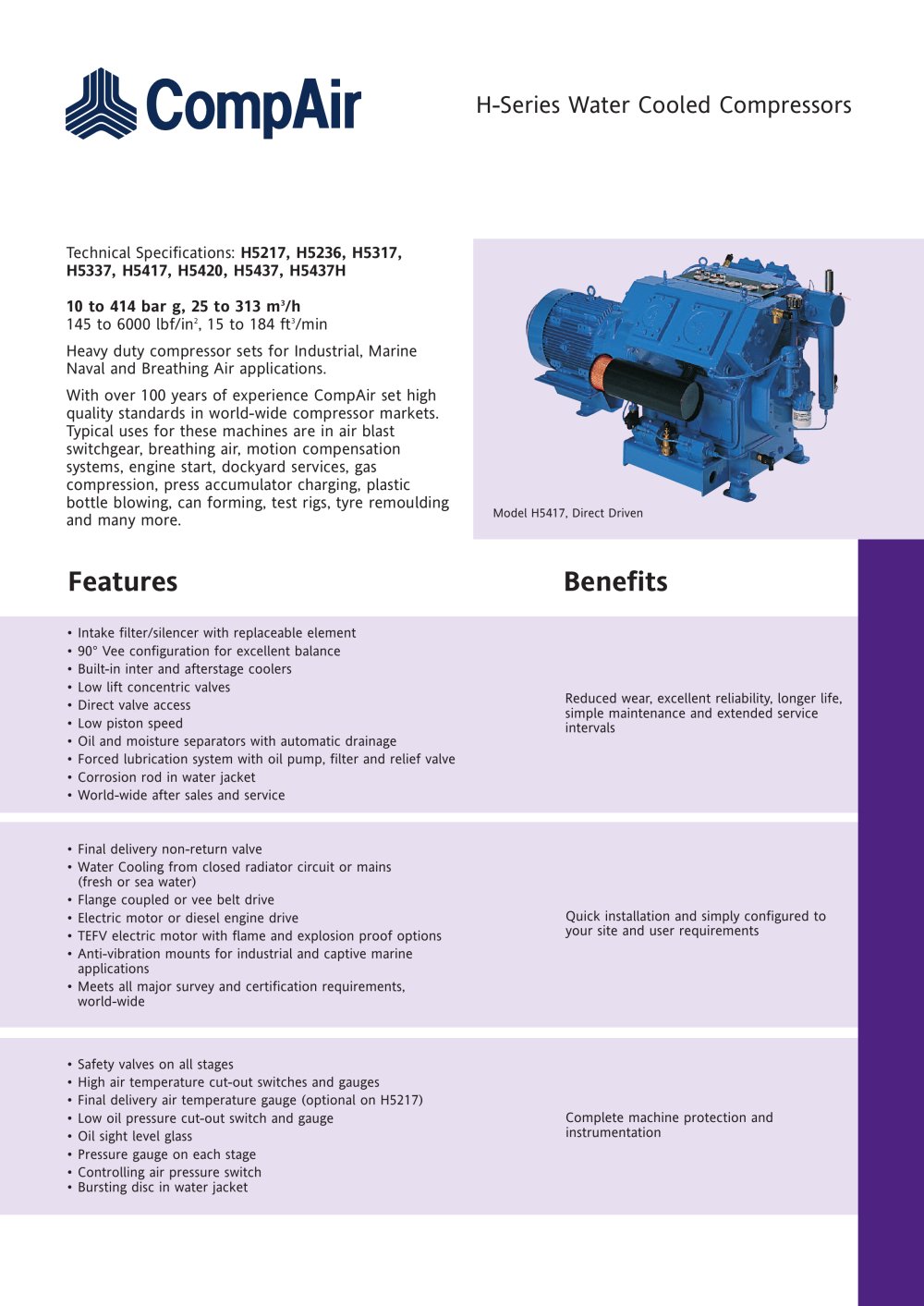

H-Series Water Cooled Compressors

Product catalog summary

Overview: The document provides technical specifications for CompAir's heavy-duty compressor sets, models H5217, H5236, H5317, H5337, H5417, H5420, H5437, and H5437H. These compressors are designed for industrial, marine, naval, and breathing air applications, with pressure ranges from 10 to 414 bar g and flow rates from 25 to 313 m³/h.

Key Features and Benefits:

Reduced wear and excellent reliability with longer life and simple maintenance.
Quick installation and configuration to site and user requirements.
Complete machine protection and instrumentation.
Water-cooled compressors with features like intake filter/silencer, built-in coolers, and low piston speed.
Safety features include safety valves, high air temperature cut-out switches, and low oil pressure cut-out switches.

Technical Data:

Performance is based on inlet conditions of 20°C and 1.013 bar absolute, with flow rates measured according to ISO 1217:1996.
Models are available with different configurations, including direct drive and V-belt drive, with electric motor or diesel engine options.
Cooling options include closed radiator circuit or mains water (fresh or sea water).
Selected models are available in naval configurations with specifications that may differ.

Gas Applications: The compressors can handle various gases such as argon, bio-gas, carbon monoxide, carbon dioxide, ethane, ethylene, helium, hydrogen, methane, natural gas, neon, nitrous oxide, oxy-helium, sludge gas, sulphur hexafluoride, and xenon.

Model Specifications: Detailed specifications for each model are provided, including pressure, flow rates, RPM, power, dimensions, and weight for both V-belt and direct drive configurations.

Additional Notes:

Performance can be increased by approximately 8% for charging duties.
Maximum cooling water flow is approximated at 75 l/hr per kW of absorbed motor power.
CompAir reserves the right to alter specifications and prices without prior notice.
