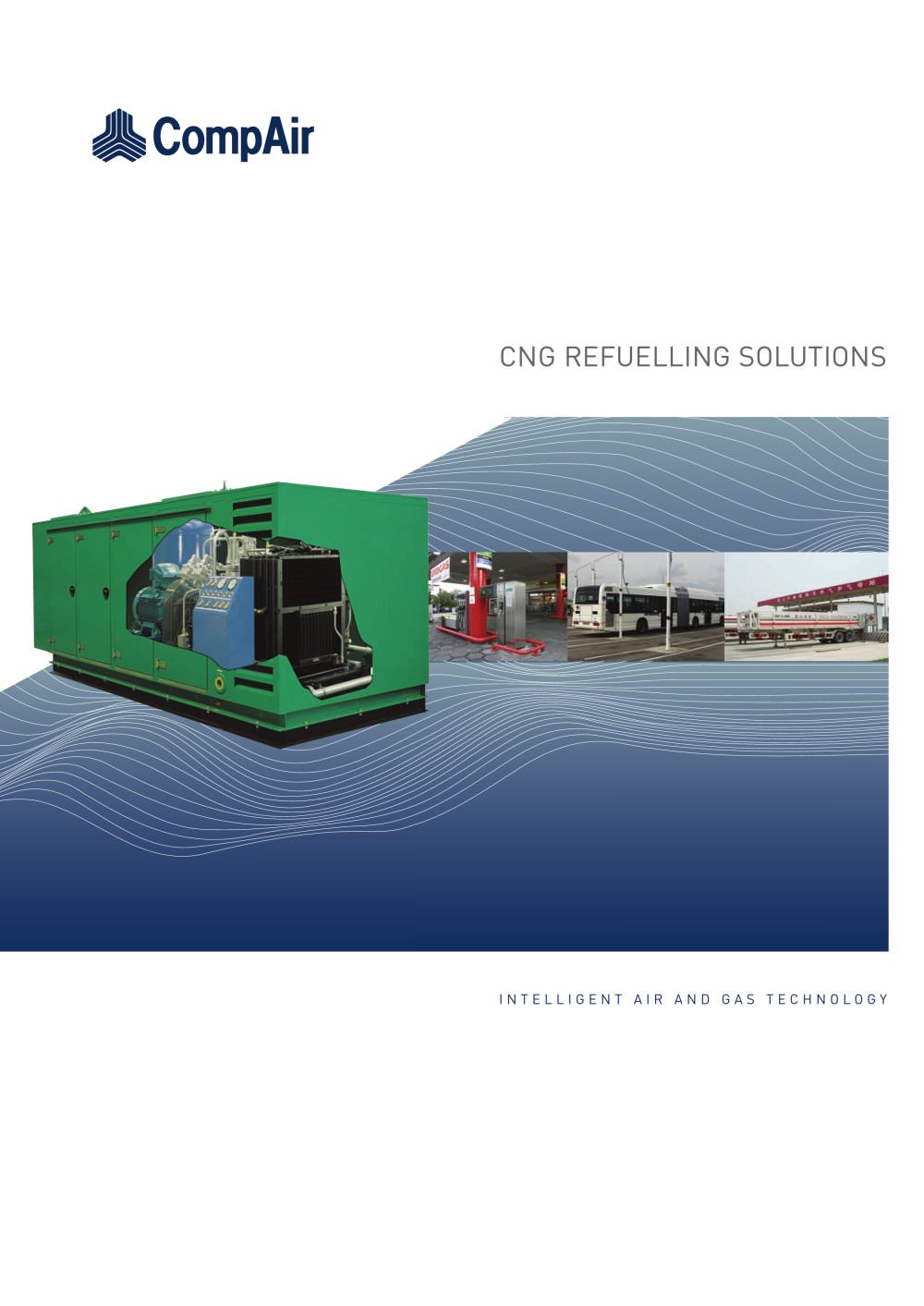

CNG REFUELLING SOLUTIONS

CNG REFUELLING SOLUTIONS

Product catalog summary

Overview
CompAir is a prominent provider of compressed natural gas (CNG) refuelling solutions, offering modular systems suitable for a range of applications, from small forklift fleets to large bus depots. With over 1000 compressors supplied globally, CompAir has significant experience in the CNG industry, delivering turnkey solutions and comprehensive project management.

Specifications and Design
The Gazpack range of compressors is central to CompAir's offerings, featuring both air and water-cooled reciprocating compressors. These systems are designed for flexibility and ease of installation, available in various configurations to meet specific customer needs. They are manufactured under the ISO 9001-2000 quality management system, ensuring high standards and reliability.

Turnkey Solutions
CompAir offers complete project management for CNG refuelling stations, including feasibility studies, site suitability assessments, planning, equipment design, and installation. The company specializes in fast fill, mother-daughter, and time fill station designs, catering to different operational requirements.

Modular Solutions
The Gazpack series provides modular, ready-to-run systems that can be customized with ancillaries like dispensers and dryers. These systems are designed for easy installation and operation, with options for skid-mounted or bedplate-mounted configurations.

Product Range
The Gazpack series includes models such as Gazpack 5, 7, 9, 37, 42, 50, and 70, each tailored for specific capacities and applications. These compressors feature advanced elements like compact design, anti-vibration mounts, gas recovery systems, and automatic controls, suitable for a range of inlet and delivery pressures up to 350 bar g.

Ancillaries
CompAir provides a comprehensive range of ancillaries necessary for a complete refuelling station, including storage systems, priority panels, dispensers, controls, and dryers. These components ensure efficient and reliable operation, with options for electronic and manual dispensers, and various dryer systems to maintain gas quality.

Conclusion
CompAir's CNG refuelling solutions are designed to meet diverse customer needs with a focus on quality, reliability, and efficiency. Their modular systems and comprehensive project management capabilities position them as a leader in the CNG refuelling industry.

Aftermarket Services
CompAir provides extensive aftermarket services to support CNG stations, including in-house service engineers, installation and commissioning, extended warranties, long-term service contracts, refurbishment, servicing and supply of genuine spare parts, and training programs.

Training
CompAir offers global CNG training, including customer operator training, installation & commissioning training, and ongoing service and maintenance training, either in-house or at customer premises.

Shanghai CompAir-Dalong HP Equipment Co. Ltd
Established in 2004 as a joint venture in China, this company manufactures refuelling packages for Asian CNG markets, combining global expertise with local support.

Global Presence
CompAir has a strong global presence with over 300 service engineers in more than 20 countries and a robust distributor network.

Reference List
The document lists various international clients and projects, showcasing CompAir's extensive experience and reach.

Note
CompAir reserves the right to alter specifications and prices without prior notice, and all products are sold subject to the company's conditions of sale.

Catalog excerpts

CompAir meet the needs of a diverse range of customers through a series ofmodular, ready-to-run packages based around the Gazpack range of air and water cooled reciprocating compressors.The Gazpack series is designed to cover the full range of station types from pilotprojects and small forklift fleets, through tohigh capacity public stations and large bus refuelling depots.Designed for flexibility and ease of installation, the Gazpack series is available inawide range of packaging options.With advanced compressor design, extensive turnkey project experience and atruly local service capability,...

Open the catalog to page 2

With time fill posts the vehicle is refuelled directlyfrom the compressor without the need for storage cylinders. Refuelling is therefore slower and more suited for vehicles left overnight at a depot, such as buses. With time fill posts the quantity of fuel dispensed into each vehicle is not easily monitored and therefore time fill is unsuitable for public refuelling stations. > The mother-daughter concept is a 'virtual pipeline' wherenatural gas is drawn and compressed from the pipeline at the Mother site and transported to the Daughter site by truck and trailer. This is usually used to service...

Open the catalog to page 5

MODULAR SOLUTIONS 10 EXAMPLE C EXAMPLE D >

Open the catalog to page 7

Gazpack 5 745mm W x 1250mm D x 1925mm H800kg Gazpack 7 870mm W x 1293mm D x 2045mm H875kg Gazpack 9 970mm W x 1900mm D x 2260mm H1,650kg > *1630 rpm GAZPACK 5GAZPACK 7GAZPACK 9 NUMBER OF VEHICLES FILLED IN A 12 HOUR PERIOD >

Open the catalog to page 9

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:18.00pt "Arial", sans-serif; } .font5 { font:23.00pt "Arial", sans-serif; } .font6 { font:8.00pt "Times New Roman", serif; } PRODUCTS 10 GazpackSries50 70 commended for large bus and truck fleets Capacity (FGD) Inlet Gas Pressure 170 - 1 748m3/hr 1.0 to 18.0 bar g The Gazpack 50 and Gazpack 70 series multistage air cooled compressors offer larger capacities...

Open the catalog to page 11

80 litres water capacity per cylinder Օ Compressor feed lines 12mm OD 316 stainless steel tubing & fittings ֕ Dispenser bypass line 16mm OD 316 stainless steel tubing & fittings ֕ Mechanical valves set storage bank filling priority Maximum working pressure 350 bar g Օ Gauges fitted to compressor feed line and all storage bank lines Lightweight panel with flexiblemounting options >

Open the catalog to page 12

Includes fuelling valve, pressure gauge, hose and connector assembly Օ Cost effective with high reliability Unmanned operation once connected Օ Can lower energy costs through use of cheaper off peak energy rates No need for storage systems Օ Ideal for depot based overnight refuelling with modest daily mileage > Singleordual hose designs with ՓBreakaway safety connections ԕ NGV1 or NGV2 nozzles available 1Ֆ3bank sequencing options Ideallysuited for singlecar dispensing or as abackup dispenser at a refuelling depot > Օ Flow rates up to 80kg/min Single or dual hose designs with ՓBreakaway safety...

Open the catalog to page 13

COMPAIR OFFICEOR DISTRIBUTORCOMPAIRMANUFACTURING OR PACKAGING PLANT ACTION BUSES /AUSTRALIA ANUDIP GROUP / BANGLADESH ՕBARLOWORLD MATERIALS HANDLING/UK BBACONNEX GROEP /NETHERLANDS ՕBEIJING HUAYOU UNITED GAS DEVELOPMENT CO. LTD /CHINA BRISBANE CITYCOUNCIL /AUSTRALIA Օ GASCO OIL (PAKISTAN) LTD / PAKISTAN CH JONES (KEYGAS) LTD /UK Օ CHARLES DEGAULLE AIRPORT /FRANCE CONNEX /FRANCE Օ FIAT /POLAND GAS AUTHORITY OF INDIA /INDIA Օ GAZ DEFRANCE /FRANCE GOTEBORG ENERGI / SWEDEN Օ HANJIN CITY GAS COMPANY LTD / KOREA H.S ENTERPRISE /BANGLADESH Օ OIL & NATURAL GAS CORP / INDIA VEOLIA PROPRETE /FRANCE Օ PALL-EX...

Open the catalog to page 15
