DDM Industrial message diffuser

Product catalog summary

Description: The COMITRONIC-BTI DDM is an industrial message diffuser designed to launch pre-recorded audio alerts via external controls. It is suitable for warning of dangers or restricted area access. Key features include the ability to store up to 6 messages, a compact design, weather resistance with an IP65 rating on the front, a light signal, and a sound level of 66 dB at 1 meter. It connects via an 8-pin M12 connector.

Assembly / Installation: The diffuser is mounted through a 55 mm diameter hole in a wall, with a silicone gasket ensuring a seal between the housing and the wall. It is secured by hand-tightening a nut behind the wall.

Operation: The device can store up to 6 messages. A green LED indicates power on. To broadcast a message, apply 24V to the corresponding input pin on the M12 connector. The LED turns red during message broadcast and flashes red if the input remains at 24V after the message ends. The message can repeat up to 10 times if the command is held. The LED returns to green when the input is no longer controlled.

Connectors: The MKT version uses an 8-pin M12 connector with specific wire colors assigned to each function, including message inputs and power supply.

Technical Specifications: The diffuser operates on a supply voltage of 9-30VDC, with a rated voltage of 24 VDC. It functions in temperatures from -25°C to +60°C and has an IP65 front panel and IP67 rear panel rating. The sound level is 66dB at 1m, and the housing is made of PP-ULV0 material. The indicator has a lifetime of 50,000 hours, with a maximum consumption of 3W during message playback and 1W at rest.

Contact Information: COMITRONIC-BTI is located in Canéjan, France, and Rheinmünster, Germany. Contact details include phone numbers and email addresses for both locations.

Catalog excerpts

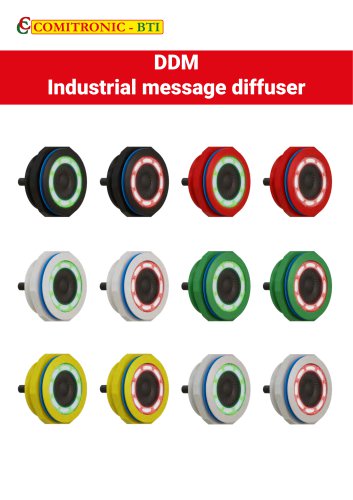

DDM Industrial message diffuser

Open the catalog to page 1

COMITRONIC - BTI Description The message diffuser can be used to launch audio alerts pre-recorded by external controls. The messages relayed can warn of a danger or of access to a reserved area. The benefits include: • • • • • • Up to 6 pre-recorded messages Compact product Weather resistant: IP 65 on the front Light Signal 66 dB at 1 meter Cable with 8-pin M12 connector Assembly / Installation The Message Diffuser product is attached through a wall with a 55 mm diameter hole. The silicone gasket is placed between the housing and the wall to seal. The nut behind the wall allows the unit to be...

Open the catalog to page 2

COMITRONIC - BTIConnectors MKT version 8 pin M12 connector

Open the catalog to page 3

14 Rue Pierre Paul de Riquet 33610 Canéjan France Tel: +33 5 64 10 04 52 Email : [email protected] www.comitronic-bti.fr - www.comitronic-bti.com - www.comitronic-bti.de COMITRONIC-BTI GMBH VICTORIA BOULEVARD A106 77836 RHEINMÜNSTER DEUTSCHLAND

Open the catalog to page 4
