Orbit motors

1 / 8 PagesView full catalog

Orbit motors

Product catalog summary

Options:

Flange mount
Side and rear ports
Shafts: straight and splined
Metric and BSPP ports
Other special features

General Features:

Pressure Drop: Graphs indicate pressure drop in relation to flow rate (Q l/min) and pressure (p bar).
Maximum Speed: Continuous and intermittent speed limits are specified for different models.
Maximum Pressure: Continuous and peak pressure limits are provided for inlet and return lines.
Torque and Power: Maximum torque and power outputs are specified for continuous and intermittent operations.

Specifications:

Intermittent operation values are permissible for a maximum of 10% of every minute.
Peak load values are permissible for a maximum of 1% of every minute.
Recommended filtration is per ISO cleanliness code 20/16 with a nominal filtration of 25 microns or better.
Recommended hydraulic oil: Premium quality, anti-wear type mineral-based hydraulic oil HLP(DIN51524) or HM (ISO 6743/4).
Minimum oil viscosity: 13 mm2/s at operating temperatures.
Maximum system operating temperature: 82°C.
Initial operation: Fill with fluid and run at moderate load and speed for 10-15 minutes.

Function Diagrams:

Data collected at back pressure 5-10 bar and oil viscosity of 32 mm2/s at 50°C.
Graphs show torque (M daNm) versus speed (rpm) for various pressure drops (∆p).

Dimensions:

Side and rear port dimensions are specified.
Flange and shaft dimensions are detailed, including permissible shaft loads.
Order code and flange kit details are provided.

Catalog excerpts

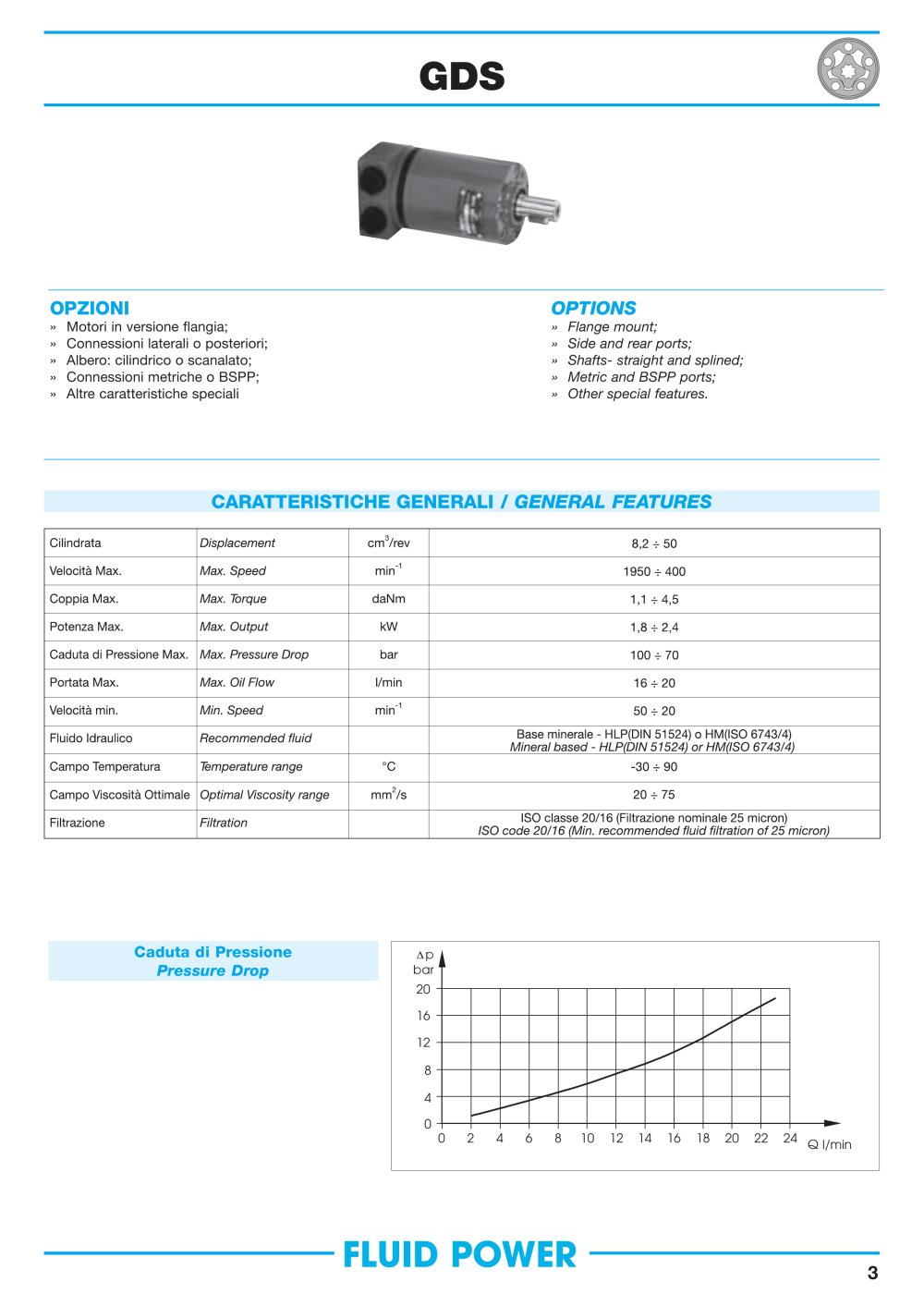

OPZIONI OPTIONS > Motori in versione flangia;ۻ Connessioni laterali o posteriori; Albero: cilindrico o scanalato; ۻ Connessioni metriche o BSPP; Altre caratteristiche speciali ۻ Flange mount; Side and rear ports; ۻ Shafts- straight and splined; Metric and BSPP ports; ۻ Other special features. CARATTERISTICHE GENERALI / GENERAL FEATURES > Caduta di Pressione pbar Pressure Drop 048121620 024681012141618202224 Ql/min 3 >

Open the catalog to page 1

MdaNm > Q=3 l/min 10 > l/min 15 > l/min 20 > l/min 25 > l/min 5 > l/min 3,5 1,51,00,50 ∆ p= 140 bar120 bar100 bar70 bar50 bar30 bar2003005007001100900 2,02,53,0 > cont.int. cont.int. n 10040060080012001000 min > -1 rpm > Condizioni di prova, contropressione 510 bar, viscosit fluido idraulico 32 mm > 2 /s alla temperatura di 50砰 C.The function diagrams data was collected at back pressure 510 bar and oil with viscosity of 32 mm > 2 /s at 50 C. >

Open the catalog to page 4

MdaNm > Q=3 l/min 10 > l/min 15 > l/min 20 > l/min 25 > l/min 5 > l/min ∆ p= 120 bar100 bar80 bar50 bar30 bar200300500 2,03,05,0 4,06,0 > cont.int. 1,00 > cont.int. n 100400600 min > -1 rpm > Condizioni di prova, contropressione 510 bar, viscosit fluido idraulico 32 mm > 2 /s alla temperatura di 50砰 C.The function diagrams data was collected at back pressure 510 bar and oil with viscosity of 32 mm > 2 /s at 50 C. >

Open the catalog to page 5

SIGLA DI ORDINAZIONE / ORDER CODE GDS 12 C1 F 2 _ _ _ > F Kit flangia (2 fori) Flange kit (2 holes) 2x9 0,2 Il kit flangia include n. 3 viti M6x14 per l'attacco della flangia al motore 豸 45 Flange Kit includes 3 screws - M6x14 for attaching flange to the motor 0,2 -0,05 97 80 Ѹ 63 2 0,2 73 5,5 10 size="-1">

Open the catalog to page 8
