Combi-CB

Product catalog summary

Overview: The Combi-Cb is a compact multi-directional forklift designed for handling both palletized and long loads. It is suitable for indoor and outdoor operations and features a unique sliding LP gas bottle for inside container use.

Key Features:

Open Cabin
Load Sensing Steering
4-way Lever Positioning of Wheels
Multi-direction Operation
3 Wheel Hydrostatic Drive
200mm Side Shift
Automatic Carousel

Specifications:

Standard Lift Heights: 4000mm, 4900mm, 5500mm, 6000mm
Free Lift Heights: 0, 1318mm, 1518mm, 1718mm
Height Mast Closed: 2670mm to 2643mm
Max Mast Raised: 4830mm to 6878mm
Overall Length: 2615mm
Ground Clearance Under Mast: 125mm
Ground Clearance to Wheelbase Centre: 100mm
Height of Overhead Guard: 2250mm
Width: 1500mm
Outside Spread of Fork Arms: 1325mm
Track Front: 1320mm
Load Centre Distance: 600mm
Overhang Front: 300mm
Wheel Base: 1100mm
Overhang Back: 140mm
Length From Face of Fork: 1550mm
Approach Angle: 30°
Ramp Angle: 15°
Departure Angle: 30°
Forward Tilt: 3°
Backward Tilt: 8°
Minimum Outside Radius: 1500mm
Capacity: 2500Kg
Unladen Weight: 5900Kg
Maximum Ground Speed: 12 Km/h
Gradibility: 10%
Engine Options: V1505 Kubota diesel / 3.0L GM LP Gas 32KW / 48KW
Electrics: 12 Volt
Fork Section: 125 x 50 x 1065mm
Front Rubber Tyre: 16 x 7 - 10.5 OD 406 / Width 178
Rear Rubber Tyre: 22 x 10 x 16 OD 559 / Width 254
Standard Colour: Green and Grey
Suspension Seat: KAB Model 211

Additional Information: Combilift reserves the right to alter specifications without prior notice. Specifications and dimensions may vary in different countries.

Catalog excerpts

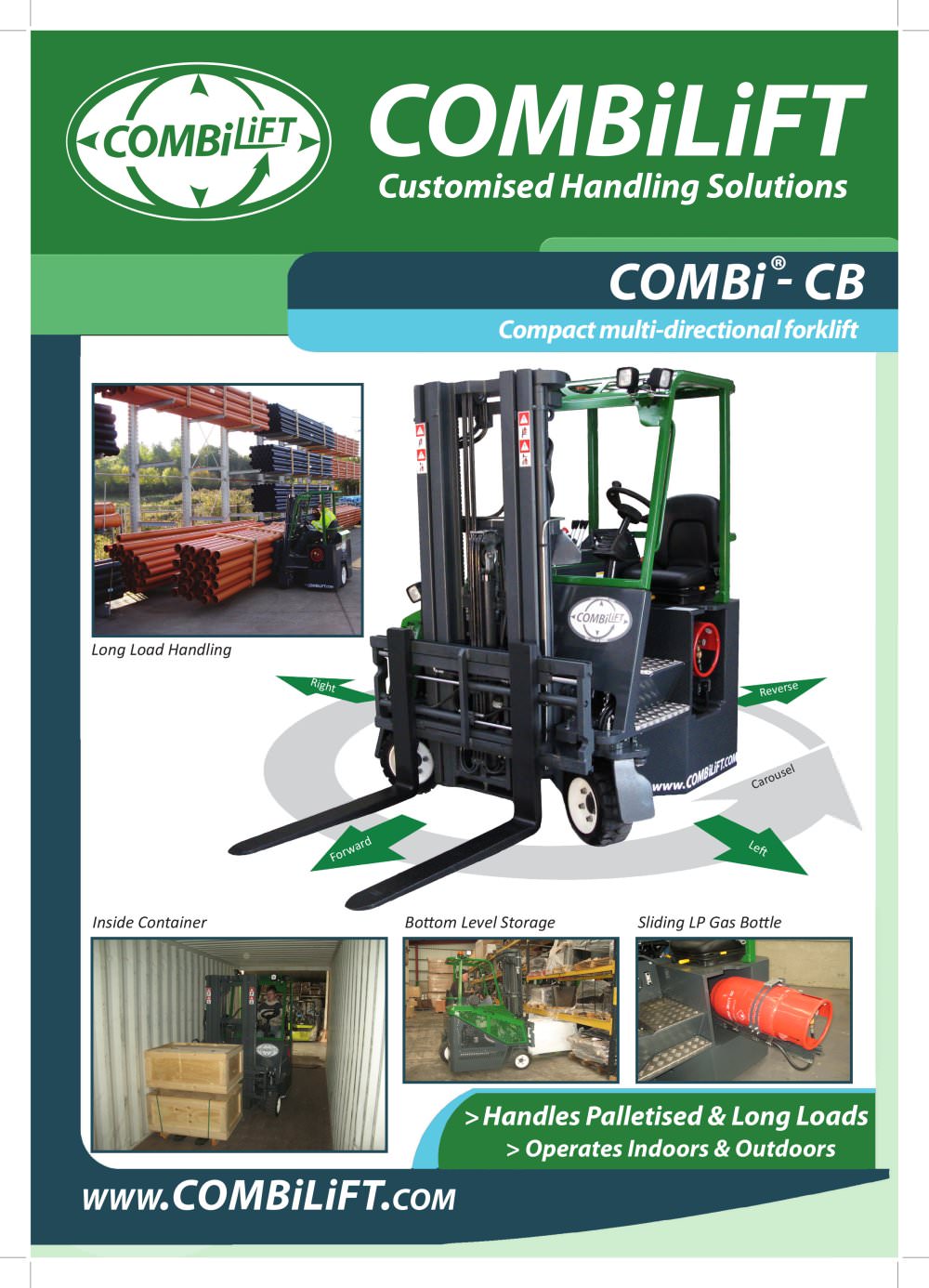

Combi - CB COMBiLiFT Customised Handling Solutions www.combilift.com Inside Container Sliding LP Gas Bottle Compact multi-directional forklift Long Load Handling Bottom Level Storage > Handles Palletised & Long Loads > Operates Indoors & Outdoors Forward Reverse Left Right Carousel ®

Open the catalog to page 1

Sideward Mode frontal Mode Combilift Co. Monaghan Ireland T: +353 47 80500 F: +353 47 80501 E: [email protected] Combilift has a policy of continuous product development and reserves the right to alter specifications without prior notice. Specifications and/or dimensions may vary from those illustrated in some countries. www.combilift.com sp ecifications Combi - CB Protected by Design Registration Copyright: European Community No.: 000725668-0001|US No.: D579, 624|Canadian No.: 123292|Australian No.: 318370|Russian Federation No.: 70814 |Korean No.: 30-0516087|Japanese No.: 1330896|Taiwan No.:...

Open the catalog to page 2
