C5000 SL-SR

C5000 SL-SR

Product catalog summary

Overview: The document provides detailed specifications and features of Combilift's customised handling solutions, specifically focusing on the COMBi SL series, which includes models C4500SL, C5000SL, and C6000SL. These models are designed for enhanced manoeuvrability and efficiency in material handling operations.

Specifications:

Lift and Dimensions: Standard lift height is 4040mm with a free lift height of 0mm. The overall length varies from 2050mm to 2250mm depending on the model.
Capacity and Weight: The capacity ranges from 4500kg to 6000kg, with an unladen weight between 9800kg and 10200kg.
Performance: Maximum ground speed is 20km/h, with a gradability of 15%.
Engine and Power: Equipped with a Kubota V3800-T Diesel or 4.3 ltr GM LPG engine, providing 74kW/72kW power.
Tyres: Front tyre dimensions are 27 x 10-12 with an OD of 680mm, and rear tyres are 355/65-15 with an OD of 800mm.

Features:

Rubber mounted half-open cabin for operator comfort.
Multi-directional operation and 3-wheel hydrostatic drive for superior manoeuvrability.
Load sensing steering and 4-way lever positioning of wheels for precise control.
Hydraulic oil cooler to maintain optimal performance.

Optional Features: The Combilift SL series offers optional features such as a rear-mounted cabin and front access cabin, enhancing operational flexibility.

Advantages: The Combilift SL series allows for narrow aisle operation, superior manoeuvrability, and the ability to block or bulk stack by driving forwards, differentiating it from traditional sit-down sideloaders.

Catalog excerpts

SpeciFiCATIONS REF DESCRIPTION C4500SL C5000SL COMBiLiFT COMBi SL Customised Handling Solutions C6000SL 1a Standard Lift Height 1b Free Lift Height 2 Height Mast Closed 3000mm 3 Max. (Mast Raised) 5200mm 4 Overall Length 2050mm 2050mm 2250mm 5 Mast Travel 1290mm 1290mm 1490mm 6 Ground Clearance Under Mast 300mm 7 Ground Clearance to Wheelbase Centre 235mm 8 Height Over Cab or of Overhead Guard 2670mm 9 Width 3900mm 10 Outside Spread of Fork Arms 1350mm 11 Track Front 3258mm 12 Frame Opening 1400mm 13 Load Centre Distance 600mm 14 Overhang Front 272mm 15 Wheel Base 16 Overhang Back 121mm 17 Length from Face of Fork 850mm 18 Approach Angle 45 ° 19 Ramp Angle 18 ° 20 Departure Angle 45 ° 21 Forward Tilt 3° 22 Backward Tilt 5° 23 Minimum Outside Radius 24 Platform Height ( Optional 750mm) 850mm 850mm 850mm 25 Platform Length 1200mm 1400mm 1400mm A Capacity 4500kg 5000kg 6000kg B Unden Weight 9800kg 9900kg 10200kg 4040mm 0mm 1658mm 1858mm making short COMBi SL C4500 -C5000-C6000 1858mm 2590mm C Maximum Ground Speed D Gradibilty E Kubota V3800-T Diesel/ 4.3 ltr GM LPG F Electric's G Fork Sections 50 x 200 x H 27 x 10-12 Front Tyre OD 680mm / Width 255mm I 355/65-15 Rear Tyre OD 800mm/ Width 295mm J Standard Colour Green and Grey K Suspension Seat KAB Model 116 Features incLude: • Rubber Mounted Half Open Cabin • Multi-Direction Operation • 3 Wheel hydrostatic Drive www.combilift.com 20km/h 15% 74kW/ 72kW 12 Volt 1200mm • • • 1200mm 1400mm Load Sensing Steering 4 Way Lever Postioning of Wheels Hydraulic Oil Cooler Combilift - Customised Handling Solutions www.combilift.com Combilift - Customised Handling Solutions

Open the catalog to page 1

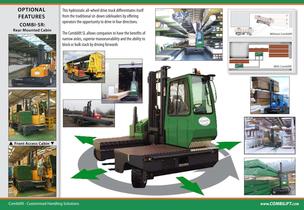

Optional Features Combi-SR: Rear Mounted Cabin This hydrostatic all-wheel drive truck differentiates itself from the traditional sit-down sideloaders by offering operators the opportunity to drive in four directions. The Combilift SL allows companies to have the benefits of narrow aisles, superior manoeuvrability and the ability to block or bulk stack by driving forwards Without Combilift With Combilift p Front Access Cabin q Combilift - Customised Handling Solutions www.combilift.com

Open the catalog to page 2
