PPV10, 1-and 3-phase power inputs

PPV10, 1-and 3-phase power inputs

Product catalog summary

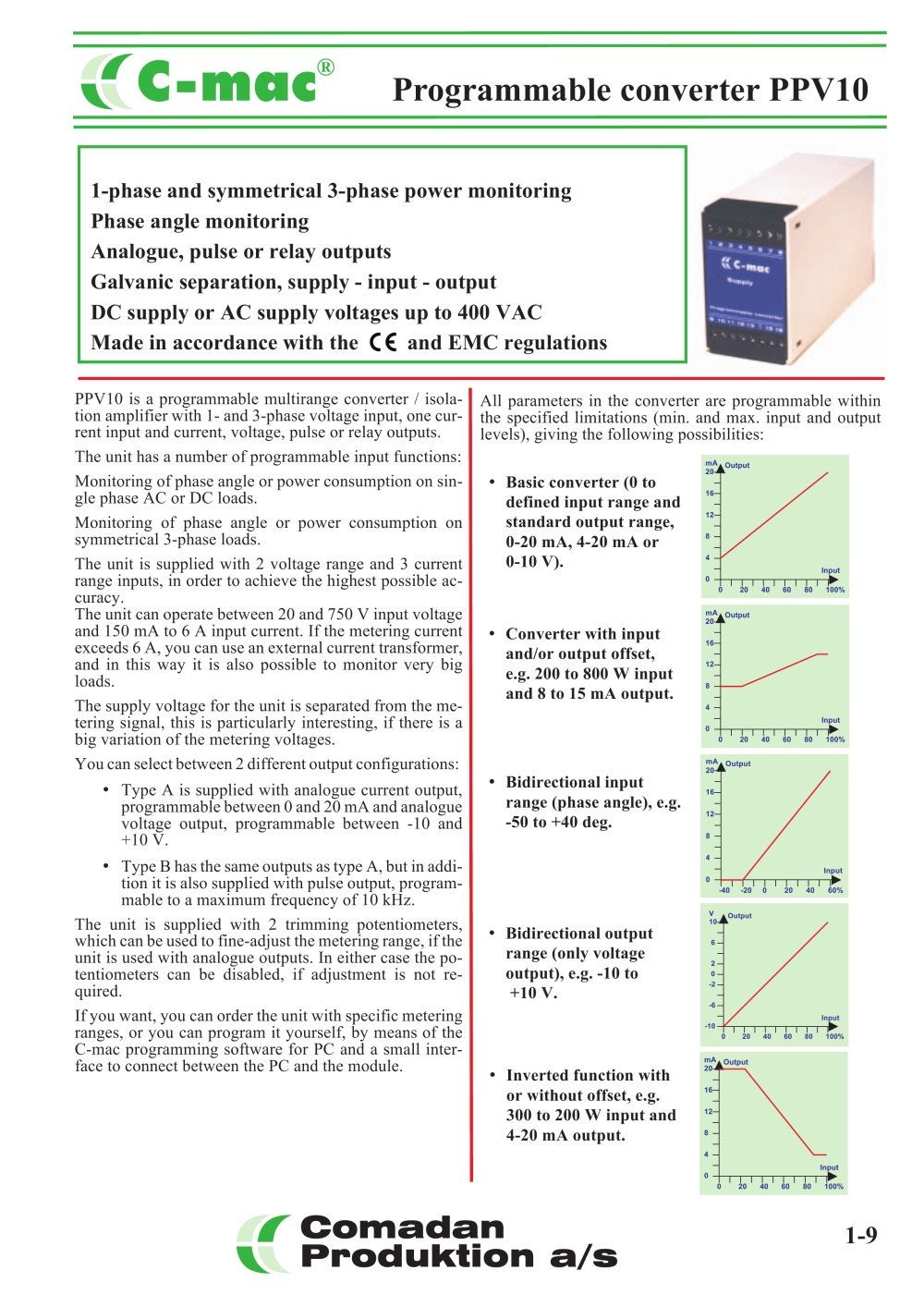

Overview: The document describes the PPV10, a programmable multirange converter and isolation amplifier designed for power monitoring in both single-phase and symmetrical three-phase systems. It supports various input and output configurations, ensuring high accuracy and flexibility in monitoring and control applications.

Specifications:

Input Voltage and Current: Operates between 20 and 750 V input voltage and 150 mA to 6 A input current. External current transformers can be used for higher currents.
Supply Voltage: AC supply up to 400 VAC or DC supply between 12-50 VDC.
Isolation: Galvanic separation between supply, input, and output with isolation voltages of 3.75 kV (supply-internal electronics) and 2.5 kV (input-output).
Outputs: Two types: Type A with analogue current and voltage outputs, and Type B with additional pulse output.

Functional Capabilities:

Phase angle and power consumption monitoring for single-phase AC/DC and symmetrical three-phase loads.
Programmable input functions and output configurations, including analogue, pulse, or relay outputs.
Fine adjustment of metering range using trimming potentiometers, which can be disabled if not needed.

Programming and Adjustments:

Programmable via C-mac software and interface cable, allowing for custom metering ranges and output configurations.
Fine adjustments possible with potentiometers P1 and P2 for offset and span adjustments.
Reset to original settings available through specific switch operations.

Technical Data:

Accuracy: Better than 0.2%, except at 6 A range where it is better than 1%.
Conversion Speed: 300 msec delay.
Environmental Conditions: Operating temperature from -20°C to +60°C, humidity 0-90% RH non-condensing.
EMC Compliance: Meets EN 50 081-1 for emission and EN 50 082-2 for immunity.

Installation and Ordering:

Panel mounting requires a minimum 5 mm space between units.
Ordering involves specifying output configuration and supply voltage, with optional range programming for specific applications.
