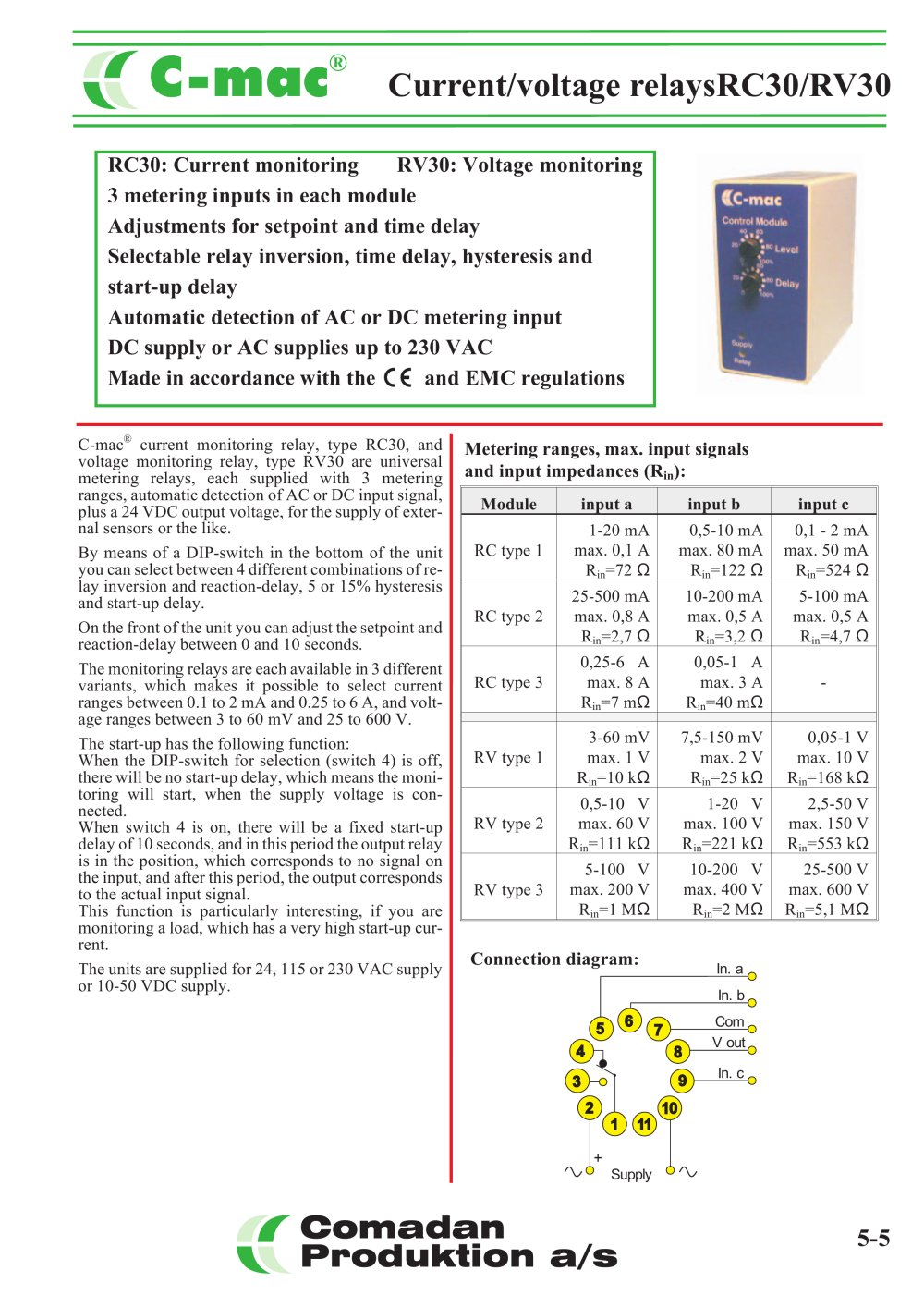

Current/voltage relaysRC30/RV30
Product catalog summary
Overview: The C-mac® RC30 and RV30 are current and voltage monitoring relays designed for universal metering applications. They feature automatic detection of AC or DC input signals and provide a 24 VDC output for external sensors.
Specifications: Both relays offer three metering ranges and are available in variants for different current and voltage ranges. The RC30 covers current ranges from 0.1 mA to 6 A, while the RV30 covers voltage ranges from 3 mV to 500 V. The units support AC supplies of 24, 115, and 230 VAC, and DC supplies from 10 to 50 VDC.
Functional Features: The relays include a DIP-switch for selecting relay inversion, reaction delay, hysteresis (5% or 15%), and start-up delay (0 or 10 seconds). The setpoint and reaction delay can be adjusted between 0 and 10 seconds using front panel controls.
Technical Data: The relays operate within a temperature range of -20°C to +60°C and a humidity range of 0-90% RH. They have an isolation voltage of 3.75 kV and a power consumption of 3 VA. Indications are provided by green and red LEDs for supply and relay status.
Compliance and Safety: The units comply with EMC regulations (EN 50 081-1 and EN 50 082-2) and safety standards (EN 60 730). They are CE approved and meet low voltage regulations.
Ordering Information: The RC30 and RV30 can be ordered with different supply types and metering ranges, specified by a type number and range code.
Materials and Dimensions: The housing is made of self-extinguishing NORYL-SE-1 material. The units weigh 190 g and have dimensions of 74 mm x 38 mm x 76 mm.
