1RT200, Perry multifunction timer
1 / 2 PagesView full catalog
1RT200, Perry multifunction timer
Product catalog summary

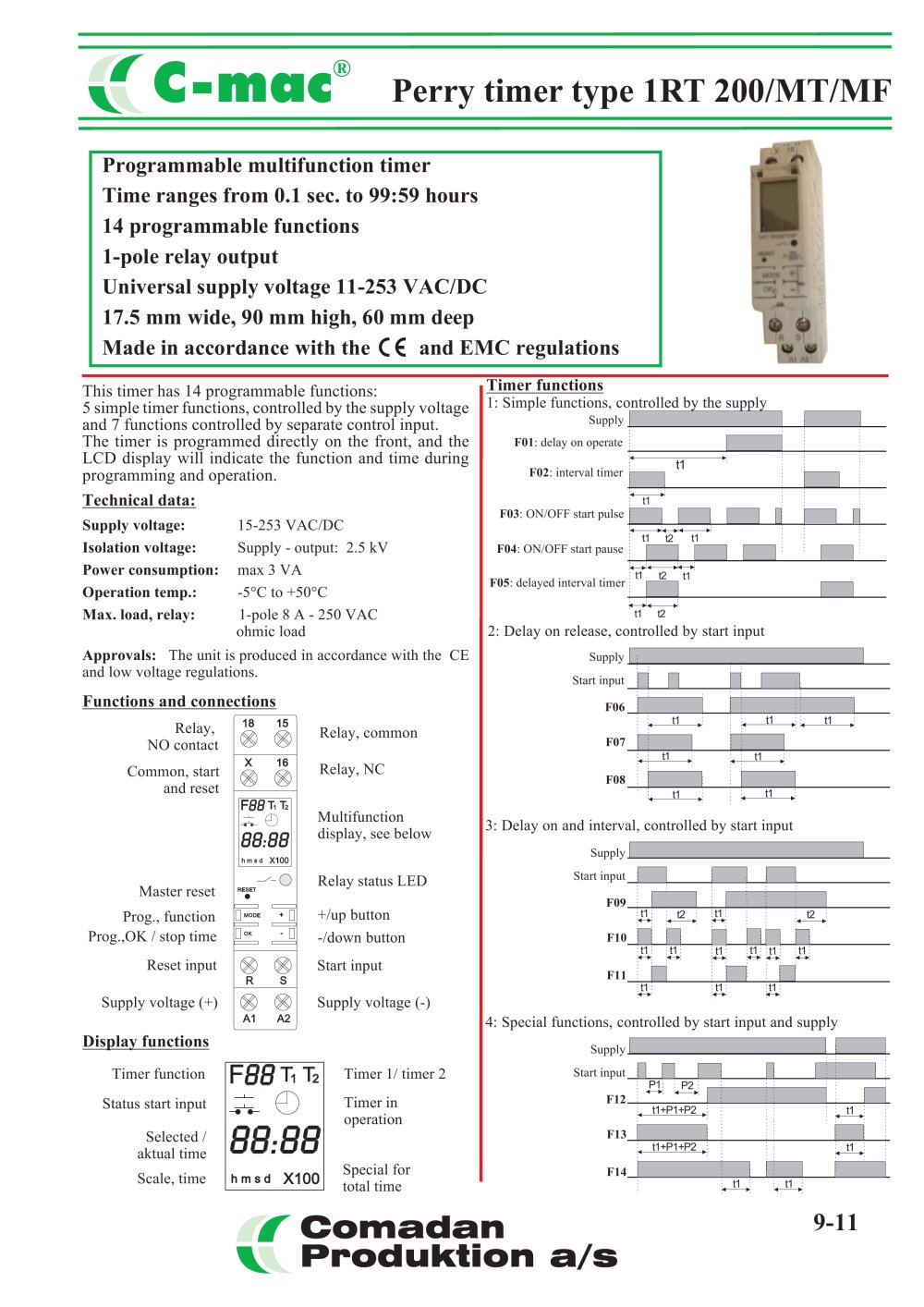

Overview: The C-mac Perry Timer Type 1RT 200/MT/MF is a programmable multifunction timer designed for a wide range of applications. It features 14 programmable functions and a universal supply voltage range of 11-253 VAC/DC. The device is compact, measuring 17.5 mm wide, 90 mm high, and 60 mm deep, and is compliant with CE and EMC regulations.
Specifications:
- Time Ranges: 0.1 sec to 99:59 hours
- Relay Output: 1-pole, 8 A - 250 VAC ohmic load
- Supply Voltage: 15-253 VAC/DC
- Isolation Voltage: 2.5 kV
- Power Consumption: Max 3 VA
- Operating Temperature: -5°C to +50°C
Functions: The timer offers 14 programmable functions, including 5 simple timer functions controlled by supply voltage and 7 functions controlled by a separate control input. Functions are programmed directly on the front panel, with an LCD display indicating the function and time during programming and operation.
Programming: The timer is programmed by selecting the desired function using the + and - buttons, confirmed by pressing the OK button. Timing ranges can be adjusted using the MODE button, with options for hours, minutes, seconds, and tenths of seconds. The programming process involves setting T1 and, if applicable, T2 times.
Operation: During normal operation, the display shows the current function number, start input status, and selected time range and value for timer 1. If both T1 and T2 are used, the display alternates between their values every 5 seconds. When activated, the function number flashes, and the display shows the remaining time.
Additional Features:
- Total Counter: Indicates the total hours the relay has been activated, accessible by holding the OK button for 5 seconds.
- Reset Functions: Includes a master reset for the internal processor and a reset for the hours counter.
Connection Diagram: The document provides a connection diagram for proper installation and operation.
