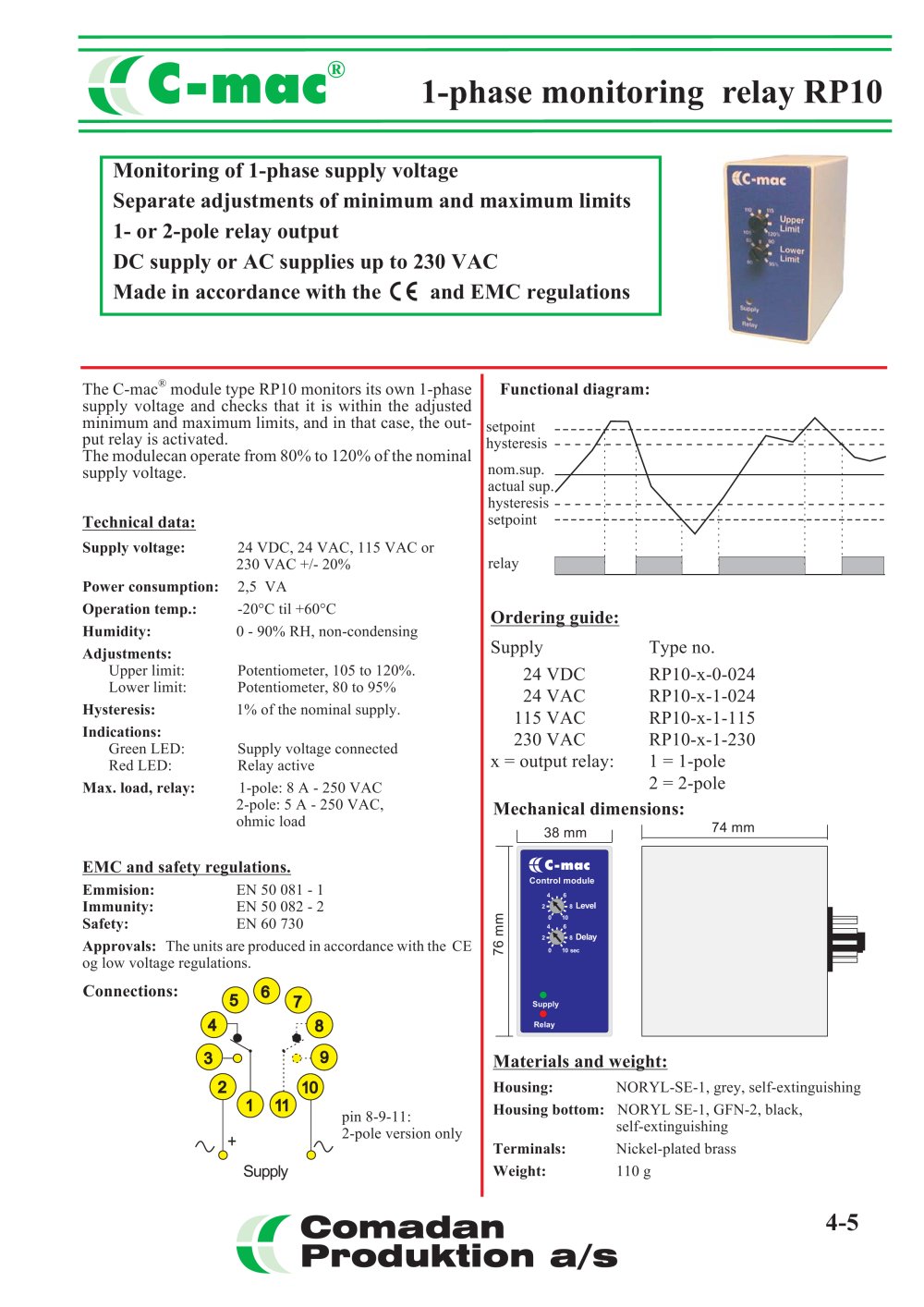

1-phase monitoring relay RP10P2
Product catalog summary
Overview:
The C-mac® module type RP10 is a 1-phase supply voltage monitoring relay designed to ensure the voltage remains within specified limits. It features separate adjustments for minimum and maximum voltage limits and offers a 1- or 2-pole relay output. The module is compatible with DC supply or AC supplies up to 230 VAC and complies with EMC regulations.
Specifications:
Adjustments:
Indications:
Relay Load Capacity:
Compliance:
Connections:
Specific pin connections are provided for the 2-pole version.
Ordering Guide:
Materials and Weight:
Mechanical Dimensions:
The module has dimensions of 74 mm x 38 mm x 76 mm.
The C-mac® module type RP10 is a 1-phase supply voltage monitoring relay designed to ensure the voltage remains within specified limits. It features separate adjustments for minimum and maximum voltage limits and offers a 1- or 2-pole relay output. The module is compatible with DC supply or AC supplies up to 230 VAC and complies with EMC regulations.
Specifications:
- Supply Voltage: 24 VDC, 24 VAC, 115 VAC, or 230 VAC with a tolerance of +/- 20%.
- Power Consumption: 2.5 VA.
- Operating Temperature: -20°C to +60°C.
- Humidity: 0 - 90% RH, non-condensing.
Adjustments:
- Upper Limit: Adjustable via potentiometer from 105% to 120%.
- Lower Limit: Adjustable via potentiometer from 80% to 95%.
- Hysteresis: 1% of the nominal supply.
Indications:
- Green LED: Indicates supply voltage is connected.
- Red LED: Indicates relay is active.
Relay Load Capacity:
- 1-pole: 8 A at 250 VAC.
- 2-pole: 5 A at 250 VAC, ohmic load.
Compliance:
- Emission: EN 50 081 - 1.
- Immunity: EN 50 082 - 2.
- Safety: EN 60 730.
- Approvals: CE and low voltage regulations compliant.
Connections:
Specific pin connections are provided for the 2-pole version.
Ordering Guide:
- 24 VDC: RP10-x-0-024
- 24 VAC: RP10-x-1-024
- 115 VAC: RP10-x-1-115
- 230 VAC: RP10-x-1-230
- x = output relay: 1 = 1-pole, 2 = 2-pole
Materials and Weight:
- Housing: NORYL-SE-1, grey, self-extinguishing.
- Housing Bottom: NORYL SE-1, GFN-2, black, self-extinguishing.
- Terminals: Nickel-plated brass.
- Weight: 110 g.
Mechanical Dimensions:
The module has dimensions of 74 mm x 38 mm x 76 mm.
