COMBIMAC

COMBIMAC
1 / 36 PagesView full catalog

COMBIMAC

Product catalog summary
Overview: The document provides a comprehensive description of the Combimac cleaning machine, emphasizing its dual functionality as a sweeper and scrubber, designed to enhance cleaning efficiency and productivity. It highlights the machine's advanced features, safety measures, and technological innovations aimed at improving efficiency, safety, and sustainability in cleaning operations.
Key Features:
  • Dual Functionality: Combimac integrates sweeping and scrubbing capabilities, suitable for large areas between 20,000 to 60,000 sqm.
  • Efficiency and Sustainability: Optimizes water, detergent, and energy use, reducing environmental impact and operational costs.
  • Advanced Sweeping System: Includes two side brushes and two counter-rotating cylindrical brushes for effective debris collection.
  • High-Performance Scrubbing System: Features four disc brushes and a double suction motor for uniform washing and drying.
  • Large Capacity: Equipped with a 300-litre waste container and hydraulic discharge system.
Technical Specifications:
  • Sweeping Track: 1980 mm
  • Waste Container Capacity: 300 litres
  • Discharge Height: 1650 mm
  • Cleaning Path: 1300 mm
  • Brush Pressure: Adjustable up to 150 Kg
  • Solution and Recovery Tank Capacity: 300 litres
  • Working Speed: Up to 8 Km/h
Safety and Ergonomics:
  • Equipped with LED lights, rear camera kit, and safety spotlight for enhanced visibility and safety.
  • Features ergonomic design with a raised driving position for better visibility and control.
Power Options:
  • Available with high-capacity lead-acid or lithium batteries.
  • Electric motors provide efficient, emission-free operation.
Technological Innovations:
  • CSF Technology: Ensures even distribution of cleaning solution.
  • CDS Dosing System: Regulates water and detergent, reducing waste by up to 50%.
  • Pressure Monitoring: Adjusts motor power for maximum cleaning efficiency.
  • IPM Technology: Monitors brush pressure for effective cleaning.
  • Stop&Go System: Automatically stops functions during breaks.
Safety Features:
  • Emergency Stop: Easily accessible button to halt all functions.
  • Rear View Camera: Enhances safety during reversing.
  • LED Lighting: Improves visibility and safety.
  • Blue Safety Spotlight: Projects a light on the floor to signal the machine's approach.
Operational Modes:
  • Working Program Selector: Adapts to different cleaning needs with ECO, STANDARD, and PLUS programs.
Fleet Management:
  • Comac Fleet Care (CFC): Provides real-time monitoring and management of machines.
  • Telemetry and Reporting: Offers insights into machine status and usage.
Sustainability:
  • ReWater Technology: Recycles wash water, reducing resource consumption.
Maintenance: Designed for easy maintenance with features like fast filling systems and tool-free brush removal.
Specifications: The machines have a minimum autonomy of 3.5 hours and a theoretical autonomy of 6 hours, with a sound pressure level of less than 70 dB(A).
Safety and Comfort Features: Includes an emergency stop, automatic parking brake, anti-skid wheels, and an anti-collision system. Comfort features include an adjustable seat with armrests and headrest, a touch screen display, and on-board video tutorials.
Maintenance and Accessibility: Features courtesy lights for maintenance visibility, rear access for easy component reach, and a color-coded system for maintenance elements.
Optional Accessories: Includes the Comac Dosing System (CDS), Comac Fleet Care (CFC), spray and suction tools, and a courtesy lights package.
Certifications: Comac S.p.A. is certified under ISO 9001, ISO 14001, ISO 45001, SA 8000, and ISO 14064-1 standards.
See more

Catalog excerpts

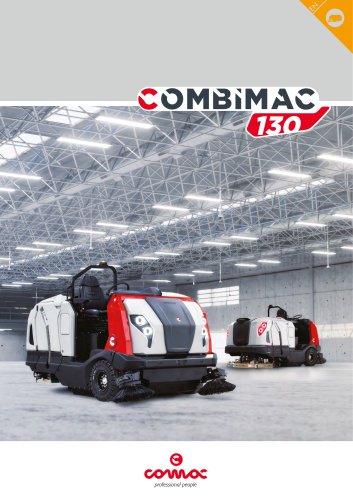

COMBIMAC-1

professional people

 Open the catalog to page 1
COMBIMAC-2

Combimac: all your cleaning needs in one combination machine A robust sweeper and a high-performance floor scrubber, integrated into a single machine to simplify processes, reduce time and double productivity. This is Combimac: the Comac combination machine that brings together the most advanced technologies for industrial cleaning on a single frame, combining the effectiveness of the sweeper and the power of the floor scrubber in a single compact, efficient and intuitive solution. Thanks to its robust structure, performance-oriented design and ability to work on large surfaces continuously,...

 Open the catalog to page 2
COMBIMAC-3

One combination machine for many sectors Large-scale retailing Combimac is designed to meet the cleaning needs of very different environments, thanks to its ability to sweep and wash surfaces ranging from 20,000 to 60,000 sqm in a single pass. Robust, reliable and performing, it is ideal for tackling even the most stubborn dirt in complex contexts such as industrial, logistics, transport or fruit and vegetable markets and large car parks. At the same time, its versatility makes it perfect even for environments where dirt is lighter but the surfaces to be cleaned are very extensive, such as in...

 Open the catalog to page 3
COMBIMAC-4

Two machines in one, three tangible advantages: less time, lower costs, less waste With Combimac you get the efficiency of a sweeper and the effectiveness of a floor scrubber, in a single combined machine. The result? More operational speed, fewer resources used and a faster return on investment.

 Open the catalog to page 4
COMBIMAC-5

Reduction of operating times With a single passing, Combimac performs two distinct operations: sweeping and washing simultaneously. This results in a significant reduction in operating times, especially on large surfaces, with a direct increase in daily productivity. Cost optimization The use of a single combined machine allows to drastically reduce the costs related to the purchase, management, maintenance and labour compared to the separate use of a sweeper and a scrubber. Less means, less machine downtime, less training for personnel. Less waste, more efficiency There is much more to Combimac...

 Open the catalog to page 5
COMBIMAC-6

One machine, endless solutions Combimac comes with a separate double action system consisting of a sweeping system of a sweeper and a washing base of a floor scrubber. This allows to have a single machine for sweeping and washing floors in a single pass, simplifying cleaning operations and improving operational efficiency. Patented system: Combimac features an exclusive patented layout that positions the scrubbing unit after the drive wheel. This configuration ensures the wheel always operates on a dry surface, delivering greater traction, stability and operating continuity. TWICE MORE EFFICIENT,...

 Open the catalog to page 6
COMBIMAC-7

Superior performance, without flap Thanks to its configuration with two counter-rotating cylindrical brushes, Combimac does not require the traditional front flap-lifting mechanism. This innovative solution allows the machine to easily collect even bulky debris, avoiding interruptions in the collection flow and ensuring a greater loading capacity compared to conventional systems. Combimac's sweeping system is that of a powerful sweeper equipped with two side brushes that convey dirt and solid debris into the central part of the machine. From here, they are collected thanks to the central sweeping...

 Open the catalog to page 7
COMBIMAC-8

A powerful sweeper Combimac does not simply integrate a sweeping function: it is a true sweeper, designed to deal with even the most stubborn dirt. Each component of the sweeping system is designed to guarantee high performance, robustness and versatility in any operating context. 300 LITRES waste container discharge height sweeping track

 Open the catalog to page 8
COMBIMAC-9

Cloth bag filter Combimac comes with a cloth pocket filter with an 10 sqm filtering surface, designed to effectively retain large amounts of dust and ensure constant suction even during intense work cycles. Electric filter shaker It automatically removes dust from the filter, keeps suction performance consistent, and reduces the need for manual cleaning. Cartridge filter Combimac can be equipped with a kit consisting of three cartridge filters with a total filtering surface of 15 sqm, designed to ensure effective collection of fine dust and consistently uniform suction. Easy to clean and replace,...

 Open the catalog to page 9
COMBIMAC-10

Large capacity, maximum efficiency Combimac comes with a 300 litres waste container, with a capacity above the category average, designed to guarantee a high collection range even in the most demanding conditions. More available volume means less interruptions for emptying, greater operational continuity and more fluid and efficient work management, especially on large and dirt-intensive surfaces.

 Open the catalog to page 10
COMBIMAC-11

Greater operational capacity With a capacity of 300 litres, the Combimac dumpster is among the largest in its category. This allows to work on large surfaces without frequent interruptions, increasing productivity and reducing downtime. Less emptying, greater continuity By reducing the number of stops for unloading, Combimac simplifies the entire cleaning cycle, making it smoother and more efficient. Fewer interruptions mean less stress for the operator and more predictable work times. Discharge at height with hydraulic system The lifting and discharge system is hydraulic, designed to offer maximum...

 Open the catalog to page 11
COMBIMAC-12

A high-performance floor scrubber Combimac does not simply add a washing function: it is a true industrial floor scrubber, designed to offer effective results even on stubborn dirt and complicated surfaces. Each component of the washing system is designed to guarantee efficiency, resistance and impeccable drying right from the first step. Solution tank and recovery tank Brush pressure adjustable up to 150 Kg Squeegee for perfect drying Made of robust steel, the Combimac squeegee has been designed to accurately follow the movements of the machine, ensuring uniform drying even when cornering. Its...

 Open the catalog to page 12
COMBIMAC-13

Double suction motor The suction system of the washing part of Combimac comes with two motors designed to ensure effective and uniform drying. Powerful and reliable, they ensure complete drying of liquids even during intense work cycles. Precision cleaning in every detail To ensure perfect results in every corner, Combimac can be equipped with the Spray Tool and Suction Tool kit. The spray gun allows to distribute the cleaning solution even in the most difficult to reach areas, such as corners or cracks, while the extendible suction lance immediately collects dirt and water, leaving the floor...

 Open the catalog to page 13
