Universal testing machine 700 series
2Pages

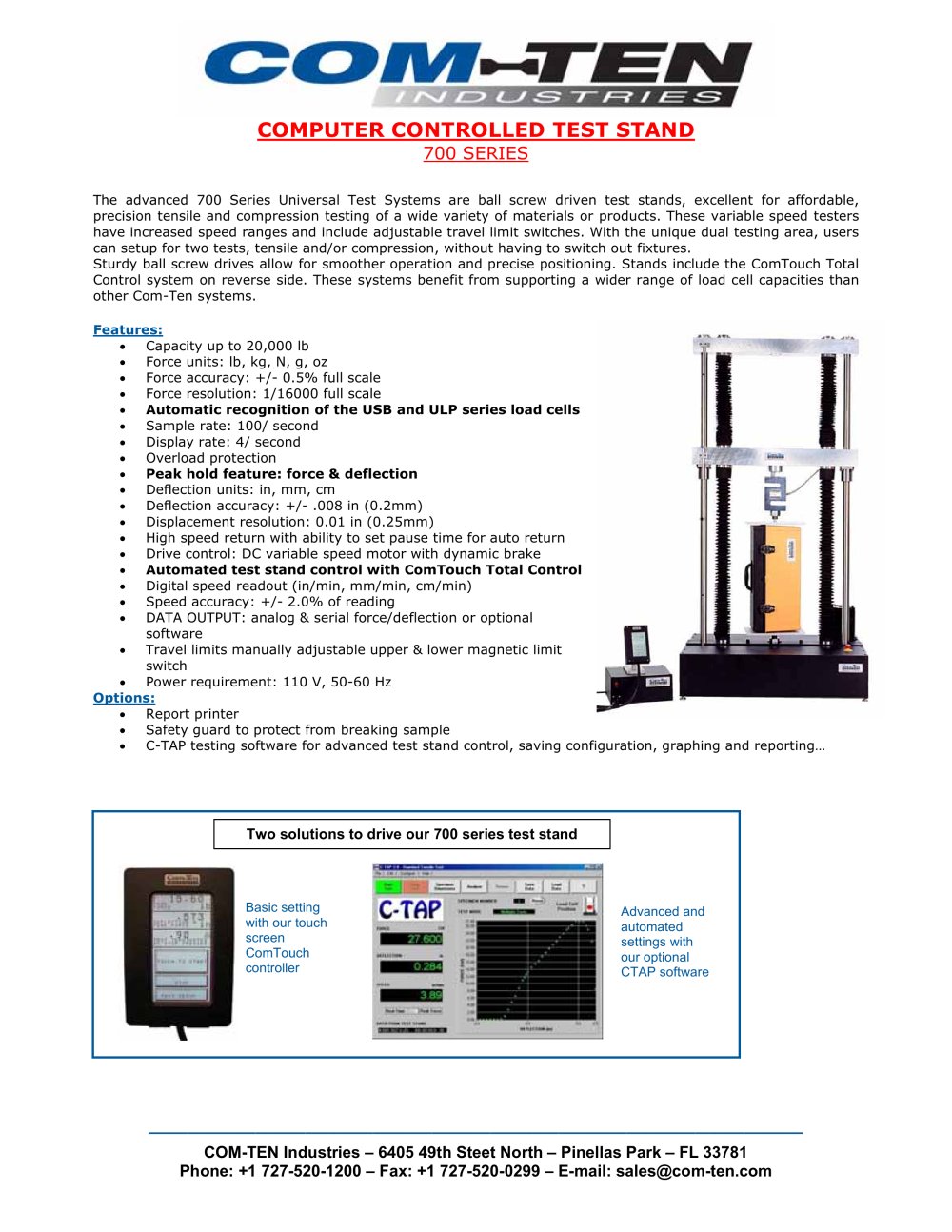

___________________________________________________________________ COM-TEN Industries – 6405 49th Steet North – Pinellas Park – FL 33781 Phone: +1 727-520-1200 – Fax: +1 727-520-0299 – E-mail: sales@com-ten.com COMPUTER CONTROLLED TEST STAND 700 SERIES The advanced 700 Series Universal Test Systems are ball screw driven test stands, excellent for affordable, precision tensile and compression testing of a wide variety of materials or products. These variable speed testers have increased speed ranges and include adjustable travel limit switches. With the unique dual testing area, users can setup for two tests, tensile and/or compression, without having to switch out fixtures. Sturdy ball screw drives allow for smoother operation and precise positioning. Stands include the ComTouch Total Control system on reverse side. These systems benefit from supporting a wider range of load cell capacities than other Com-Ten systems. Features: • Capacity up to 20,000 lb • Force units: lb, kg, N, g, oz • Force accuracy: +/- 0.5% full scale • Force resolution: 1/16000 full scale • Automatic recognition of the USB and ULP series load cells • Sample rate: 100/ second • Display rate: 4/ second • Overload protection • Peak hold feature: force & deflection • Deflection units: in, mm, cm • Deflection accuracy: +/- .008 in (0.2mm) • Displacement resolution: 0.01 in (0.25mm) • High speed return with ability to set pause time for auto return • Drive control: DC variable speed motor with dynamic brake • Automated test stand control with ComTouch Total Control • Digital speed readout (in/min, mm/min, cm/min) • Speed accuracy: +/- 2.0% of reading • DATA OUTPUT: analog & serial force/deflection or optional software • Travel limits manually adjustable upper & lower magnetic limit switch • Power requirement: 110 V, 50-60 Hz Options: • Report printer • Safety guard to protect from breaking sample • C-TAP testing software for advanced test stand control, saving configuration, graphing and reporting… Basic setting with our touch screen ComTouch controller Advanced and automated settings with our optional CTAP software Two solutions to drive our 700 series test stand

___________________________________________________________________ COM-TEN Industries – 6405 49th Steet North – Pinellas Park – FL 33781 Phone: +1 727-520-1200 – Fax: +1 727-520-0299 – E-mail: sales@com-ten.com Build your own: 1. Before building your own 700 test system, you need to determinate the following parameters: • Minimum and maximum force to measure • Range of speed • Size of the sample and elongation 2. Then choose from the chart below the frame which is corresponding to your tests. 3. Add the load cells you need to keep the accuracy required for all the range of tests you have....
