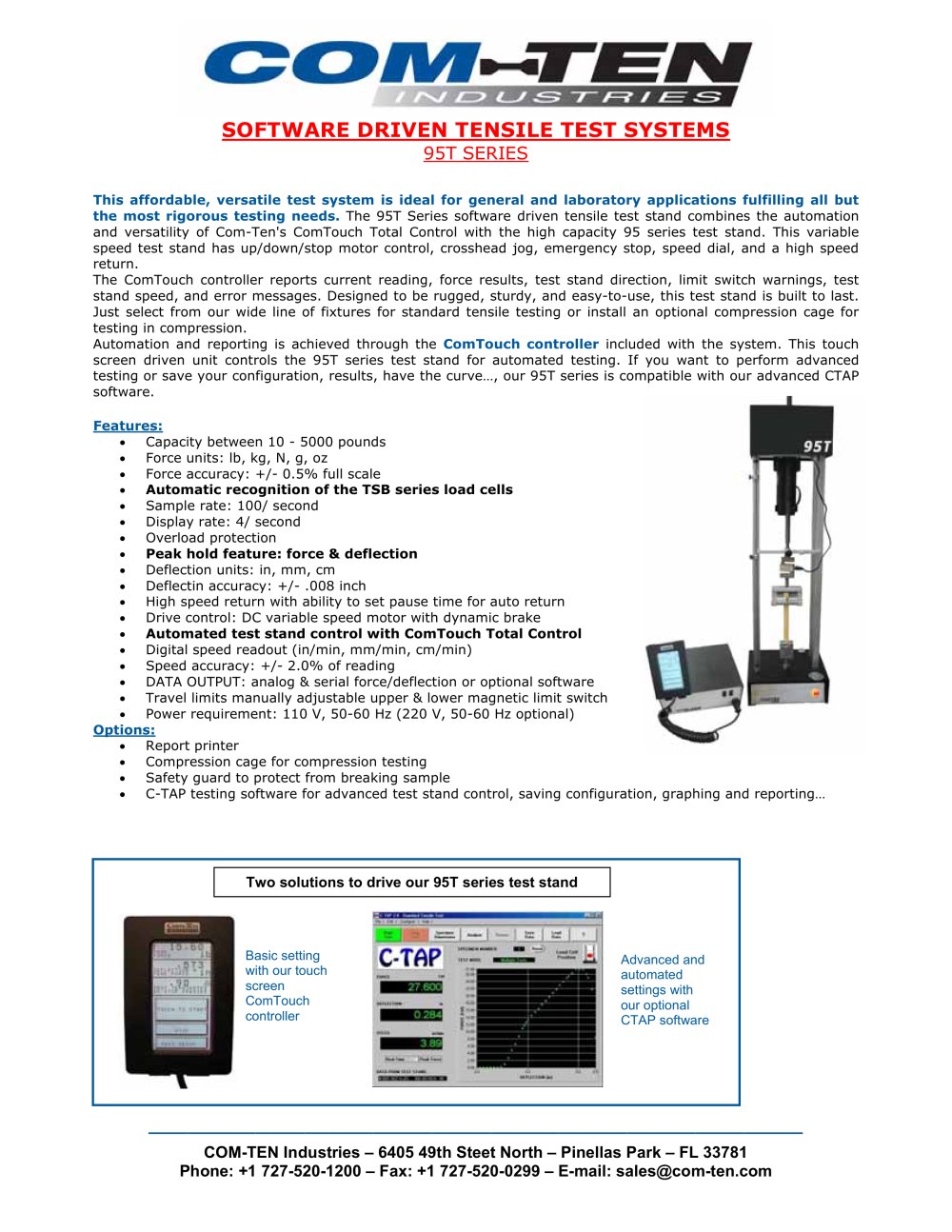

___________________________________________________________________ COM-TEN Industries – 6405 49th Steet North – Pinellas Park – FL 33781 Phone: +1 727-520-1200 – Fax: +1 727-520-0299 – E-mail: sales@com-ten.com SOFTWARE DRIVEN TENSILE TEST SYSTEMS 95T SERIES This affordable, versatile test system is ideal for general and laboratory applications fulfilling all but the most rigorous testing needs. The 95T Series software driven tensile test stand combines the automation and versatility of Com-Ten's ComTouch Total Control with the high capacity 95 series test stand. This variable speed test stand has up/down/stop motor control, crosshead jog, emergency stop, speed dial, and a high speed return. The ComTouch controller reports current reading, force results, test stand direction, limit switch warnings, test stand speed, and error messages. Designed to be rugged, sturdy, and easy-to-use, this test stand is built to last. Just select from our wide line of fixtures for standard tensile testing or install an optional compression cage for testing in compression. Automation and reporting is achieved through the ComTouch controller included with the system. This touch screen driven unit controls the 95T series test stand for automated testing. If you want to perform advanced testing or save your configuration, results, have the curve…, our 95T series is compatible with our advanced CTAP software. Features: • Capacity between 10 - 5000 pounds • Force units: lb, kg, N, g, oz • Force accuracy: +/- 0.5% full scale • Automatic recognition of the TSB series load cells • Sample rate: 100/ second • Display rate: 4/ second • Overload protection • Peak hold feature: force & deflection • Deflection units: in, mm, cm • Deflectin accuracy: +/- .008 inch • High speed return with ability to set pause time for auto return • Drive control: DC variable speed motor with dynamic brake • Automated test stand control with ComTouch Total Control • Digital speed readout (in/min, mm/min, cm/min) • Speed accuracy: +/- 2.0% of reading • DATA OUTPUT: analog & serial force/deflection or optional software • Travel limits manually adjustable upper & lower magnetic limit switch • Power requirement: 110 V, 50-60 Hz (220 V, 50-60 Hz optional) Options: • Report printer • Compression cage for compression testing • Safety guard to protect from breaking sample • C-TAP testing software for advanced test stand control, saving configuration, graphing and reporting… Basic setting with our touch screen ComTouch controller Advanced and automated settings with our optional CTAP software Two solutions to drive our 95T series test stand

___________________________________________________________________ COM-TEN Industries – 6405 49th Steet North – Pinellas Park – FL 33781 Phone: +1 727-520-1200 – Fax: +1 727-520-0299 – E-mail: sales@com-ten.com Build your own: 1. Before building your own 95T test system, you need to determinate the following parameters: • Minimum and maximum force to measure • Range of speed • Size of the sample and elongation 2. Then choose from the chart below the frame which is corresponding to your tests. Available capacities, speeds and dimensions for 95T series Test stand capacity Test stand speed...
