Catalog pull tester
14Pages

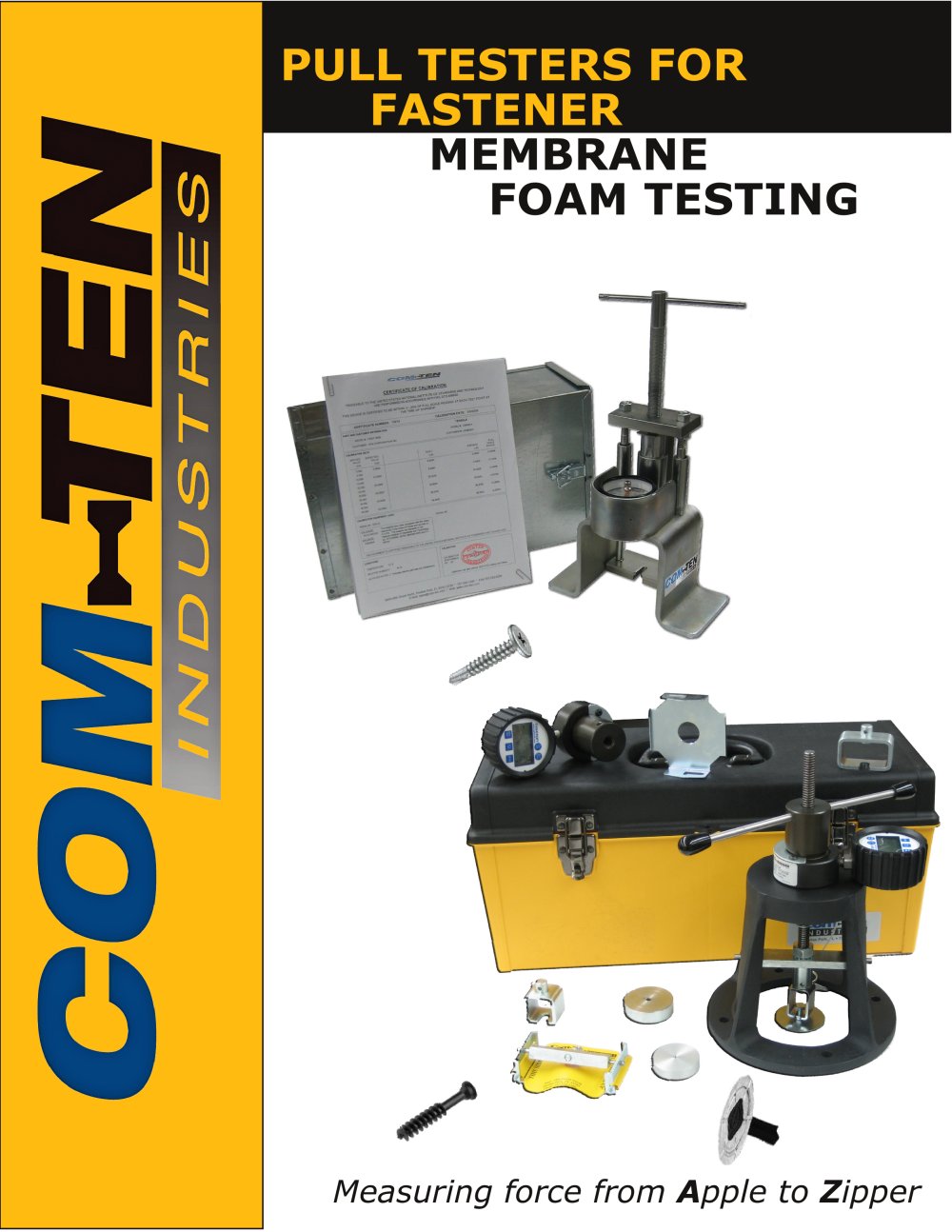

PULL TESTERS FOR FASTENER MEMBRANE FOAM TESTING Measuring force from Apple to Zipper

The ROOFIRST is a simple and yet complete unit: - Accuracy: 50 lb - Resolution: 25 lb - Fastener diameter up to 1/2" - Large 2-1/2" diameter dial includes maximum reading pointer - Gauge positioned on tester for easy visibility by operator - Comes in its own metal carrying case for good protection - Delivered with a certificate of calibration in 5 points traceable to NIST - Zinc plated for corrosion protection - Weight: 9.5 lb Our ROOFIRST can be used to test the following fasteners: - Plastic fasteners - Use with tectum and gypsum type fasteners. Also can be used with larger diameter...

The Extractor fastener tester is an essential tool in building industries, where it is important to validate and check for faulty fixing anchors on both new and old construction. This dedicated kit comes with a full range of accessories: - A Pull tester (with its calibrated gauge 1000lb or 2000lb, analog or digital) - Lifter foot for standard roofing screw LFS0250 (shank: 1/4” – Head: 5/8”) The Fixuroof portable pull-tester is an accurate unit, designed for testing on the field the pull-out force for base ply fastener. Easily determine whether the mechanical fastener provides sufficient...

The Tile uplift portable tester is an accurate unit, designed for testing the pulling force of installed roof tiles. Easily perform your quality test with our full equipped Tile tester and prevent from loose tiles. The Tile Tester is specially designed for the following domains: - Measure the withdraw load to validate a safe installation of tiles - Test the uplift strength of in place roofing tiles This dedicated kit comes with a full range of accessories: - A Force gauge (Capacity 100lb) - Handle - Chain - Tile Lifter foot TLF1120 A tensile load is applied to the fixing mechanically using...

The Extractor fastener tester is an essential tool in building industries, where it is important to validate and check for faulty fixing anchors on both new and old construction. This dedicated kit comes with a full range of accessories: - A Pull tester (with its calibrated gauge 1000lb or 2000lb, analog or digital) - Lifter foot for standard roofing screw LFS0250 (shank: 1/4” – Head: 5/8”) This EXTRACTOR 4000 is designed to test heavy duty anchors with a load up to 4000lb. It comes with: - A Pull tester (with its calibrated gauge 4000lb, analog or digital) - Lifter foot for standard...

The Safor portable tester is an accurate unit, designed for testing the pulling force of fixings prior to being put into service. Easily prevent accidents by testing on site the fixings to install end brackets and safety harness eyebolts. The Safor tester is specially designed for the following domains: - Testing of safety anchorages and Ringbolts - Proof the installation of fall arrest eyebolts & single point anchors. This dedicated kit comes with a full range of accessories: - A Pull tester (with its calibrated gauge 2000lb, analog or digital) - Ringbolt adaptor clevis - Lifter foot for...

This ADHOR R kit comes with a full range of accessories: - A Pull tester (with its calibrated gauge 400lb, 1000lb or 2000lb, analog or digital) - Lifter foot to attached discs LFS0250 - Two reusable 2.25" adhesion discs LFM225R - Two reusable 4" adhesion discs LFM400R The ADHOR kit comes with a full range of accessories: - A Pull tester (with its calibrated gauge 400lb, 1000lb or 2000lb, analog or digital) - Lifter foot to attached discs LFS0250 - Pack of 10 disposable 2.25" adhesion discs LFM225D Com-Ten is an instigator in the validation of installation of insulation membrane, with the...

The UPLIFT portable tester was designed in conjunction with SPRI, for testing on the field the uplift resistance of adhesion. Easily test the attachment of the tile to underlayment and determine whether the uplift resistance performance meets the minimum wind load requirements. The Uplift portable tester is specially designed for the following domains: - Test the floor tiles installed on balconies - Check the adhesion of the roof covering - Proof the good installation of the waterproofing membranes - Perform a bonded pull test This dedicated kit comes with a full range of accessories: - A...

Foam Tester is an essential tool in roofing industries, where it is important to validate and obtain accurate stengths of polyurethane foam, and check for improperly installed foam. The Foam Tester is specially designed for the following domains: - Test the compressive yield strength of the foam - Validate the quality of SPF This dedicated kit comes with a full range of accessories: - A Pull tester (with its calibrated gauge 400lb, analog or digital) - Foam compression fixture The Deluxe Foam Tester kit includes the foam core cutter, an indispensable tool to cut your sample to the right...

Specially designed foam core cutter to cut foam samples with an area of 4in² (2.25in diameter). It makes the things easy and quick when it is time to take a sample of the foam. The foam sample is positioned in between two compression platens. The compression fixture is attached to a standard pull-out tester. A direct compression load is applied to the foam sample using the hand crank of the pull-out tester. The compressive force is displayed and registered on the readout gauge. FOAM CORE CUTTER HOW IT WORKS Visit our website www.pull-test.com to view our animations and choose the right...

• 8 capacities from 100 pounds to 4000 pounds with a typical power stroke of 3 inches. • Hydraulic rotary piston gauge cell coupled to a bourdon tube gauge providing excellent accuracy and repeatability. • Grade B gauge is accurate to 2% full scale in the middle 50% of range, 3% full scale in upper and lower 25%. • Calibrated & certified traceable to NIST standards and comes complete with certificate of calibration. • Analog gauge has figure intervals every 10% and minor graduation at 1% in pounds or kilograms. • Maximum pointer provides peak hold attained until it is reset. • Lightweight...
