Basic tensile tester 95F series
2Pages

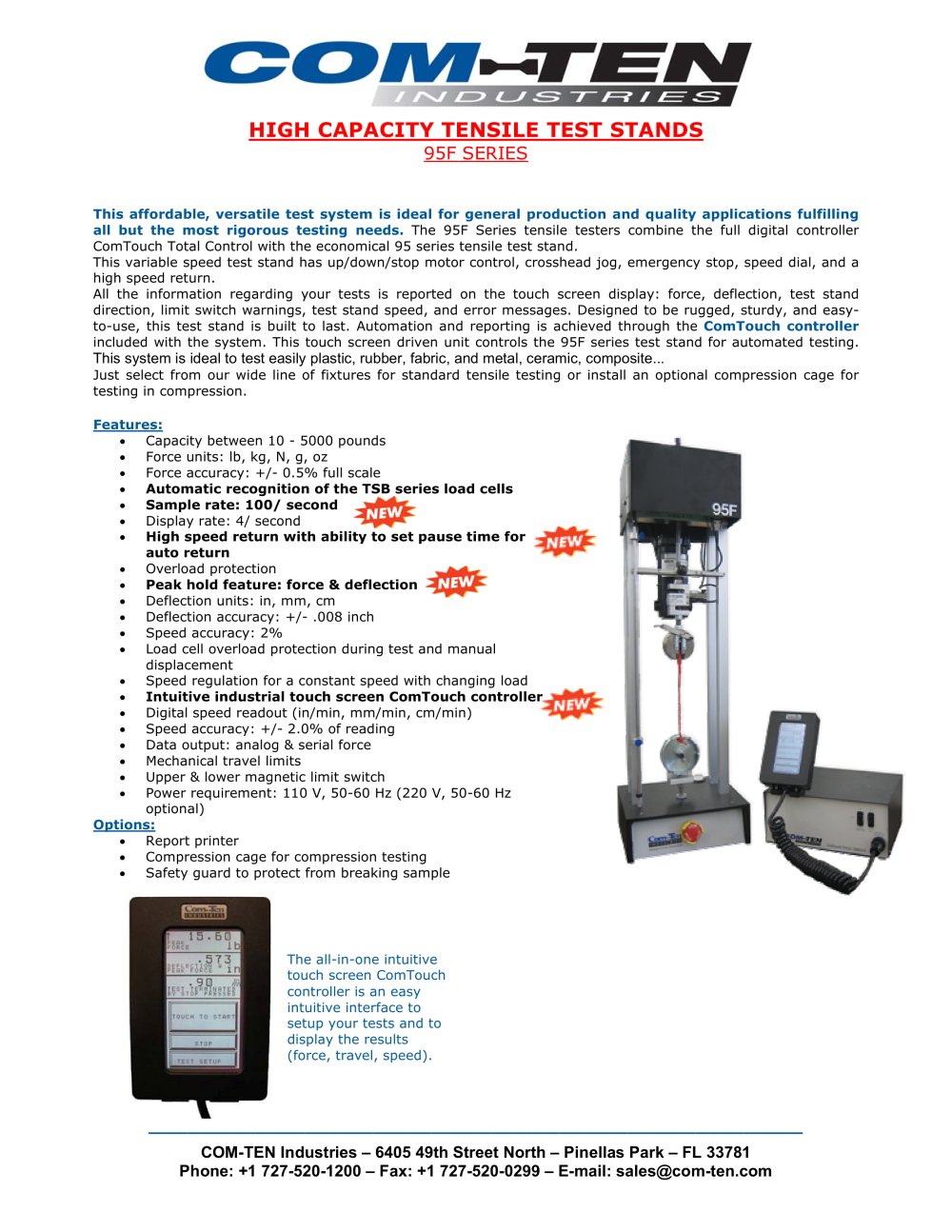

___________________________________________________________________ COM-TEN Industries – 6405 49th Street North – Pinellas Park – FL 33781 Phone: +1 727-520-1200 – Fax: +1 727-520-0299 – E-mail: sales@com-ten.com HIGH CAPACITY TENSILE TEST STANDS 95F SERIES This affordable, versatile test system is ideal for general production and quality applications fulfilling all but the most rigorous testing needs. The 95F Series tensile testers combine the full digital controller ComTouch Total Control with the economical 95 series tensile test stand. This variable speed test stand has up/down/stop motor control, crosshead jog, emergency stop, speed dial, and a high speed return. All the information regarding your tests is reported on the touch screen display: force, deflection, test stand direction, limit switch warnings, test stand speed, and error messages. Designed to be rugged, sturdy, and easyto- use, this test stand is built to last. Automation and reporting is achieved through the ComTouch controller included with the system. This touch screen driven unit controls the 95F series test stand for automated testing. This system is ideal to test easily plastic, rubber, fabric, and metal, ceramic, composite... Just select from our wide line of fixtures for standard tensile testing or install an optional compression cage for testing in compression. Features: • Capacity between 10 - 5000 pounds • Force units: lb, kg, N, g, oz • Force accuracy: +/- 0.5% full scale • Automatic recognition of the TSB series load cells • Sample rate: 100/ second • Display rate: 4/ second • High speed return with ability to set pause time for auto return • Overload protection • Peak hold feature: force & deflection • Deflection units: in, mm, cm • Deflection accuracy: +/- .008 inch • Speed accuracy: 2% • Load cell overload protection during test and manual displacement • Speed regulation for a constant speed with changing load • Intuitive industrial touch screen ComTouch controller • Digital speed readout (in/min, mm/min, cm/min) • Speed accuracy: +/- 2.0% of reading • Data output: analog & serial force • Mechanical travel limits • Upper & lower magnetic limit switch • Power requirement: 110 V, 50-60 Hz (220 V, 50-60 Hz optional) Options: • Report printer • Compression cage for compression testing • Safety guard to protect from breaking sample The all-in-one intuitive touch screen ComTouch controller is an easy intuitive interface to setup your tests and to display the results (force, travel, speed).

___________________________________________________________________ COM-TEN Industries – 6405 49th Street North – Pinellas Park – FL 33781 Phone: +1 727-520-1200 – Fax: +1 727-520-0299 – E-mail: sales@com-ten.com Build your own: 1. Before building your own 95F test system, you need to determinate the following parameters: • Minimum and maximum force to measure • Range of speed • Size of the sample and elongation 2. Then choose from the chart below the frame which is corresponding to your tests. Available capacities, speeds and dimensions for 95T series Test stand capacity Test stand speed...
