- Single Blow Air Hammer Model 95 Pow-R-Mark Operation Guide
Single Blow Air Hammer Model 95 Pow-R-Mark Operation Guide
1 / 2 PagesView full catalog
Single Blow Air Hammer Model 95 Pow-R-Mark Operation Guide
Product catalog summary
Overview: The document is an operation guide for the Single Blow Air Hammer Model 95 Pow-r-Mark, used for steel stamps, die engraving, and marking machines. It provides detailed specifications, operating instructions, and maintenance guidelines.
Specifications: The Model 95 features different rod styles (A, B, N) and holder models (95NA-50, 95NA-75, 95NB-75, 95NC-50) with varying capacities for character sizes ranging from 1/16 to 1/4 inches. The air hammer is hand-held with a single air port located at the back end.
Operating Instructions: To mark, align the marker at a 90° angle to the surface and actuate the lever. The marker resets instantaneously upon releasing the lever. The device requires a pneumatic power source with a recommended 3/8” minimum shop airline and an FRL unit. Operating pressure ranges from 20 psi to 80 psi.
Adjustments: Mark depth can be regulated by adjusting the FRL unit. Increasing air pressure results in deeper marks, while decreasing it results in lighter marks.
Maintenance: Before maintenance, shut off all air. Regularly add 30W light industrial hydraulic oil to the lubricator bowl and adjust oil flow to one drop per 30-50 cycles. Check and clean the air filter as needed, ensuring no excess water fills the filter bowl.
Recommendations: CMT recommends using a Filter/Regulator/Lubricator unit for optimal performance. If not purchased from CMT, an equivalent unit must be supplied.
Additional Information: The document includes a catalog of round inserts and groove types for different character sizes, specifying their use with A and B style rods.
See more
Catalog excerpts

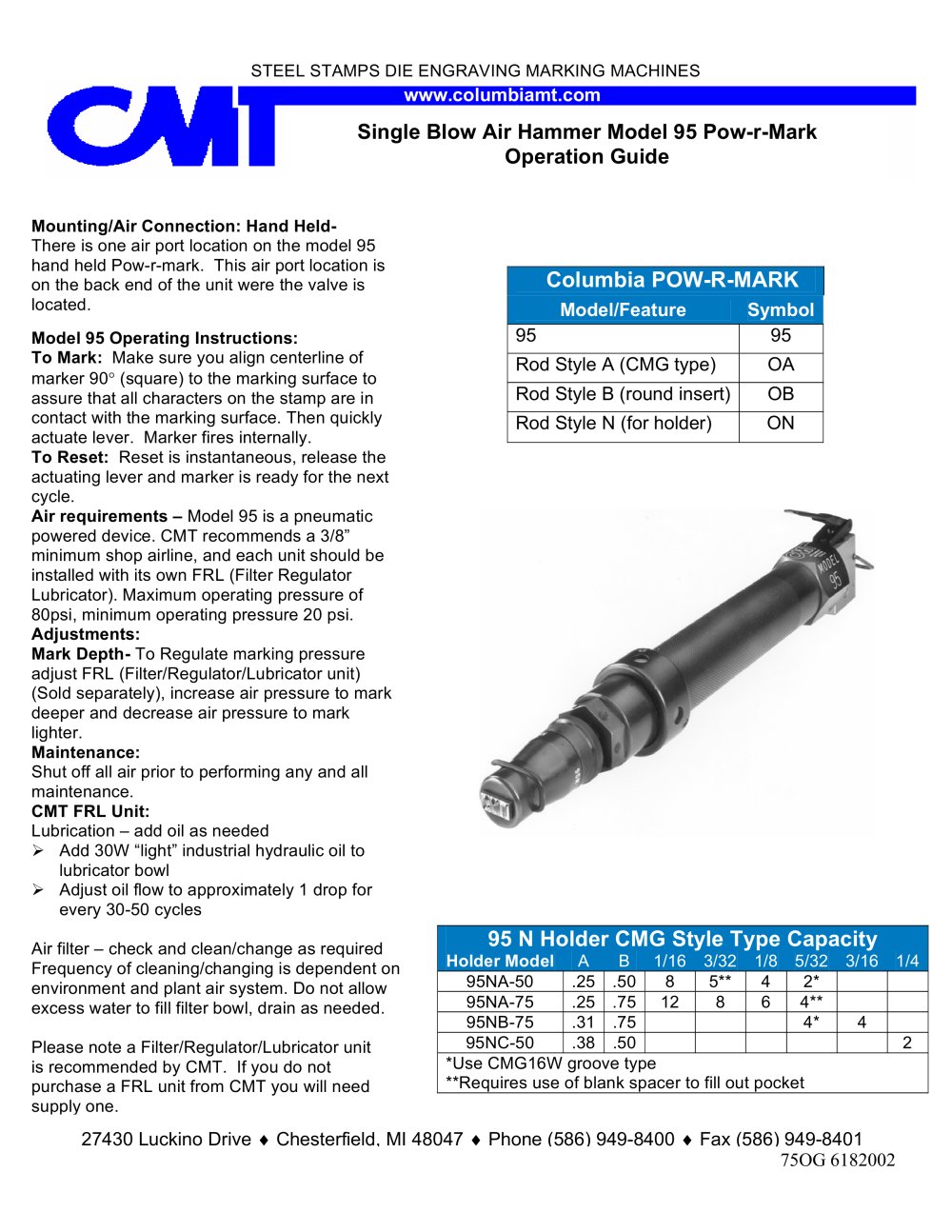

STEEL STAMPS DIE ENGRAVING MARKING MACHINES www.columbiamt.com Single Blow Air Hammer Model 95 Pow-r-Mark Operation Guide CMG Standard Groove Type for use in A style rods STYLE G Groove Type Char A B C Catalog No. Size C 1/32 1/161/47/8 CMG03- 1/16 1/16 1/4 7/8 CMG06- Char. Size A 3/32 3/321/47/8 CMG09- B 1/8 1/8 1/4 7/8 CMG13- 5/32 3/165/167/8 CMG16- CM8X Standard Round Type CM8X Round Insert for use in B style rods Char Size Catalog No. 1/32 CM8X03- Char. Size 1/16 CM8X06- 3/32 CM8X09- 1/8 CM8X13- 5/32 CM8X16- 3/16 CM8X19- 1/4 CM8X25- >
