Model 451 Slide-a-Mark Operation Guide

Model 451 Slide-a-Mark Operation Guide
2Pages

Catalog excerpts

Model 451 Slide-a-Mark Operation Guide - 1

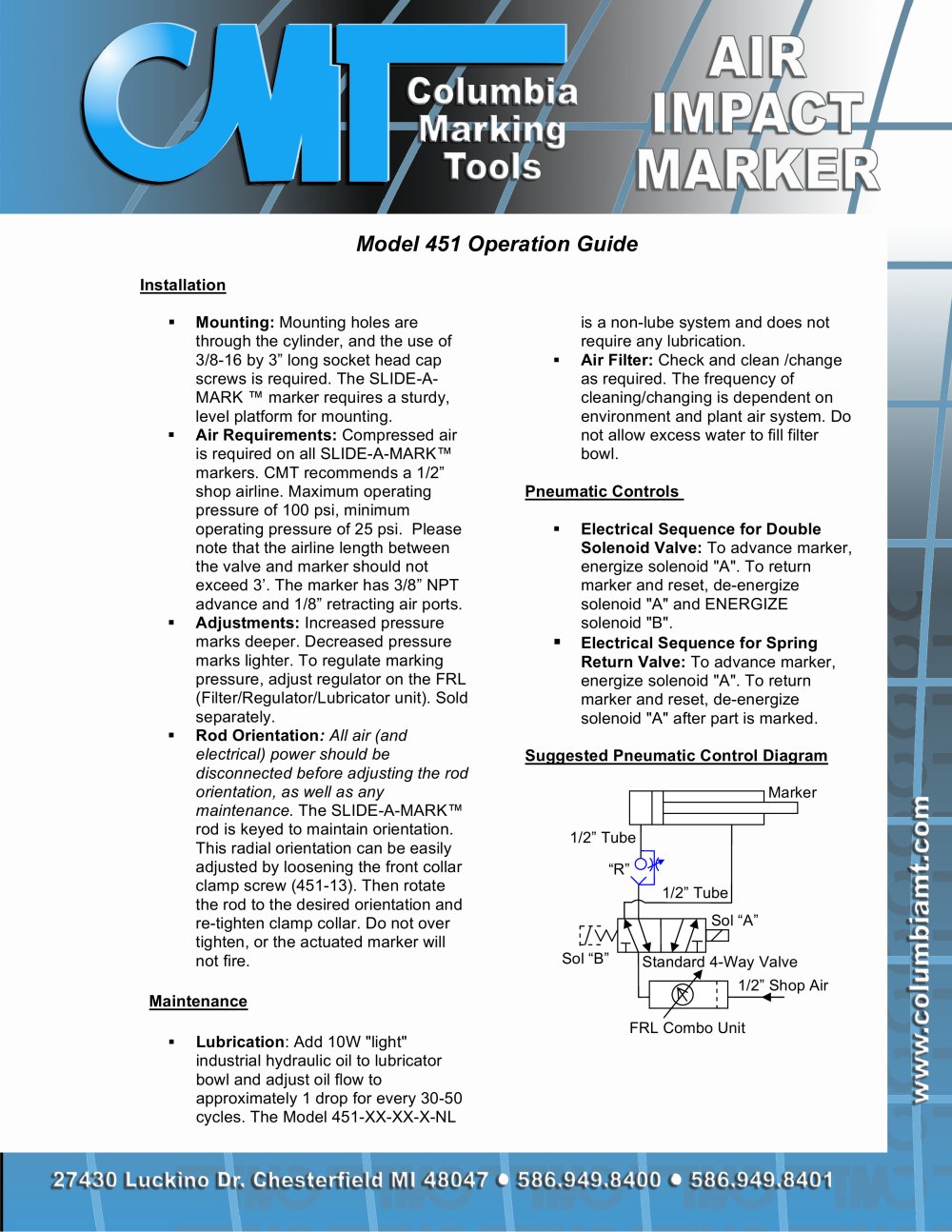

Installation Mounting: Mounting holes are through the cylinder, and the use of 3/8-16 by 3Ô long socket head cap screws is required. The SLIDE-A- MARK marker requires a sturdy, level platform for mounting. ك Air Requirements: Compressed air is required on all SLIDE-A-MARK markers. CMT recommends a 1/2ٔ shop airline. Maximum operating pressure of 100 psi, minimum operating pressure of 25 psi. Please note that the airline length between the valve and marker should not exceed 3. The marker has 3/8Ҕ NPT advance and 1/8 retracting air ports. > ԃ Air Filter: Check and clean /change as required. The frequency of cleaning/changing is dependent on environment and plant air system. Do not allow excess water to fill filter bowl. Adjustments: Increased pressure marks deeper. Decreased pressure marks lighter. To regulate marking pressure, adjust regulator on the FRL (Filter/Regulator/Lubricator unit). Sold separately. Pneumatic Controls Ã Rod Orientation : All air (and electrical) power should be disconnected before adjusting the rod orientation, as well as any maintenance. The SLIDE-A-MARK rod is keyed to maintain orientation. This radial orientation can be easily adjusted by loosening the front collar clamp screw (451-13). Then rotate the rod to the desired orientation and re-tighten clamp collar. Do not over tighten, or the actuated marker will not fire. ك Electrical Sequence for Double Solenoid Valve: Maintenance To advance marker, energize solenoid "A". To return marker and reset, de-energize solenoid "A" and ENERGIZE solenoid "B". > Electrical Sequence for Spring Return Valve: To advance marker, energize solenoid "A". To return marker and reset, de-energize solenoid "A" after part is marked. Suggested Pneumatic Control Diagram > Marker 1/2Ô Tube Sol AӔ RӔ1/2 Shop Air Standard 4-Way Valve Sol ԓB1/2Ԕ Tube FRL Combo Unit Lubrication : Add 10W "light" industrial hydraulic oil to lubricator bowl and adjust oil flow to approximately 1 drop for every 30-50 cycles. The Model 451-XX-XX-X-NL is a non-lube system and does not require any lubrication. >
