ME1000/ME2000 Metal Plate Embosser

Product catalog summary

Overview: The document describes a cost-effective alternative to traditional stamping dies, offering a 25% higher production speed compared to previous models. It features easy manual or automatic loading and unloading with a new 'Single Point Access' manual feed solution.

Key Features:

Near end input and near full output hopper plate sensors for continuous production.
Latest generation electronics with FLASH memory technology accessible via an external service port.
Variable plate size loading system with an optional FIFO elevator stacker or side eject.
Large selection of fonts available for embossing, debossing, or indenting.
Off-line data input option via an external keyboard.
Universal clamp for plates of most shapes and dimensions.
Compatible with various metals including stainless steel, carbon steel, aluminum, copper, and brass.

Applications: Suitable for automotive body and VIN plates, military ID tags, serial number tags, work in progress ID tags, inventory control tags, and tracking tags.

Durability: Described as the most durable metal plate embossing solution for tough working environments.

Technical Specifications:

LCD storable fonts with formatted downloading.
Data format supports 50 fields of 42 characters each.
Proprietary software: SWORD PC Application with capabilities for automatic date field, plate archive, and various file compatibilities.
LCD display for diagnostic visualization with a lithium backup battery.
Security operation with key lock and emergency stop button.

Physical and Electrical Specifications:

Dimensions: 24.75" x 29.25" x 15".
Weight: ME1000 - 167 lbs, ME2000 - 174 lbs.
Communication interface: Serial RS232 port with CIM, Xon-Xoff, and MultiEmbosser protocols.
Input and output hopper capacity: ME1000 manual feeding, ME2000 - 250 plates (0.016") with variable dimensions.
Plate dimensions: Width 1.2" to 4.5", Height 0.826" to 3.5", Thickness 0.016" to 0.035".
Embossing area up to 2.5" from the top edge of the plate.
Electrical requirements: 117v/60hz, Power consumption: 500 Watt.

Catalog excerpts

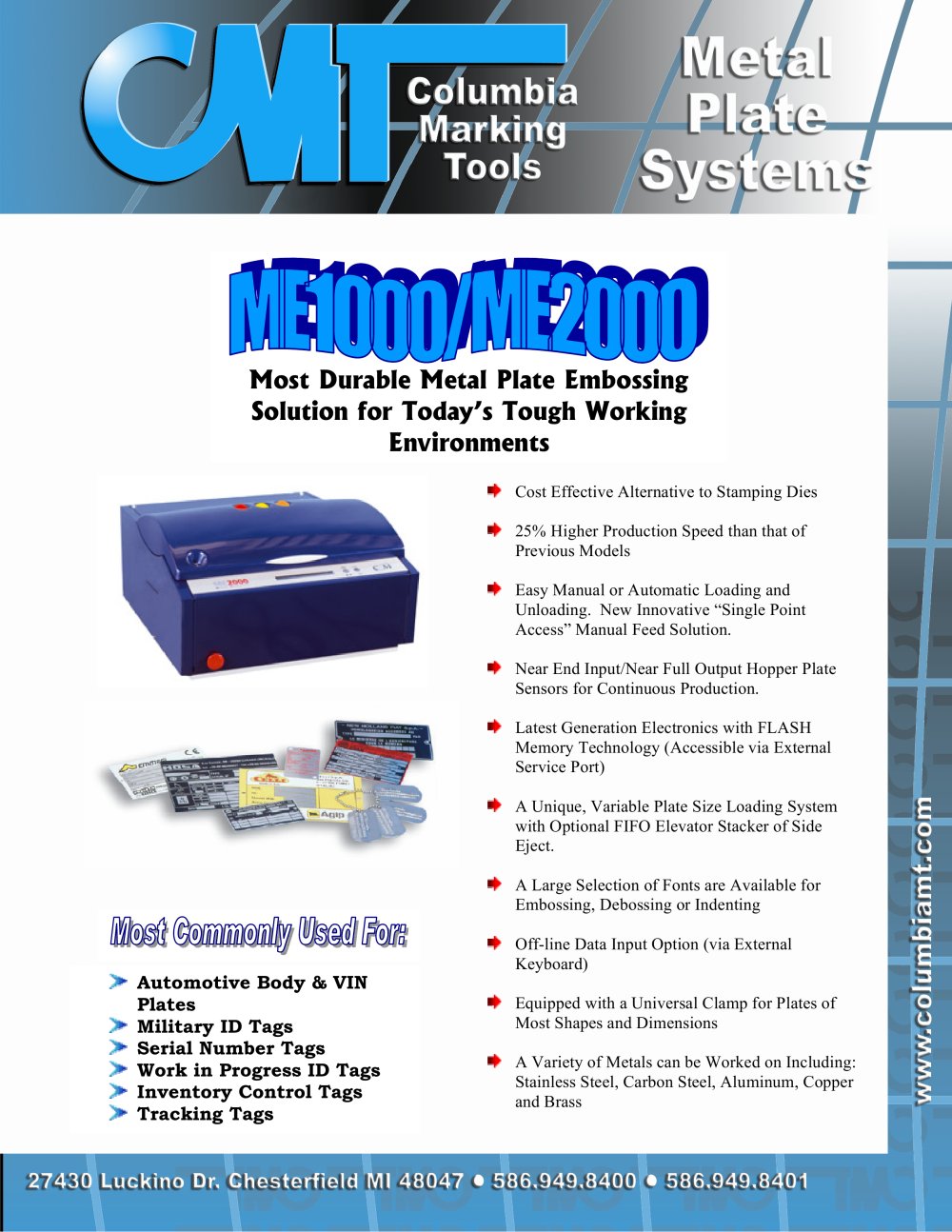

Cost Effective Alternative to Stamping Dies 25% Higher Production Speed than that of Previous Models Easy Manual or Automatic Loading and Unloading. New Innovative ғSingle Point Access Manual Feed Solution. Near End Input/Near Full Output Hopper Plate Sensors for Continuous Production. Latest Generation Electronics with FLASH Memory Technology (Accessible via External Service Port) A Unique, Variable Plate Size Loading System with Optional FIFO Elevator Stacker of Side Eject. A Large Selection of Fonts are Available for Embossing, Debossing or Indenting Off-line Data Input Option (via External Keyboard) > Equipped with a Universal Clamp for Plates of Most Shapes and Dimensions > A Variety of Metals can be Worked on Including: Stainless Steel, Carbon Steel, Aluminum, Copper and Brass >

Open the catalog to page 1

10 with Formatted Downloading ME1000 Manual Feeding ME2000 250 Plates (0.016) Variable Dimensions Data Format: 50 Fields of 42 Characters each (Name, Fixed Data, Counters, Ect.) > ME1000 Manual Feeding ME2000 250 Plates (0.016Ԕ) Variable Dimensions Software: SWORD PC Application Proprietary Software. Automatic Date Field; Plate Archive; DBIII, DVIV, Excel, MS Access File Capability. Self Diagnostic, Automatic Repetition of Faulty Plate Personalization, Clearable and Non-Clearable Counters, Set up Procedures (via External Keyboard). > Width: Minimum 1.2 thru Maximum 4.5Ԕ Height: Minimum 0.826...

Open the catalog to page 2
